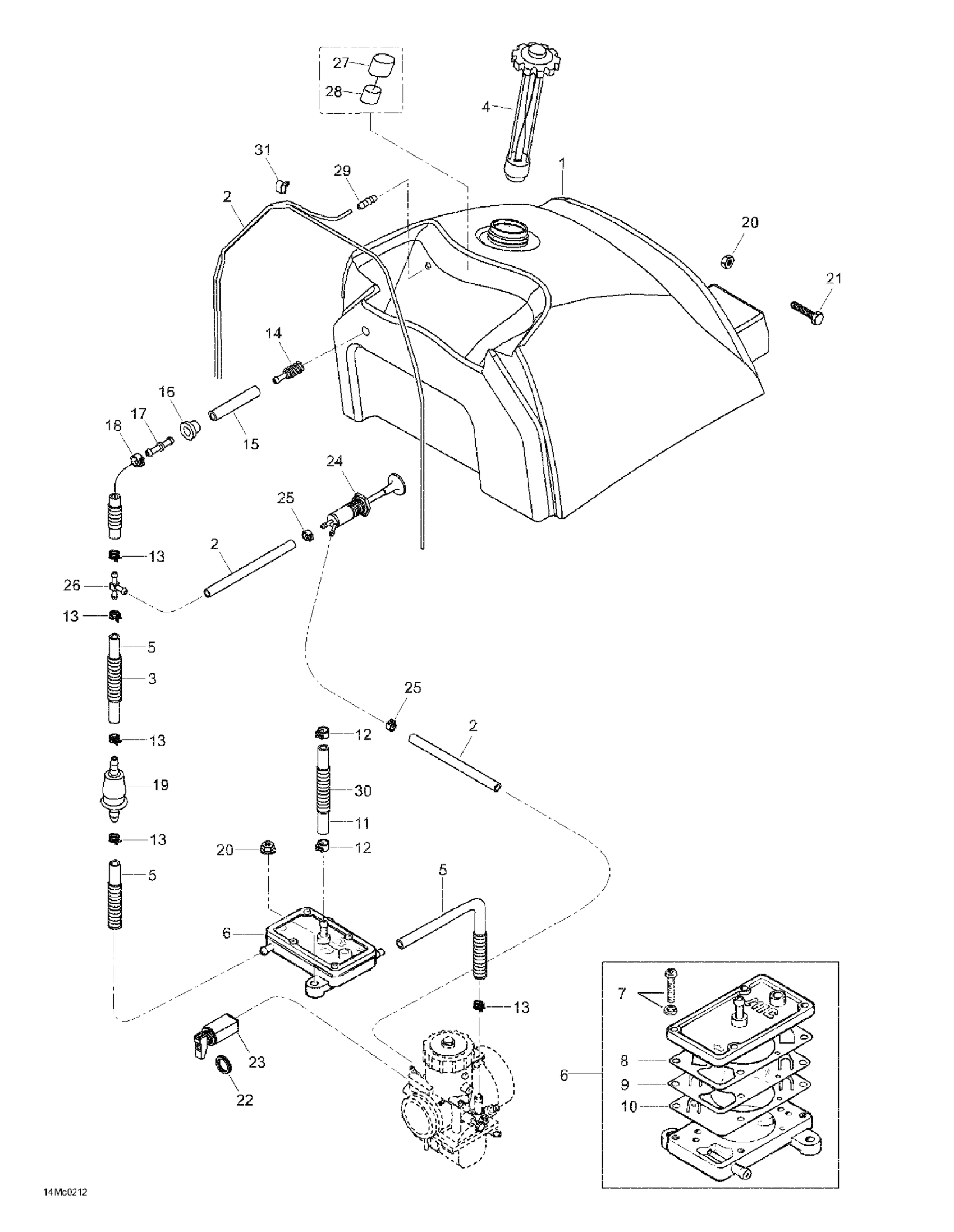

Ski-Doo Skandic 440, 2002 Fuel System Diagram

#

Description
Price

1

Fuel Tank

M5145048

Unavailable

2

HOSE - Call your local BRP dealership

M39035

Unavailable

3

HOUSING - Call your local BRP dealership

M28012

Unavailable

4

Fuel Tank Cap

572161200

$35.79

5

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

6

FUEL PUMP DF44-226A - Call your local BRP dealership

403800800

Unavailable

7

Screw

404118500

Unavailable

8

Packing (Cap)

404901600

Unavailable

9

Diaphragm

404901700

Unavailable

10

Membrane

404901800

Unavailable

11

Polyurethane Hose 10000Mm Long

219704410

$52.96

12

Spring Clamp

414420700

$0.66

13

Spring Clamp

M27086

Unavailable

14

Fuel Filter

414865700

$9.63

15

Hose

M39030

Unavailable

16

Grommet

570045500

$6.13

17

Male Connector

414518500

$4.01

18

Spring Clamp

414554800

$0.81

19

Fuel Filter This part replaces 414363600.

605352516

$17.13

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

21

Hex. Screw

M40826

Unavailable

22

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

23

CABLE-CHOKE - Call your local BRP dealership | Includes 33 to 34

M524046

Unavailable

24

Primer

415060500

$32.06

25

Not Available As Spare Part - Friction Washer

Unavailable

26

T Fitting

M21067

Unavailable

27

Rubber Bumper

M5441703

Unavailable

28

HOLDER - Call your local BRP dealership

M5446811

Unavailable

29

Nipple

404153400

$11.16

30

HOUSING - Call your local BRP dealership

M28015

Unavailable

31

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable
