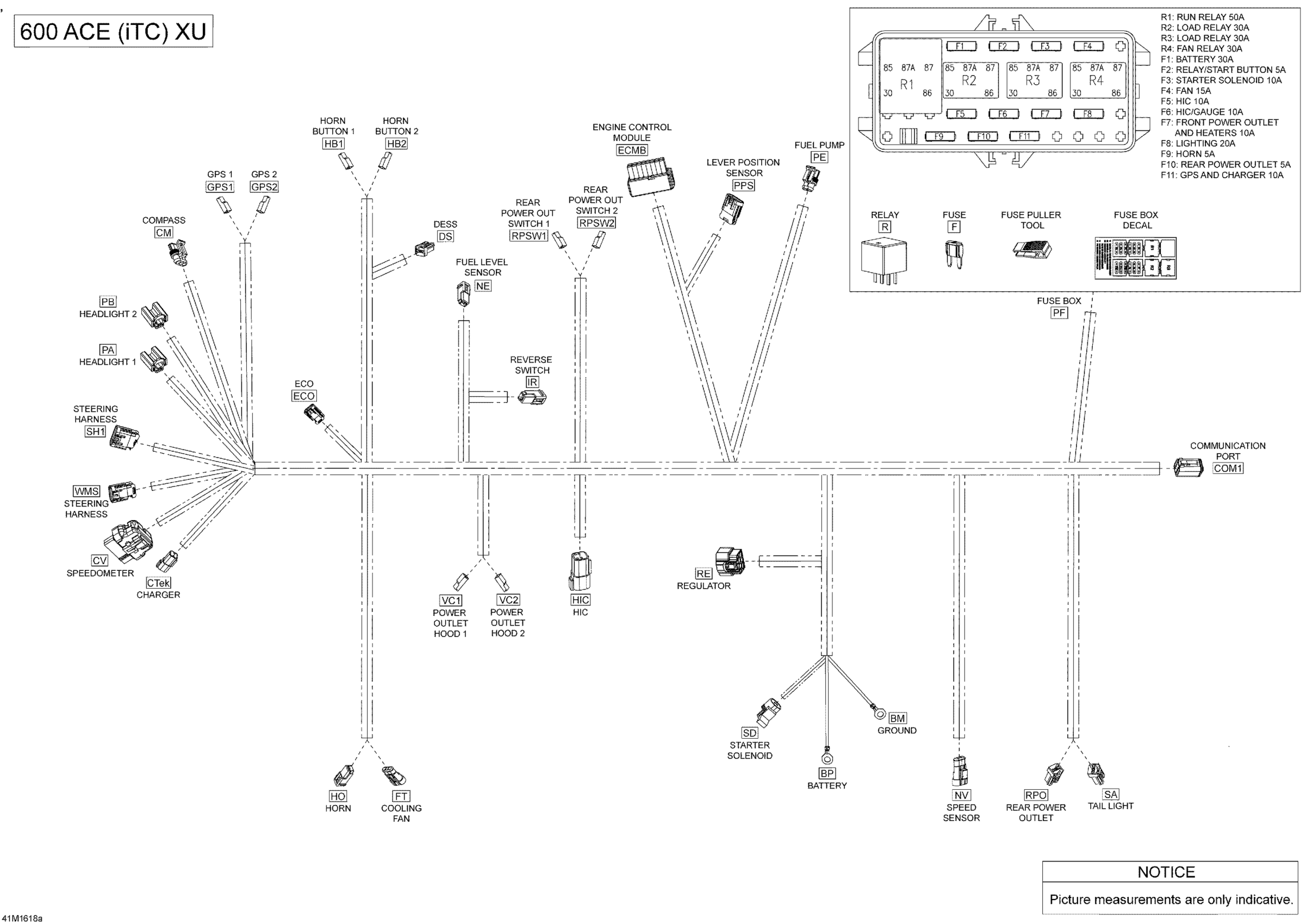

Ski-Doo SKANDIC - 4-STROKE, 2016 Electrical Harness - 600 ACE Diagram

#

Description
Price

1

Main Harness | Includes 1 To WMS

515177940

Unavailable

2

Tubing 6 Mm 3000Mm Long

219704425

$13.14

2

Was 409901700 Tubing (9 mm)

219704399

Unavailable

2

Tubing 10 MM 1000MM Long

219704407

Unavailable

2

Was 409901800 Tubing (13 mm)

219704400

Unavailable

2

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

2

Was 409901600 Tubing 19mm

219704398

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

2

Tubing 25 MM 1000MM Long

219704402

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

BM

Open Barrel

278000992

$1.79

BP

Open Barrel

278000992

$1.79

CM

Female Housing, 3 Circuits

409209600

Unavailable

CM

Female Terminal

278001014

Unavailable

CM

Wire Seal

515176621

Unavailable

CM

Tie Wrap 142 mm

293750002

Unavailable

COM1

Male Housing, 6 Circuits

515175673

$13.05

COM1

Male Wedge, 6 Circuits

515175678

Unavailable

COM1

Female Terminal

278000632

Unavailable

COM1

Sealing Cap

293000052

Unavailable

CTek

Mâle Terminal Housing, 2 Circuits

278001674

$29.97

CTek

Male Lock, 2 Circuits

278001672

$3.02

CTek

Male Terminal

515175568

$7.48

CV

Female Housing, 24 Circuits

515175801

Unavailable

CV

Retainer Block

515175802

Unavailable

CV

Wire Seal

515175803

Unavailable

CV

BLOCK - Call your local BRP dealership

515175804

$6.66

CV

LOCK - Call your local BRP dealership

515175805

$5.74

CV

Female Terminal

515175806

$0.81

CV

Plug

515175812

Unavailable

CV

Female Housing

710000399

Unavailable

DS

Female Housing, 3 Circuits

515175495

$15.35

DS

Female Terminal

515175231

Unavailable

ECMB

Molex Housing, 48 Circuits

710001967

$136.12

ECMB

Cover, 48 positions

710001591

Unavailable

ECMB

Female Terminal

710001589

Unavailable

ECMB

Female Terminal

710001590

Unavailable

ECMB

Plug

710001592

Unavailable

ECMB

Plug

710001593

Unavailable

ECO

Housing

710002593

$9.86

F

Little Fuse, 5 Amperes

710000742

Unavailable

F

Little Fuse, 7.5 Amperes

710000743

$8.02

F

Little Fuse, 10 Amperes

710000744

Unavailable

F

Little Fuse, 15 Ampere

710000745

Unavailable

F

Little Fuse, 20 Amperes

710000746

Unavailable

F

Little Fuse, 30 Amperes

710000747

Unavailable

FT

Female Housing, 2 Circuits

278000217

Unavailable

FT

Male Terminal | XT Models

278000222

$2.55

FT

Male Terminal

409004300

$5.46

FT

Wire Seal

278001065

Unavailable

GPS1

Female Terminal Housing, 1 Circuit

409010400

$7.48

GPS1

Female Terminal

409010100

$5.46

GPS2

Female Terminal Housing, 1 Circuit

409010400

$7.48

GPS2

Female Terminal

409010100

$5.46

HB1

Female Terminal Housing, 1 Circuit

409010400

$7.48

HB1

Female Terminal

409010100

$5.46

HB2

Female Terminal Housing, 1 Circuit

409010400

$7.48

HB2

Female Terminal

409010100

$5.46

HIC

Male Connector, 4 Circuits | CE

278000739

$14.92

HIC

Female Terminal

278000632

Unavailable

HIC

Male Lock, 4 Circuits | CE

278000738

$2.91

HIC

Sealing Cap

293000052

Unavailable

HO

Female Housing, 2 Circuits

515175658

Unavailable

HO

Female Terminal

515175231

Unavailable

IR

Female Terminal Housing, 2 Circuits

515176296

Unavailable

IR

Female Terminal

515175231

Unavailable

NE

Male Terminal Housing, 2 Circuits

515175654

$7.48

NE

Male Terminal

515175232

$1.49

NV

Housing

710000568

Unavailable

NV

Male Terminal

515176164

Unavailable

NV

Clip

710000992

$4.00

NV

Wire Seal

515176621

Unavailable

PA

Female Housing

515176908

$12.05

PA

Terminal

515176909

Unavailable

PB

Female Housing

515176908

$12.05

PB

Terminal

515176909

Unavailable

PE

Housing

710001132

$9.60

PE

Female Terminal

710001134

$6.03

PE

Lock

710001133

$4.12

PE

Seal

710000643

$4.12

PF

Fuse Cover

710001026

$17.52

PF

Fuse Box Base Ass´y

415129856

$41.57

PF

Female Terminal

710000836

$5.46

PF

Female Terminal

710000837

$4.32

PF

Wire Seal

278000999

$2.55

PF

Seal

415128501

Unavailable

PF

Cap

710000840

$5.49

PF

Fuse Puller

710000781

$8.29

PF

Foam

278002172

Unavailable

PF

DECAL, FUSE BOX - Call your local BRP dealership

516006387

Unavailable

PPS

Not Available As Spare Part - Friction Washer

Unavailable

R

Relay, 50 AMP

515176775

$13.86

R

Relay, 30 AMP

515176774

$19.20

RE

Female Housing, 3 Circuits

710000879

Unavailable

RE

Female Terminal

710000877

Unavailable

RE

Cap

710000882

$9.19

RE

Seal

710000881

Unavailable

RPO

Male Housing, 3 Circuits

515175494

$15.35

RPO

Male Terminal

515175232

$1.49

RPSW1

Female Terminal Housing, 1 Circuit

409010400

$7.48

RPSW1

Female Terminal

409010100

$5.46

RPSW2

Female Terminal Housing, 1 Circuit

409010400

$7.48

RPSW2

Female Terminal

409010100

$5.46

SA

Female Housing, 3 Circuits

515175495

$15.35

SA

Female Terminal

515175231

Unavailable

SD

Male Connector, 2 Circuits

278001113

$12.65

SD

Female Terminal

278001114

$2.55

SH1

Housing, Packard

710001929

$10.83

VC1

Female Terminal Housing, 1 Circuit

409010400

$7.48

VC1

Female Terminal

409010100

$5.46

VC2

Female Terminal Housing, 1 Circuit

409010400

$7.48

VC2

Female Terminal

409010100

$5.46

WMS

Housing

710001927

$8.57
