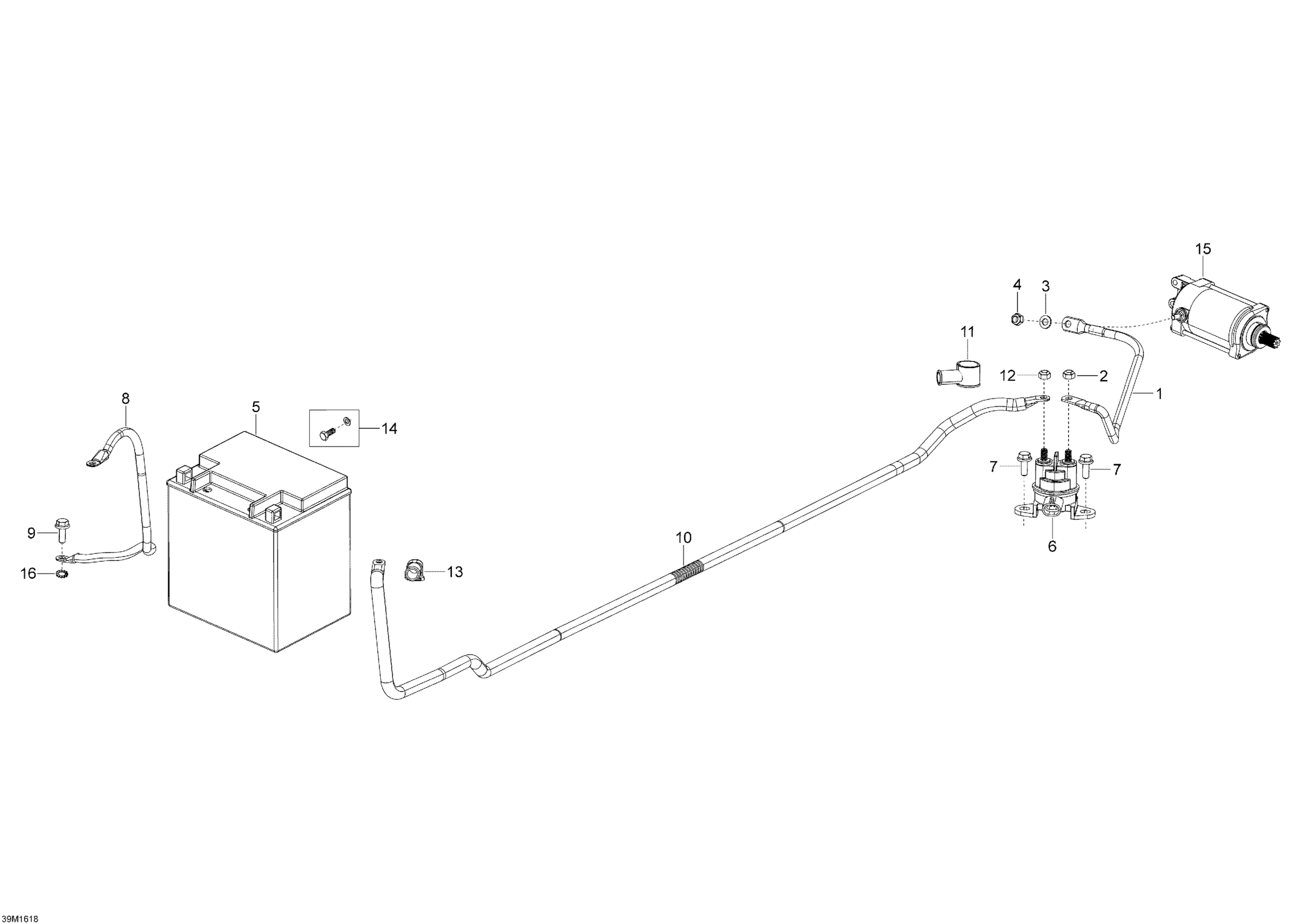

Ski-Doo SKANDIC - 4-STROKE, 2016 Battery And Electric Starter Diagram

#

Description
Price

1

Battery Wire

515176945

$56.89

2

Elastic Stop Nut M6

232561434

$1.55

3

Flat Washer 6 mm

234061410

Unavailable

4

Elastic Stop Nut M6

232561434

$1.55

5

Lead Battery 18 Amperes | Includes 4327 to 4327a

415129898

$134.52

5

Battery | Includes 900 to 900a

515176151

$174.17

6

Starter Relay

278003012

Unavailable

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

8

Ground Wire

515176777

Unavailable

9

Hex. Flange Screw M6 X 16

207661644

Unavailable

10

Battery Wire

515176778

Unavailable

11

Protection Cap

570151000

$18.43

12

Elastic Stop Nut M6

232561434

$1.55

13

Protector Cap

710000495

Unavailable

14

Battery Bolt Kit

250000282

$2.95

15

Electric Starter Ass'y

420892435

$297.99

16

Lock Washer Serrated M6

250200041

Unavailable
