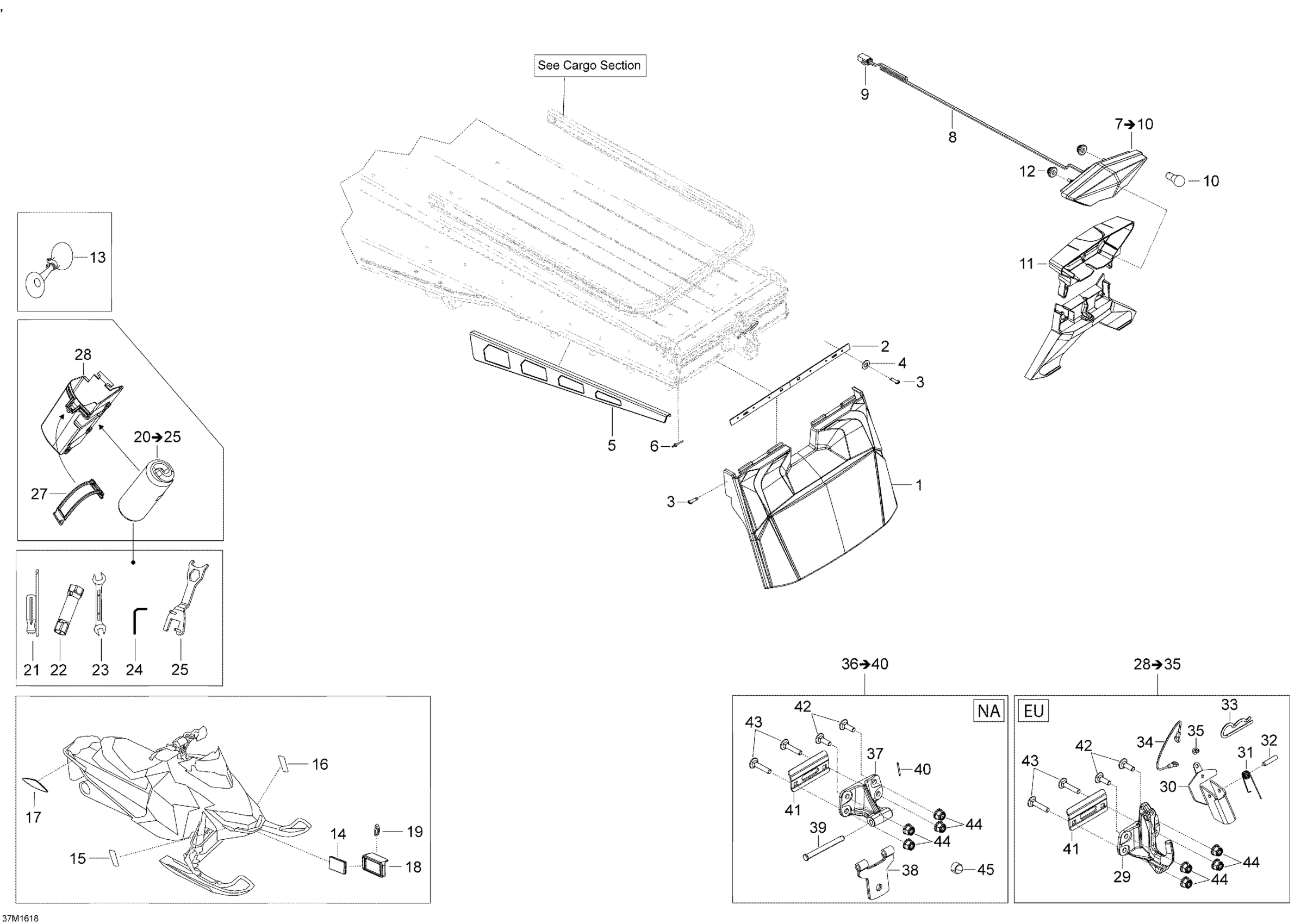

Ski-Doo SKANDIC - 4-STROKE, 2016 Utilities Diagram

#

Description
Price

1

Snow Guard

520001411

Unavailable

1

Black, Snow Guard Short

520001405

Unavailable

1

Black, Snow Guard long

520001409

$81.99

2

Plate

520001021

$34.58

2

Plate

520001022

Unavailable

3

Forming Screw M5 x 16

250000676

$0.83

3

Forming Screw M5 x 16

250000676

$0.83

4

Washer M5

250200025

Unavailable

4

Washer M5

250200025

Unavailable

5

RH Protector

520000693

$53.99

5

LH Protector

520000694

$53.99

6

Rivet Hucklok

293150163

$2.82

7

Rear Light | Includes 200 to 200a

520000848

$96.12

8

Rear Wiring Harness

520000849

Unavailable

9

Male Housing, 3 Circuits

515175494

$15.35

10

Bulb

520000758

$7.49

11

Rear Light Cover

511000764

$36.12

12

Stopper Rubber

705014429

Unavailable

13

Horn

549011291

$35.35

14

Reflector (Bright)

21118

$26.89

15

Yellow, RH Reflector

520001600

$31.51

16

Yellow, LH Reflector

520001601

$31.51

17

Amber, Lateral Reflector

705002423

$13.28

17

Red, Lateral Reflector

705003412

$13.28

18

Deep Black, Reflector Support

520000871

$5.29

19

TIE RAP - Call your local BRP dealership

27120

Unavailable

20

Tools Kit | Includes 1400 to 1400b

520001593

$52.99

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

Set Key, 16/21 mm

529000046

$14.49

23

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

24

Spacing Tool

520001142

$10.99

25

Wrench

520001442

Unavailable

26

Tool Kit Rack

520000894

$14.99

27

Latch

520000528

$6.60

28

Hitch Ass'y | Includes 3600 to 3600f

520001774

$61.99

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Pin

41012

$5.22

33

Hair pin

41029

$4.28

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Avex Rivet

390909100

$0.29

36

Hitch Ass'y | Includes 3600 to 3600a

520001398

$71.51

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

PIN-RETAINER - Call your local BRP dealership | North America

560309200

Unavailable

40

Cotter Pin

41031

$6.26

41

Plate

520000727

$33.82

42

Carriage Bolt, M8 X 25 | XXC

207782544

$1.31

43

Bolt Carriage M8 X 40

207784044

$1.09

44

Hex. Flange Elastic Nut M8

233281414

Unavailable

45

Cover | Model-T3

28056

$5.52
