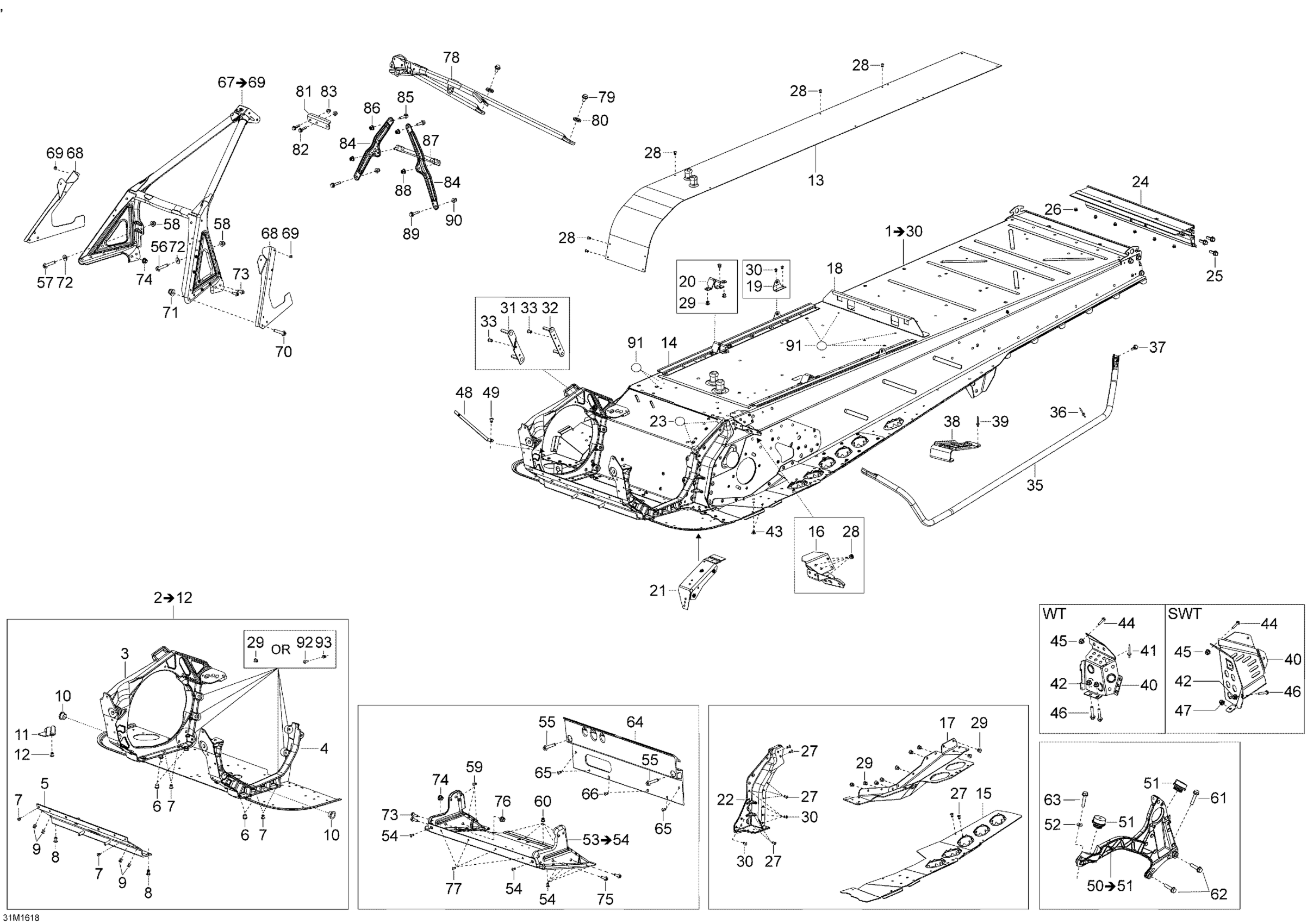

Ski-Doo SKANDIC - 4-STROKE, 2016 Frame Diagram

#

Description
Price

1

BLACK FRAME - Call your local BRP dealership | Includes 1 To 30, Model-900 ACE

518328840

Unavailable

1

FRAME BLACK - Call your local BRP dealership | Includes 1 To 30, Model-SWT

518328859

Unavailable

2

Module E | Includes 2 To 12

518328815

$882.28

3

RH Side Member

518326328

$259.97

4

LH Side Member

518326330

$259.97

5

Front Member

518326198

$59.97

6

Clinch Nut Hexsert M8

605636002

$7.31

7

Avex Rivet

390909100

$0.29

8

Hemlock Rivet 6.5 mm

293150120

$7.23

9

Hemlock Rivet, 6.5 mm

293150119

$4.00

10

Leg Bushing

505072690

Unavailable

11

Muffler Support

518327983

$18.43

12

Rivet Hucklok

293150163

$2.82

13

Tunnel Radiator | Includes 10p to 10q

509000976

$673.82

14

Fastening rail

518326107

$15.35

15

LH Footrest

518328821

$83.82

15

LH Footrest

518328852

$73.05

15

RH Footrest

518328822

$83.82

15

RH Footrest

518328853

$89.20

16

Fastening Bracket

605355235

Unavailable

16

Fastening Bracket

518327884

$25.35

17

LH Drive Axle Cover

518328016

$192.28

17

LH Drive Axle Cover

518328014

$192.28

17

RH Drive Axle Cover

518328017

$192.28

17

RH Drive Axle Cover

518328015

$192.28

18

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$73.05

18

TUNNEL SUPPORT - Call your local BRP dealership

518327003

$26.12

19

Seat Box Bracket

518327457

$29.97

20

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

$40.74

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

$40.74

21

Clinch Nut plate

518326430

$45.99

21

CLINCH NUT PLATE - Call your local BRP dealership

518328096

$44.58

22

LH Frame Corner

518325524

$52.28

22

LH Frame Corner

518325643

$52.28

22

RH Frame Corner

518328024

$52.28

22

RH Frame Corner

518325644

$52.28

23

Adhesive Patch

518325560

Unavailable

24

Rear Profile

518328748

$217.66

24

Rear Profile

518328749

$217.66

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

26

Hemlock Rivet, 6.4 mm

293150174

$6.43

27

Avex Rivet

390909100

$0.29

28

Avex Rivet

390909200

Unavailable

29

Hemlock Rivet, 6.5 mm

293150119

$4.00

30

Rivet

293150183

$2.06

31

Gearbox Front Plate

518326123

Unavailable

32

Gearbox Rear Plate

518326124

Unavailable

33

Pop Rivet 3/16"

390402200

$0.26

34

LH Footboard Support Tube

518326963

$126.89

34

LH Footboard Support Tube

518327595

$81.51

34

RH Footboard Support Tube

518326964

$126.89

34

RH Footboard Support Tube

518327596

$81.51

35

Avex Rivet

390909100

$0.29

36

Hex. Flange Screw M6 x 20

207662056

$0.98

37

Black Rear Footrest

520001208

Unavailable

38

Rivet 3/16"

293150102

$0.71

39

Black, LH Toe Hook

518328819

Unavailable

39

Black, LH Toe Hook

518328921

Unavailable

39

Black, RH Toe Hook

518328820

Unavailable

39

Black, RH Toe Hook

518328922

Unavailable

40

Avex Rivet

390909200

Unavailable

41

Clinch Nut M6 Hexsert

605636003

$4.12

42

Black, Dart

414644300

$0.78

43

Hex. Flange Screw M6 x 20

207662056

$0.98

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

45

Torx Head Screw M6 X 16

250000717

Unavailable

46

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

47

Spring Bracket

514054846

$4.34

48

Avex Rivet

390909200

Unavailable

49

ASS'Y BRACE KIT - Call your local BRP dealership | Includes 200 to 200a This part replaces 518327535.

415130014

Unavailable

50

Vibration Damper

512061516

$57.66

51

Conical Spring Washer M8

234281474

$1.25

52

S Module | Includes 300 to 300a

518326213

Unavailable

53

Avex Rivet

390909200

Unavailable

54

Hexagonal Head Screw

210262050

$1.74

55

Hex. Flange Screw M6 X 25

207662544

Unavailable

56

Hex. Flange Screw M6 X 25

207662544

Unavailable

57

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

58

Avex Rivet

390909100

$0.29

59

Avex Rivet

390909200

Unavailable

60

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

61

Hex. Flange Screw M8 X 35

250000986

$1.74

62

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

63

Engine Support

518326140

$116.12

64

Avex Rivet

390909100

$0.29

65

Hemlock Rivet, 6.5 mm

293150119

$4.00

66

Front Member Ass'y | Includes 700 to 700d

518327004

Unavailable

67

LH Bumper Fastener

502007077

Unavailable

67

RH Bumper Fastener

502007078

Unavailable

68

Avex Rivet

390909200

Unavailable

69

Hex. Flange Screw M6 X 20

207662044

Unavailable

70

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

71

Flat Washer

224061201

Unavailable

72

Hex. Flange Screw M6 X 20

207662044

Unavailable

73

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

74

Hex. Flange Screw M6 X 20

207662044

Unavailable

75

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

76

Avex Rivet

390909200

Unavailable

77

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

78

Hex. Flange Screw M6 x 20

207662056

$0.98

79

Not Available As Spare Part - Friction Washer

Unavailable

80

EXTENTION PLATE - Call your local BRP dealership | Model SWT

518327029

Unavailable

81

Hex. Flange Screw M6 X 25

207662544

Unavailable

82

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

83

Upper Column Support

518326848

$13.06

84

Hex. Flange Screw M6 x 20

207662056

$0.98

85

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

86

Center Column Support

518326355

$20.74

87

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

88

Hex. Flange Screw M6 X 25

207662556

Unavailable

89

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

90

Adhesive Patch

518325560

Unavailable

91

Hex. Flange Screw M6 X 20

207662044

Unavailable

92

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
