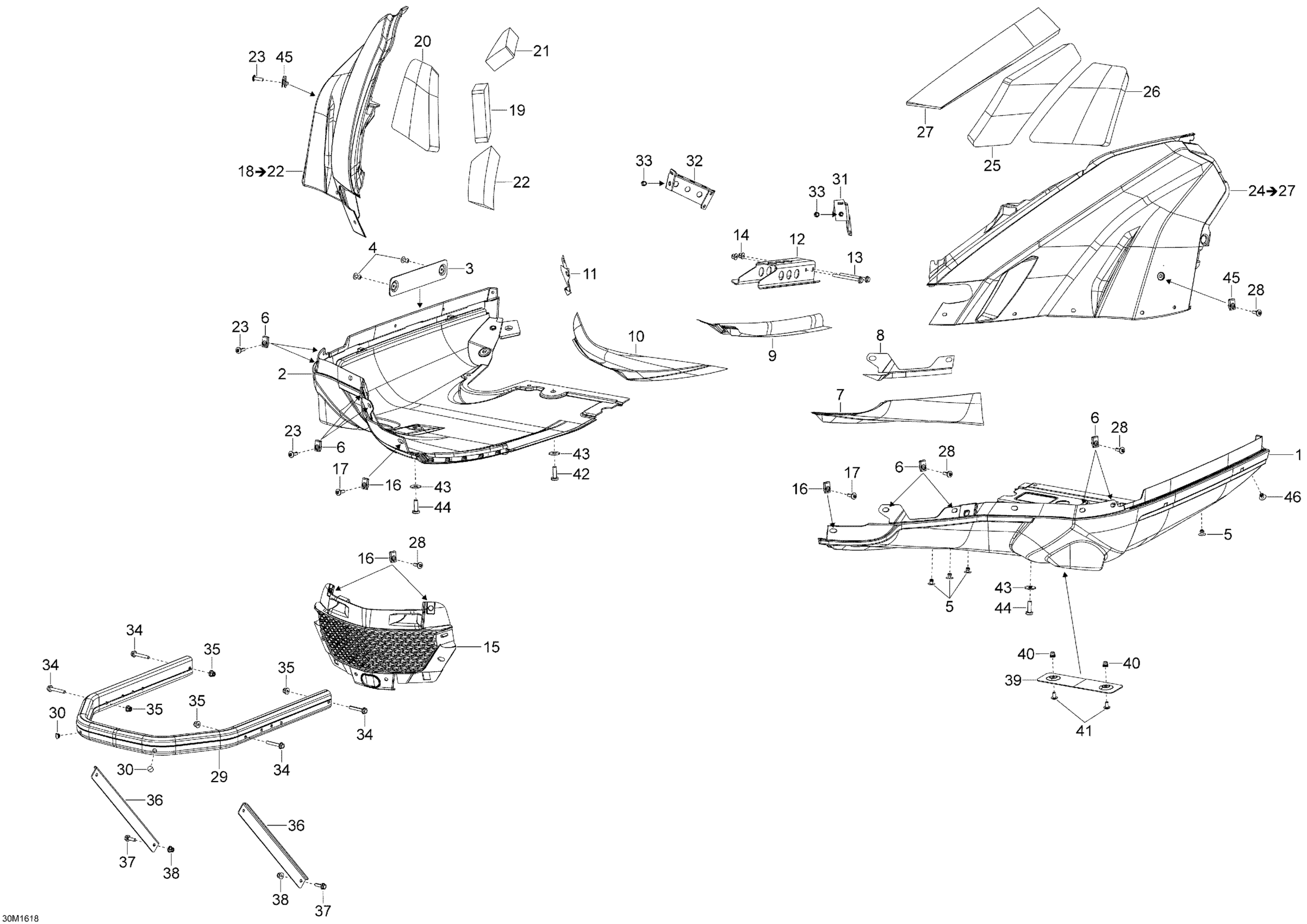

Ski-Doo SKANDIC - 4-STROKE, 2016 Bottom Pan Diagram
#
Description
Price
1
LH Lower Bottom Pan
502007836
Unavailable
2
RH Lower Bottom Pan
502007837
Unavailable
3
Heat Isolation Plate
502007255
Unavailable
6
Panel Nut M6 X 1.0
250100198
Unavailable
7
Heat Shield
508000918
Unavailable
8
Heat Shield
508000919
Unavailable
9
Heat Shield
508000920
Unavailable
10
Heat Shield
508000921
Unavailable
11
Heat Shield
508000922
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
Front Grille
502007140
Unavailable
16
Panel Nut M6 X 1.0
250100198
Unavailable
17
Torx Screw M6 X 20
250000722
Unavailable
18
Deep Black, RH Bottom Pan
502008015
Unavailable
19
Insulator
502007133
Unavailable
20
Insulator
502007132
Unavailable
21
Insulator | Model LE, SE
502007008
Unavailable
23
Torx Screw M6 X 20
250000722
Unavailable
24
Deep Black, LH Bottom Pan
502008017
Unavailable
25
Insulator
502007088
Unavailable
26
Insulator
502007131
Unavailable
28
Torx Screw M6 X 20
250000722
Unavailable
29
Bumper | Model-LE
502007469
Unavailable
31
LH Bottom Pan Fastener
502007535
Unavailable
32
RH Bottom Pan Fastener
502007536
Unavailable
35
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
36
Bumper Support
502006927
Unavailable
37
Hex. Flange Screw M6 X 20
207662044
Unavailable
38
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
39
Oil Plate
518328879
Unavailable
41
Torx Screw M6 X 20
250000722
Unavailable
44
Torx Screw M6 X 20
250000722
Unavailable
45
Panel Nut M6 X 1.0
250100198
Unavailable
