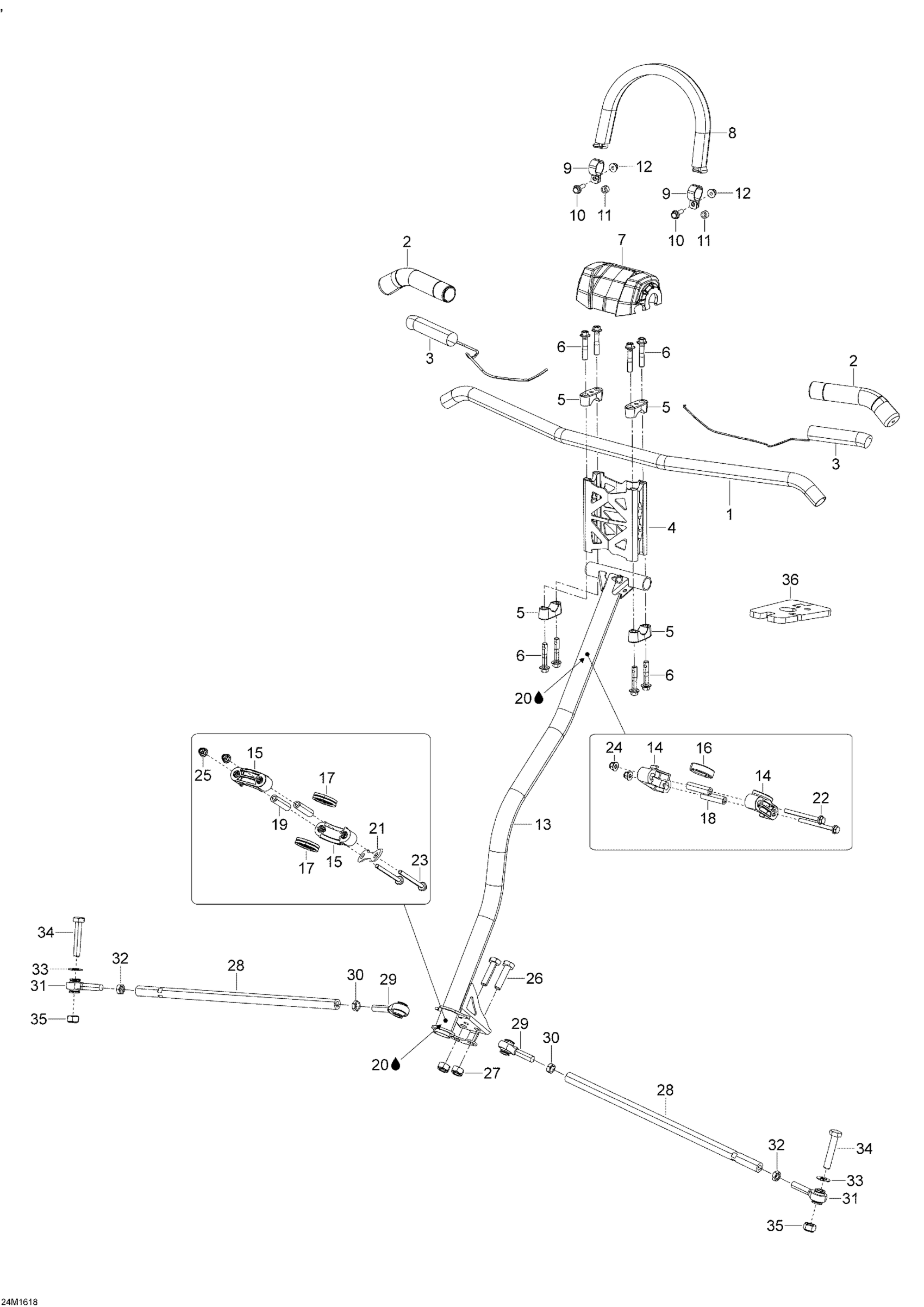

Ski-Doo SKANDIC - 4-STROKE, 2016 Steering System Diagram

#

Description
Price

1

Handle Bar

506152722

$145.35

2

Grip | WAKE This part replaces M5340464.

506152483

$9.85

3

Heated Film, 25W

506152428

$37.66

4

Extension Kit ( 205mm ) This part replaces 860200269.

860200821

Unavailable

5

Steering Support | Includes 40 to 40a

506152751

$10.09

6

Hex. Flange Screw M8 x 40

250000285

$0.77

7

Deep Black, Steering Pad

506152541

$42.28

8

Strap Ass'y | Package XMR

506152115

$43.05

9

Black Support Plate

506152536

$8.60

10

Hex. Flange Screw M6 X 20

207662054

$0.83

11

Bushing | Package XMR

506152156

$5.35

12

Hex. Flange Elastic Nut M6

233261494

$1.26

13

Steering Column

506152964

$189.20

14

Upper Half-Housing

506152508

$7.40

15

Lower Half-Housing

506152217

$5.57

16

Upper Anti-Vibration Gasket

506152509

$4.52

17

Lower Vibration Ring

506152518

Unavailable

18

Housing Bushing

506152297

Unavailable

19

Lower Housing Bushing

506152388

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Stopper Plate

506152389

Unavailable

22

Hex. Flange Screw M6 X 70

207667056

$3.61

23

Hex. Flange Screw, M8 X 65

207686544

$9.74

24

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

25

Hex. Flange Elastic Nut M8

233281414

Unavailable

26

Hex. Screw M10 X 40

207004044

$4.65

27

Elastic Stop Nut M10

232500416

$1.56

28

Tie Rod

506152436

Unavailable

29

LH Thread Ball Joint

506152081

$39.97

30

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

31

RH Threaded Ball Joint

506152019

$39.97

32

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

33

Washer

506152582

Unavailable

34

Hex. Screw M10 X 45

207004544

Unavailable

35

Hex. Flange Elastic M10 x 1.5

233201464

Unavailable

36

Cushion

506152404

$25.35
