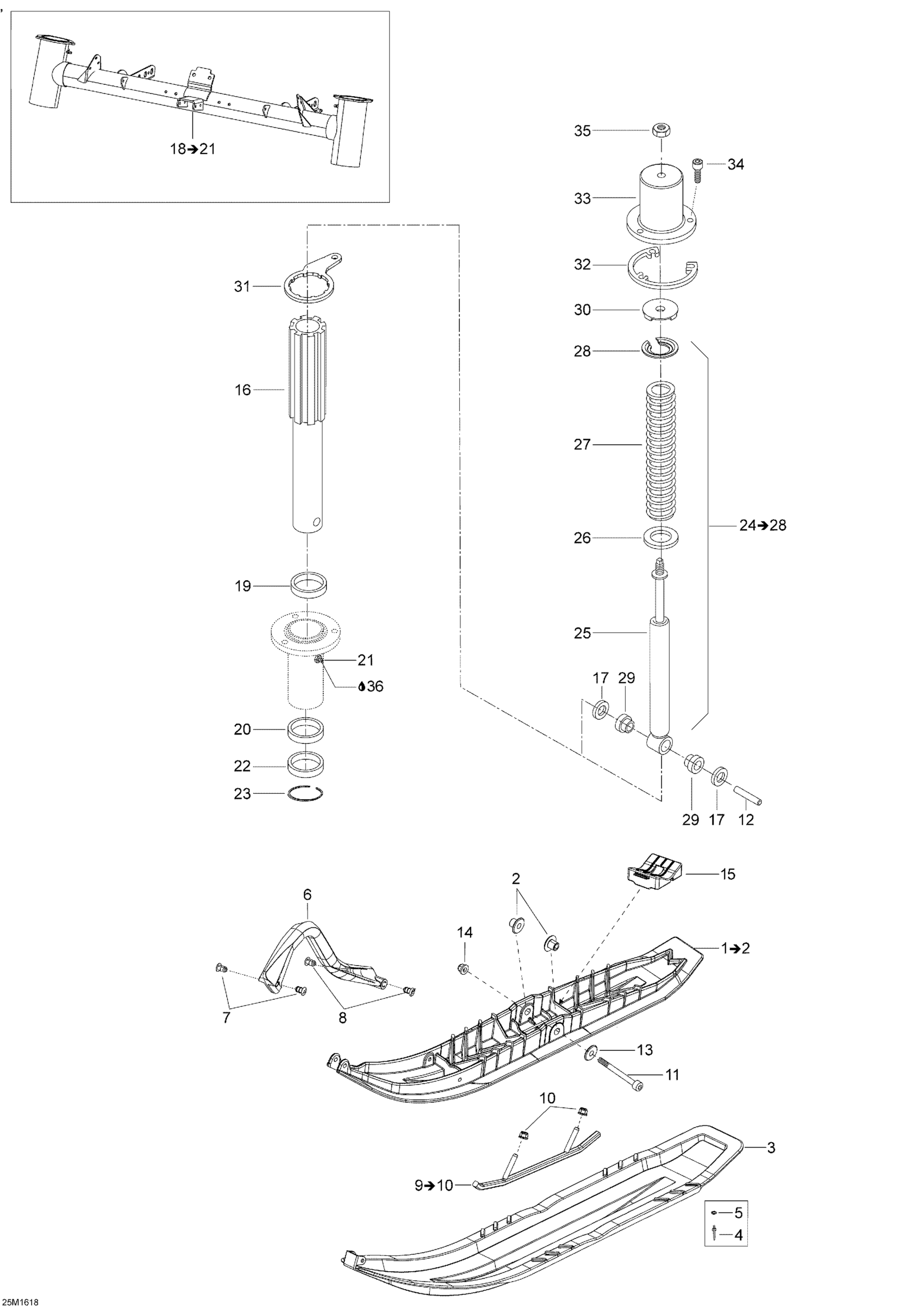

Ski-Doo SKANDIC - 4-STROKE, 2016 Front Suspension Diagram

#

Description
Price

1

Black, Ski

505073227

Unavailable

2

Ski Bushing

505071781

Unavailable

3

DS Liner

505073448

$91.99

4

Pop Rivet

293150206

$2.06

5

Flat Washer 6 mm

234061410

Unavailable

6

Black, Handle

505072976

$35.35

7

Retainer 17mm long

505071812

$4.43

8

Retainer 23mm Long

505072133

$5.03

9

Carbide Runner Kit (Square Runner) | Includes 10f to 10f1

860201044

Unavailable

10

Hex. Flange Elastic Nut M8

233281414

Unavailable

11

Hex. Screw M10 X 130 | Model-RT STD

250000703

Unavailable

12

Ski Axle

505073209

Unavailable

13

Washer

732900049

Unavailable

14

Hex. Flange Elastic Nut M10

233201414

$1.26

15

Ski Stopper

505072594

Unavailable

16

Ski Leg

505073200

Unavailable

17

Spacer

505072579

$7.58

18

Module Ass'y | Includes 400 to 400d

505073967

Unavailable

19

Upper Cushion

414803100

Unavailable

20

Lower Cushion

414803200

Unavailable

21

Grease Fitting

408200700

Unavailable

22

Seal Oil

505072696

Unavailable

23

Circlip

505072698

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Shock

505073046

Unavailable

26

Washer

505072578

Unavailable

27

Black, Spring

505072745

Unavailable

28

Spring Stopper

505072619

Unavailable

29

Cushion

572034500

Unavailable

30

Rubber Bumber

605354835

Unavailable

31

Steering Arm

505073823

Unavailable

32

Spacer

505073983

Unavailable

33

Suspension Cover LH

505072874

Unavailable

33

Suspension Cover RH

505072875

Unavailable

34

Socket Head Screw M8 X 20

205082044

$1.09

35

Hex. Flange Elastic Nut M10

233201414

$1.26

36

Not Available As Spare Part - Friction Washer

Unavailable
