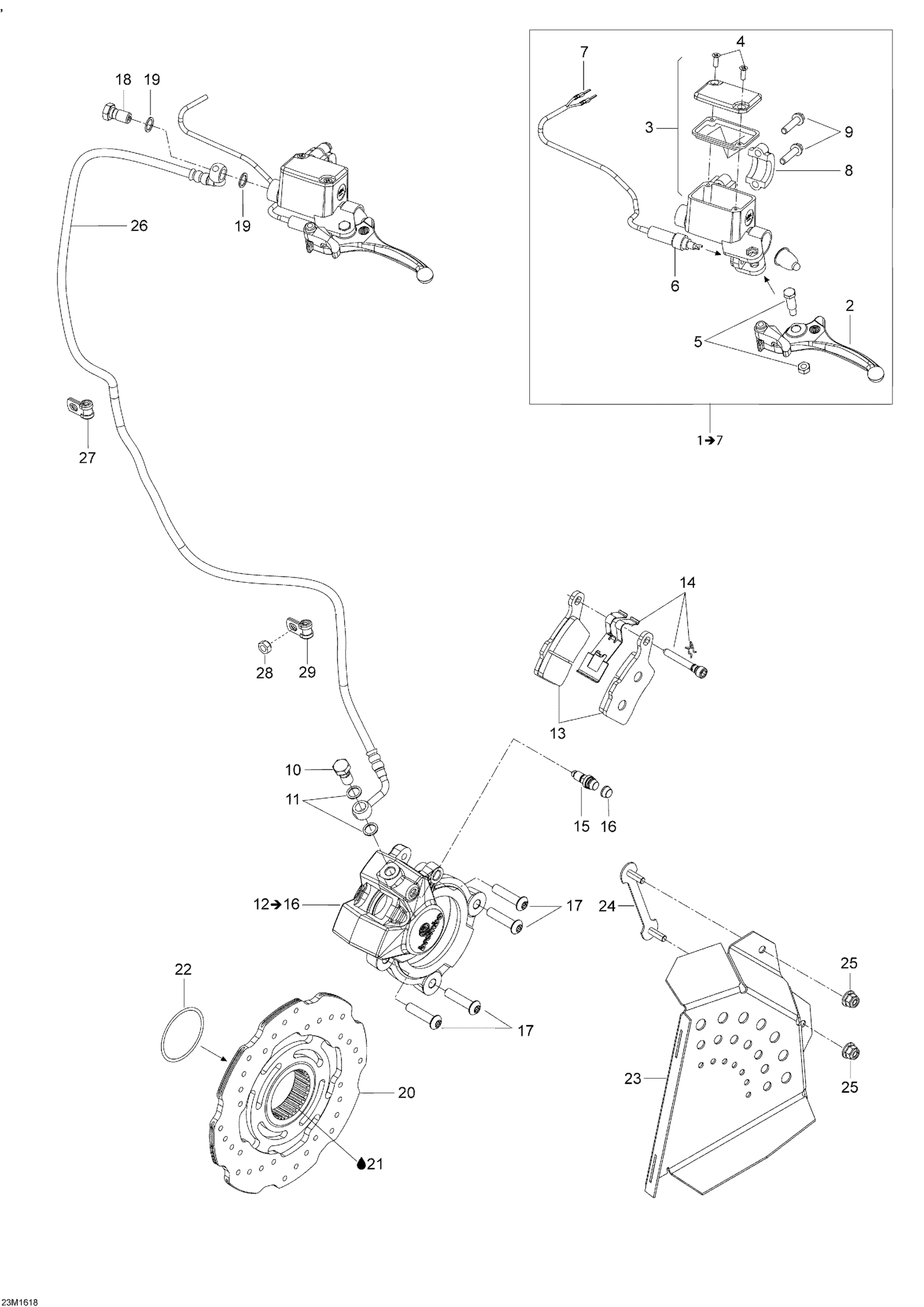

Ski-Doo SKANDIC - 4-STROKE, 2016 Hydraulic Brakes Diagram

#

Description
Price

1

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$299.97

2

Lever With Parking Lock

507032476

$101.51

3

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.97

4

Screw M4 X 20

415129356

$2.17

5

Pin Ass'y

415030000

Unavailable

6

Microswitch | Grand Touring

507032479

$96.89

7

Male Terminal

515175232

$1.49

8

Clamp And Screw Kit

507032477

$23.05

9

Hex. Flange Screw M6 X 25

250000447

$2.06

10

Banjo Bolt

507032551

$5.52

11

Copper Washer

705601628

$4.34

12

Brake Caliper | Includes 200 to 200c

507032720

Unavailable

13

Brake Pads Kit

507032473

Unavailable

14

Brake Spring Kit

507032722

Unavailable

15

Bleeder

507032475

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

Unavailable

18

Banjo Bolt

507032551

$5.52

19

Copper Washer

705601628

$4.34

20

Disk

507032513

$235.35

21

Not Available As Spare Part - Friction Washer

Unavailable

22

O-Ring

293300134

Unavailable

23

Disk Protector | WT

507032537

$64.58

24

Counter Plate | Includes 505 to 505a

518328661

$18.43

25

Hex. Flange Elastic Nut M6

233261494

$1.26

26

Hose, Steel Braided | WT

507032548

$46.12

26

Hose, Steel Braided | SWT

507032547

Unavailable

27

Clamp

293650256

Unavailable

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

29

Open Clamp

414176000

$1.86
