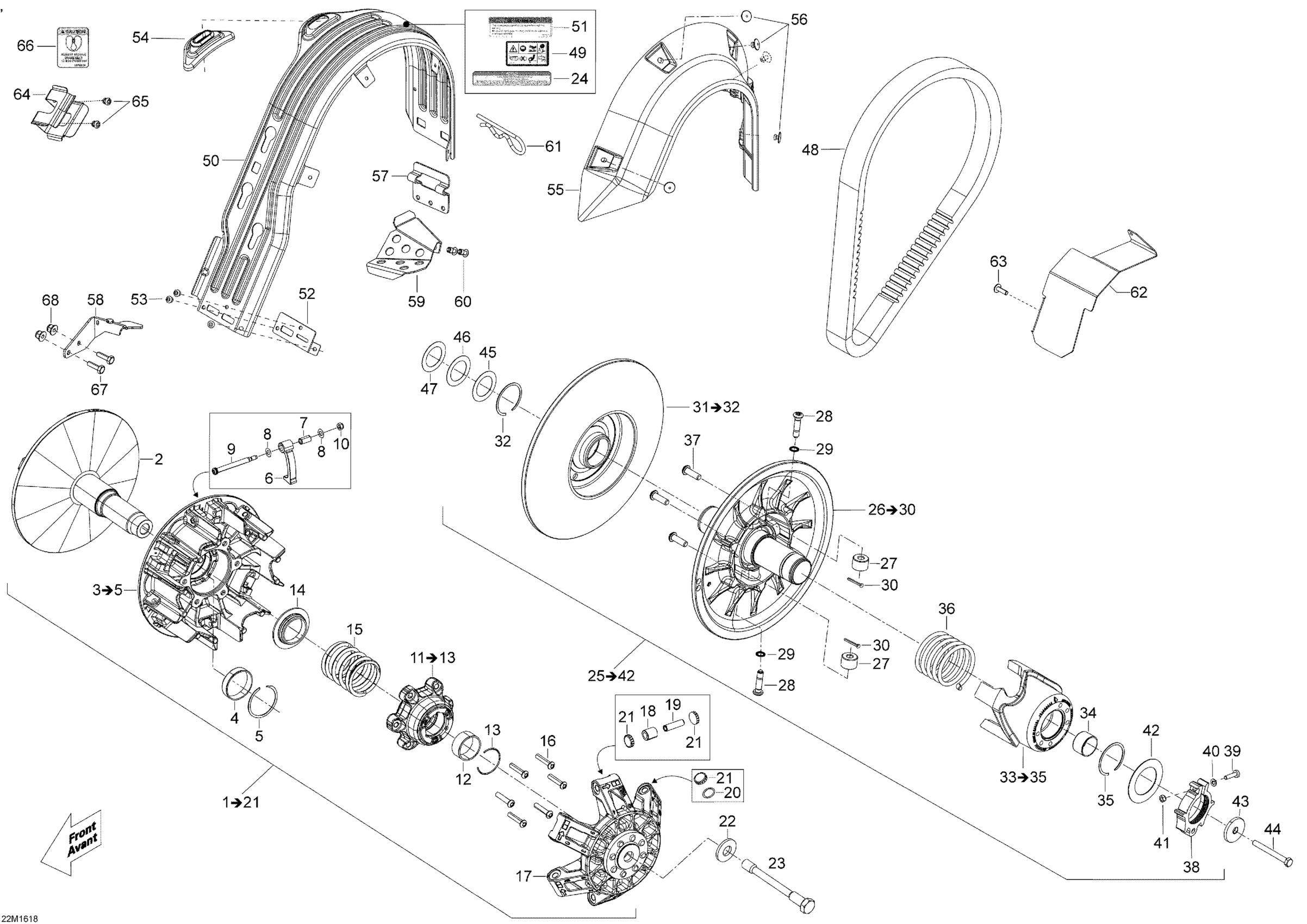

Ski-Doo SKANDIC - 4-STROKE, 2016 Pulley System Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Fixed Flange Ass'y

417224091

$179.97

3

Sliding Flange Ass'y | Includes 10b to 10b3

417224101

$198.43

3

Flange Slide Ass'y

417224044

$198.43

4

Bushing

417222758

$20.74

5

Circlip

293370037

$3.02

6

Ramp 716 Ass'y

417223508

$32.28

6

Ramp 748 Ass'y | Europe - Includes journal Bearing This part replaces 417224035.

417224228

Unavailable

6

Ramp 740 | North America

417223906

$32.28

7

Not Available As Spare Parts

XXX

Unavailable

8

Thrust Washer

417223255

$1.97

8

Stopper Washer

417223660

$3.11

9

Ramp Axle

417223694

$4.60

10

Elastic Stop Nut M5

232551414

Unavailable

11

Spring Cover Ass'y | Includes 10j to 10j3

417223907

$39.97

11

Spring Cover Ass'y

417223650

$39.97

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Circlip

293370065

$0.95

14

Seat Spring

417223752

$13.43

15

Clutch Spring

417223747

$13.52

15

Spring (Red/Orange) | Europe

417223749

$12.31

15

Clutch Spring

417223745

$13.52

16

Torx Screw M6 X 30

250000580

$5.02

17

Governor Cup Ass'y

417223865

$179.97

18

Roller

417223767

$7.37

19

Roller Axle

417223257

$9.22

20

O-Ring

293300185

$0.95

21

Slider Shoe

417223919

$3.68

22

Conical Spring Washer M14

250200144

Unavailable

23

Pulley Drive Bolt

417300432

$42.99

24

Decal English

516005503

Unavailable

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Fixed Flange Ass'y

417127433

$590.74

27

Roller

417127189

$44.58

28

Pivot Stud

417127294

Unavailable

29

Lock Washer 8 mm

250200009

Unavailable

30

Spring Pin M3 X 30

250400063

$1.74

31

Slider Flange Ass'y | Includes 100b to 100b3

417127366

$147.66

32

Circlip

293370049

Unavailable

33

Cam Ass'y

417127413

Unavailable

33

Cam Ass'y

417127411

$164.99

34

Bushing ID 41mm OD 45mm X 19mm L

417127318

Unavailable

35

Circlip

293370049

Unavailable

36

Release Spring

417127344

$43.82

36

Release Spring

417127467

$44.58

37

Button Head Torx Screw M8 X 25 S.Gr

250000757

Unavailable

38

Calibration Ass'y

415129604

Unavailable

39

Socket Screw M5 X 25

205052544

$1.34

40

Flat Washer M5

234051410

Unavailable

41

Elastic Stop Nut M5

232551414

Unavailable

42

Washer

417127155

Unavailable

43

Strength Washer

517302322

$11.09

44

Hex. Cap Screw M8 X 75

207287544

$4.24

45

Spacer

417300252

$5.17

46

Spacer

417300265

$2.12

47

Shim

504112000

$6.05

48

Drive Belt

417300585

Unavailable

48

Drive Belt

417300551

Unavailable

49

Warning Decal | Europe

516003919

$7.65

50

Belt Guard

417300382

$85.35

51

Security Label, Belt Guard

516006900

Unavailable

52

Reinforcement

417300380

$5.17

53

Avex Rivet

390909200

Unavailable

54

Guide

417300381

$9.23

55

Side Protector

417300356

$13.25

56

Pop Rivet 3/16"

293150103

Unavailable

57

Belt Guard Bracket | Except Package SWT

417300363

$12.20

57

Belt Guard Bracket | Package SWT

417300413

$7.11

58

BELT GUARD BRACKET - Call your local BRP dealership

417300451

Unavailable

59

Brake Hose Cover | Except Package SWT

518325626

$28.43

59

Brake Hose Cover | Package SWT

518327035

$11.02

60

Rivet Hucklok

293150163

$2.82

61

Hair Pin

114045200

Unavailable

62

Air Duct | North America

417300468

$46.89

63

Torx Screw M6 X 20

250000722

Unavailable

64

Bracket

517281905

Unavailable

65

Avex Rivet

390909100

$0.29

66

Belt Gard Decal

516007493

$9.62

67

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

68

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
