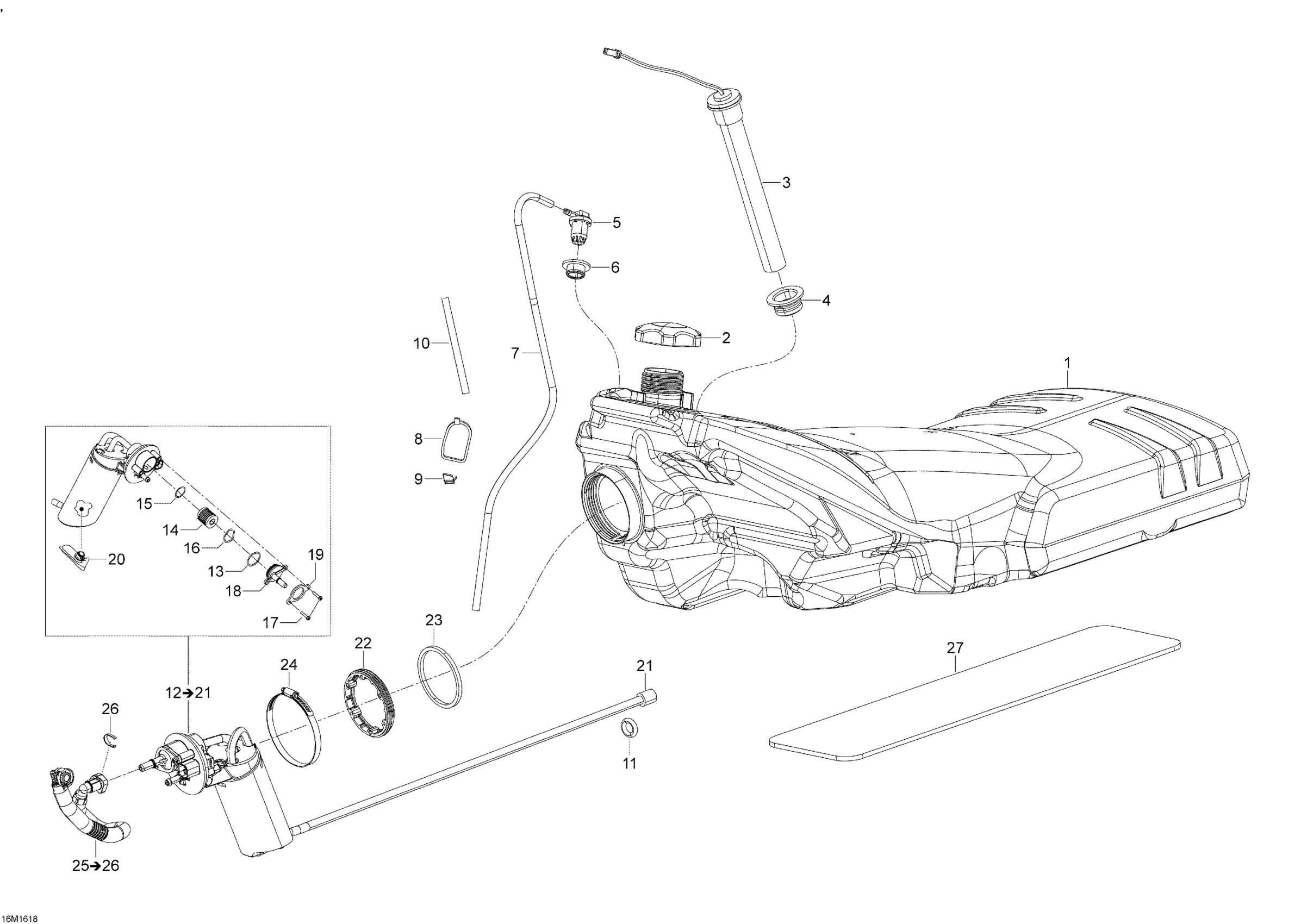

Ski-Doo SKANDIC - 4-STROKE, 2016 Fuel System Diagram

#

Description
Price

1

Fuel Tank

513033757

$535.04

2

Fuel Tank Cap 95 Octane | Europe

513033723

$24.60

2

Fuel Tank Cap

513033969

$24.60

3

Fuel Sensor

513033538

$75.34

4

Grommet

293720058

$10.67

5

Check Valve

513033842

$32.81

6

Grommet

513033596

$17.88

7

Polyurethane Hose 10000Mm Long

219704410

$52.96

8

Tie-Rap 180 mm

414115200

$0.10

9

Clip

414227300

$1.40

10

Not Available As Spare Part - Friction Washer

Unavailable

11

O Ring

293300184

$3.19

12

Fuel Pump | Includes 300 to 300j This part replaces 513033694.

513034261

$249.97

13

O-Ring

415129509

$17.88

14

Fuel Filter

415129510

$23.10

15

O-Ring

415129511

$16.39

16

Wave Washer

415129512

$17.88

17

Screw

415129513

$8.73

18

Cover

415129685

$29.07

19

Fuel Pump Ring

415129569

Unavailable

20

Fuel Filter

415129451

$23.10

21

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$11.06

22

Ring

513033180

$17.13

23

Gasket

513033334

$22.36

24

Clamp

513033628

$20.12

25

Hose Ass'y | Includes 500 to 500a

513033582

$70.87

26

Locking Clip

513033135

$4.96

27

Insulate Foam

513033788

$8.48
