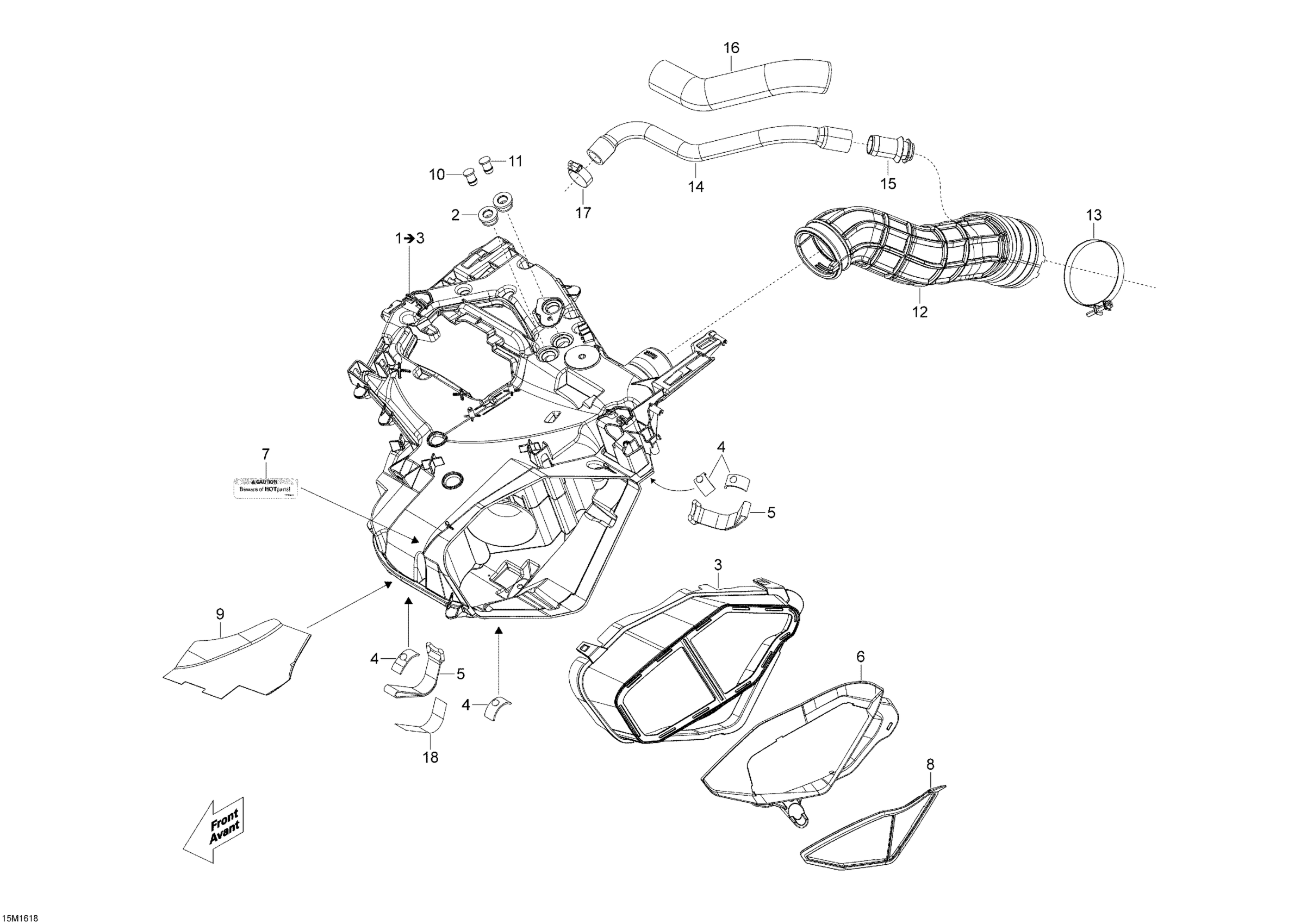

Ski-Doo SKANDIC - 4-STROKE, 2016 Air Intake System Diagram

#

Description
Price

1

Secondary Chamber Ass'y

508000715

$191.51

2

Grommet

508000574

$7.35

3

Air Intake Filter

508000595

Unavailable

4

Stopper

508000537

$7.35

5

Velcro Strip

508000820

$7.35

6

Adapter

508001021

$28.43

7

Hot Parts Decal

516006903

Unavailable

8

Air Filter

508000609

$46.12

9

Reflective Sheet

508000622

$9.35

10

Cap

572092900

Unavailable

11

Cap

572092900

Unavailable

12

Air Intake Hose

508000838

$43.05

13

Gemi Clamp

293650229

$10.52

14

Formed Vent Hose

508000774

$15.35

14

Hose Vent

508000746

$15.35

15

Breather Valve

273000234

$10.63

16

Insulating Tube

508000630

$15.35

17

Tridon Gear Clamp

293650172

$2.68

18

Aluminum foil

44110

Unavailable
