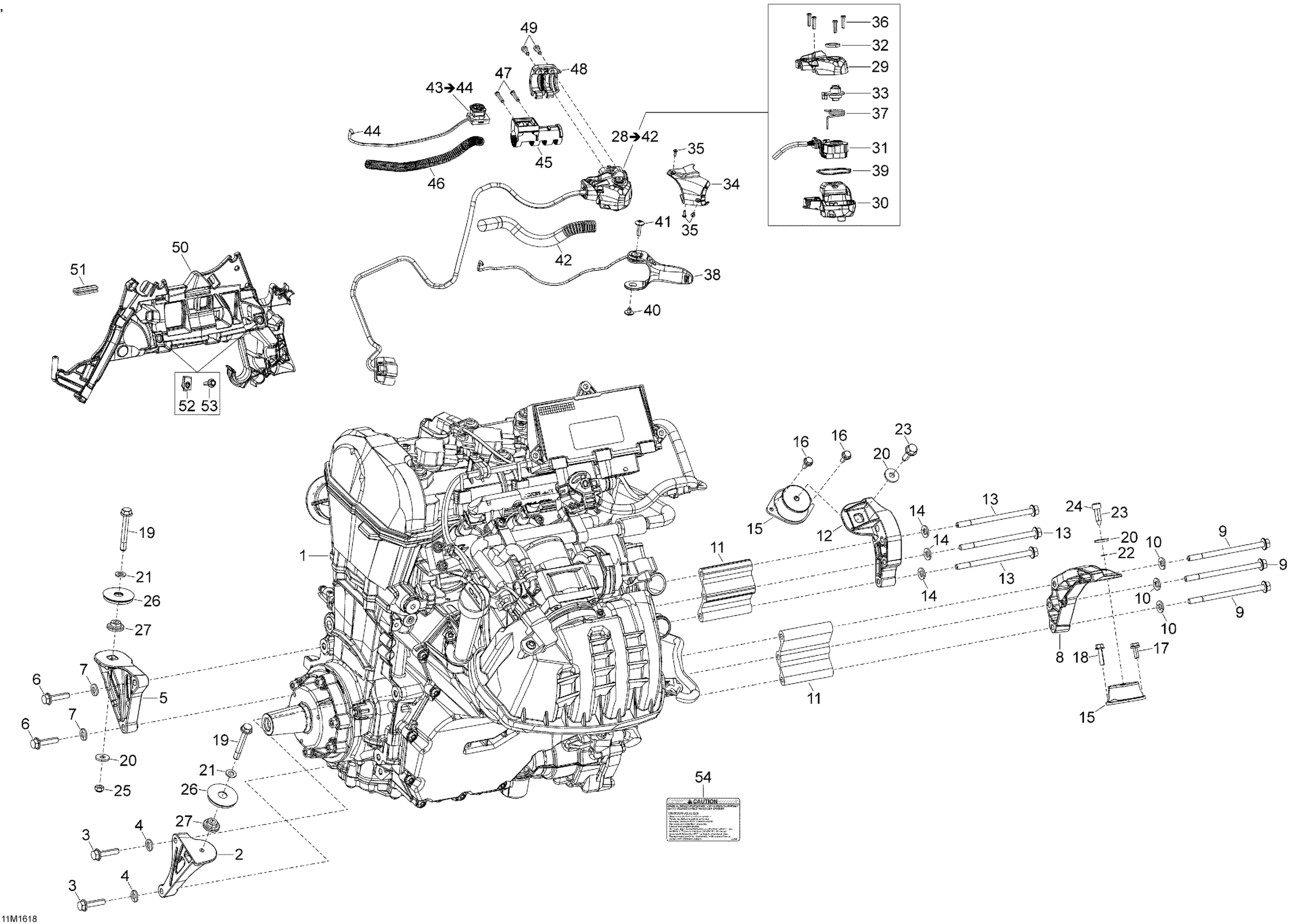

Ski-Doo SKANDIC - 4-STROKE, 2016 Engine And Engine Support Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Rear Support PTO

512061139

$23.82

3

Hex. Flange Screw M8 X 35

250000986

$1.74

4

Conical Spring Washer M8

234281474

$1.25

5

Front Support PTO

512061140

$17.66

6

Hex. Flange Screw M8 X 35

250000986

$1.74

7

Conical Spring Washer M8

234281474

$1.25

8

Rear Support MAG

512061142

$27.66

9

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.52

9

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

10

Conical Spring Washer M8

250200157

$2.06

11

Shim

512060505

$42.28

12

Front Support, MAG

512060663

$18.43

13

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$11.52

13

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

14

Conical Spring Washer M8

250200157

$2.06

15

Rubber Mount

512060729

$69.97

16

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

Unavailable

18

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.06

19

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

Unavailable

20

Yellow, Washer

503183200

Unavailable

21

Flat Washer With Teflon 8 mm

250200008

Unavailable

22

O-Ring

293300123

$1.00

23

Cone Screw, M8 X 30

250000257

$1.72

23

Cone Screw, M8 X 30

250000257

$1.72

24

Cone Screw, M8 X 25

250000639

Unavailable

25

Hex. Elastic Stop Nut M8

232581414

Unavailable

26

Stopper

512061203

$12.52

26

Engine Stopper

512061536

$18.43

27

Spacer

512060285

$17.66

28

Housing Ass'y | Includes 3800 to 3800q This part replaces 512061261.

512061607

$281.51

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Cap

512060862

$11.57

35

Torx Screw M2.9 x 9.5

250000623

$3.11

36

Torx Screw

250000671

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Handle Ass'y kit

415130047

$96.89

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Torx Screw M5 X 20

250000528

Unavailable

42

Protector Tube

515177716

$4.42

43

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

44

Male Terminal

515175232

$1.49

45

Switch Support

512061453

$8.38

46

Protector Tube

515177946

$4.22

47

Torx Screw #8-18

250000263

$1.02

48

Front Housing

512060987

$8.34

49

Torx Screw M5 X 14

250000632

$6.18

50

Module Support

512060994

$14.54

51

Trim 1000Mm Long

219704354

Unavailable

52

Panel Nut M5 X 0.8

250000958

Unavailable

53

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

Unavailable

54

Caution Decal, Oil Level

516005521

Unavailable
