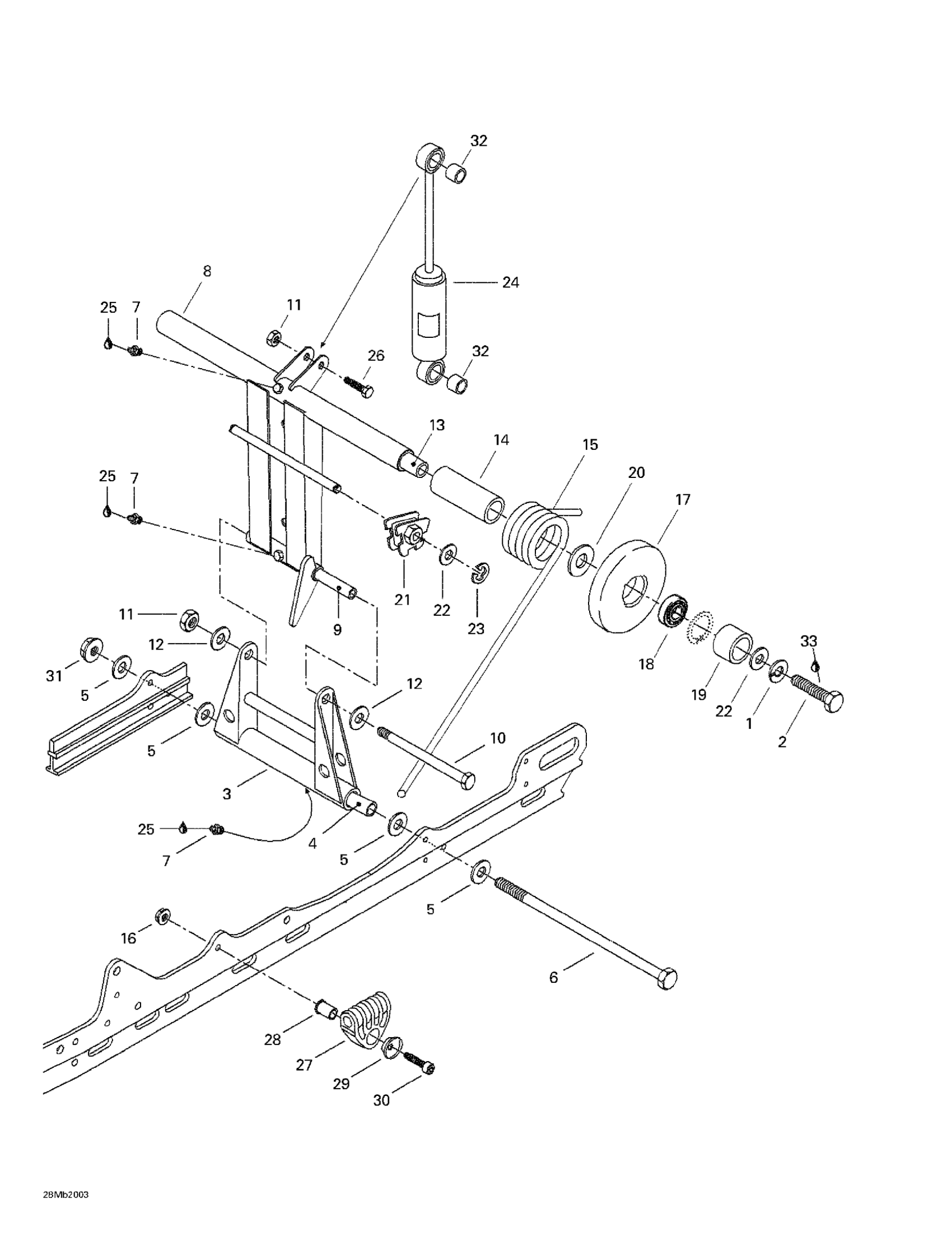

Ski-Doo Skandic 380/500, 2000 Rear Arm Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

2

Hex. Screw M10 X 35

207103544

$1.42

3

Pivot Arm

503152200

Unavailable

4

Lower Axle Pivot

503154703

Unavailable

5

FLAT WASHER - Call your local BRP dealership

224081201

Unavailable

6

Bolt M8 X 248mm

503192440

$29.97

7

Grease Fitting

408200700

$2.80

8

Welded Rear Arm

503151200

Unavailable

9

Upper Axle, Pivot Arm

503144300

$11.98

10

Bolt M8, Short

732601197

$15.06

11

Hex. Elastic Stop Nut M8

232581414

$0.47

12

Flat Washer 8 mm

234081410

$0.69

13

Transversal Rear Axle

503151400

Unavailable

14

Bushing

572047800

Unavailable

15

RH Spring

503189338

Unavailable

LH SPRING - Call your local BRP dealership

503189339

Unavailable

16

Hex. Flange Elastic Nut M8

233281414

$1.14

17

IDLER WHEEL 155 - Call your local BRP dealership | Includes 15 - 16.

572094300

Unavailable

18

Ball Bearing

405404600

$24.58

19

Spacer

503154200

Unavailable

20

Washer

503144900

$2.58

21

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

22

Flat Washer 10 mm

234001410

$0.98

23

e Circlip

371907100

Unavailable

24

Rear Shock | Touring 380 F.

503188902

Unavailable

25

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

26

Hex. Screw M8 X 40

207084044

$0.92

27

Spring Support

503189657

$10.20

28

Spring Guide Axle

503188934

Unavailable

29

CUSHION RETAINER - Call your local BRP dealership

503188929

Unavailable

30

Socket Head Screw M8 X 45

205084544

$0.74

31

Hex. Flange Elastic Nut M8

233281414

$1.14

32

Bushing

414936000

$11.55

33

Loctite 243, 10 ml

293800060

$20.77
