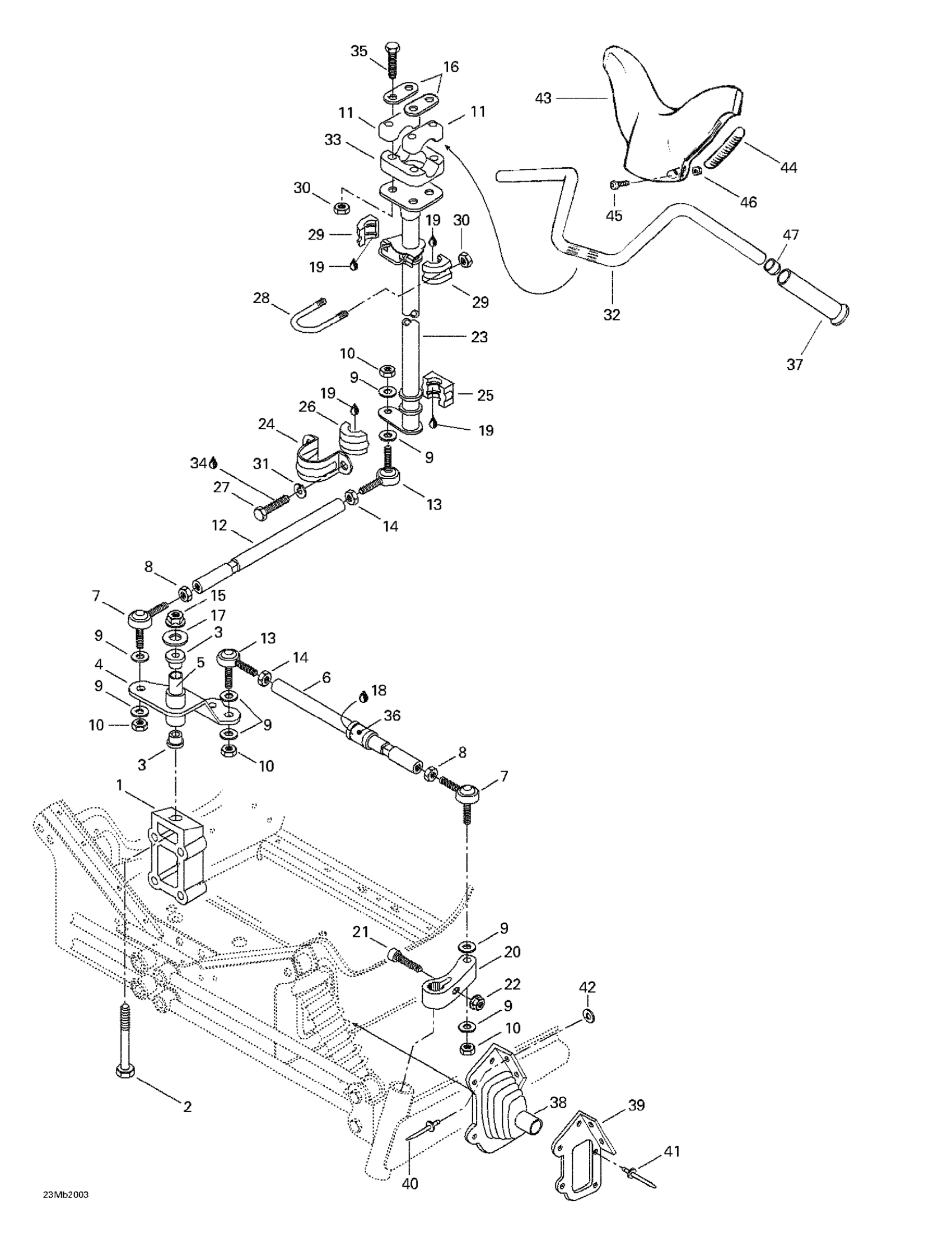

Ski-Doo Skandic 380/500, 2000 Steering System Diagram

#

Description
Price

1

Block

506121400

Unavailable

2

SCREW-HEX.CAP ISO.4014 - Call your local BRP dealership

207028544

Unavailable

3

CUSHION - Call your local BRP dealership

415041100

$5.52

4

Pivot Arm

506133800

Unavailable

5

Pivot

415038000

Unavailable

6

Tie Rod

506131300

Unavailable

7

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

8

RH Threaded Hex. Jam Nut M10

732610010

Unavailable

9

Washer

503175800

$3.26

10

Elastic Flange Nut M10

232501416

Unavailable

11

Steering Support

709400919

Unavailable

12

Tie Rod

506110800

Unavailable

13

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

14

LH Threaded Hex. Jam Nut M10

250100016

Unavailable

15

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

232521414

Unavailable

16

Stiffner

709400509

Unavailable

17

FLAT WASHER - Call your local BRP dealership

506136400

Unavailable

18

Grease, Super Lube

293550030

Unavailable

19

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

20

RH Steering Arm

506144800

Unavailable

LH Steering Arm

506144900

Unavailable

21

SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership

205083544

Unavailable

22

Hex. Flange Elastic Nut M8

233281414

Unavailable

23

Main Tube

506151116

Unavailable

24

Retainer Support

517126200

Unavailable

25

Bushing

572064400

Unavailable

26

BUSHING - Call your local BRP dealership

572064500

Unavailable

27

Hex. Screw M8 X 20

207182044

$0.61

28

U-clamp | X

506060600

Unavailable

29

HALF-BUSHING - Call your local BRP dealership

572067100

Unavailable

30

Hex. Elastic Stop Nut M8

232581414

Unavailable

31

Lock Washer 8 mm

234181401

Unavailable

32

Handlebar

506114100

Unavailable

33

STEERING CLAMP - Call your local BRP dealership

277000142

Unavailable

34

Loctite 271, 10 ml

293800005

Unavailable

35

Hex. Screw M8 X 55

207085544

$1.62

36

BUSHING - Call your local BRP dealership

572036500

Unavailable

37

RH Grip 6-1/2"

506151530

Unavailable

38

RH Tie Rod Cap

570024800

Unavailable

LH TIE ROD CAP - Call your local BRP dealership

570024900

Unavailable

39

RH Cap Plate

517241200

Unavailable

LH CAP PLATE - Call your local BRP dealership

517241300

Unavailable

40

Pop Rivet 3/16"

390906800

Unavailable

41

Pop Rivet 3/16"

390402200

$0.26

42

Washer

517124300

Unavailable

43

Steering Padding

572023800

Unavailable

44

Key Way

572023900

Unavailable

45

Phillips Screw M5 X 20

208652044

Unavailable

46

Hex. Flange Elastic Nut M5

233251414

Unavailable

47

HANDLEBAR END - Call your local BRP dealership

572081900

Unavailable
