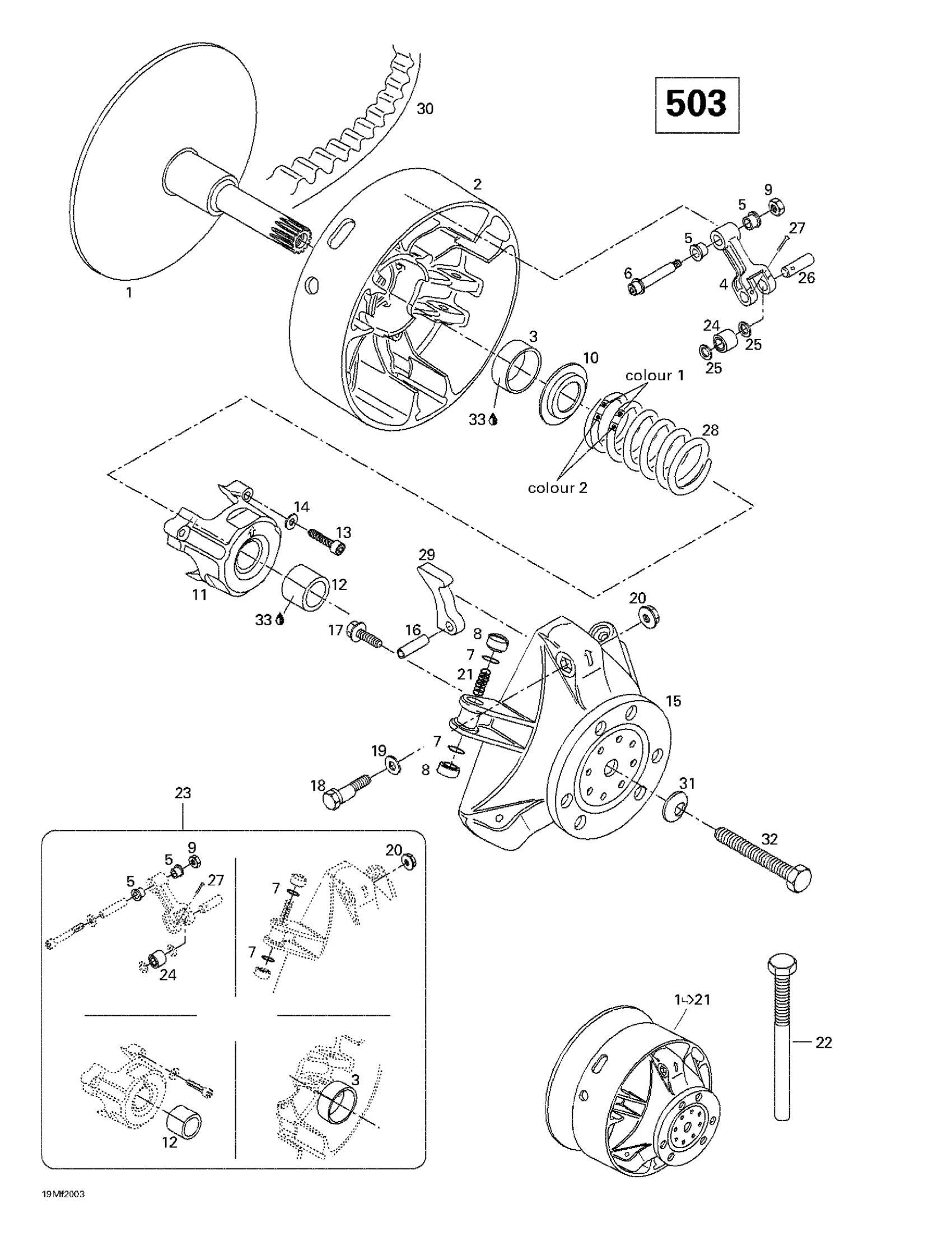

Ski-Doo Skandic 380/500, 2000 Drive Pulley (503) Diagram

#

Description
Price

1

Drive Pulley Ass'y | Includes 1 - 21. Formula DLX 500.

417222284

Unavailable

1

Fixe Flange | Formula DLX 500.

417222071

Unavailable

2

OUTER HALF ASS'Y - Call your local BRP dealership | Includes 2 - 3.

417222049

Unavailable

3

Bushing

417004201

Unavailable

4

LEVER ASS'Y - Call your local BRP dealership | Includes 4 - 5.

417003801

Unavailable

5

Bushing

417004305

Unavailable

6

SCREW ASSY - Call your local BRP dealership | Includes 12 to 13

417004800

Unavailable

7

O-Ring

732401030

$0.95

8

Slider Shoe This part replaces 420460045.

417223021

$6.09

9

Elastic Stop Nut M6

232561414

Unavailable

10

Spring Seat

417222044

Unavailable

11

Spring Cover Ass'y | Includes 9 - 10.

417222157

Unavailable

12

Bushing

417004501

Unavailable

13

Socket Screw M6 X 40

205064086

Unavailable

14

WASHER - Call your local BRP dealership

420245370

Unavailable

15

GOVERNOR CUP ASSY - Call your local BRP dealership

417222081

Unavailable

16

Pin M8 X 24

732804009

Unavailable

17

HEX. FORMING SCREW M6 X 18 - Call your local BRP dealership

210361890

Unavailable

18

CALIBRATION SCREW - Call your local BRP dealership

417222955

Unavailable

19

Washer

417005600

$3.86

20

Hex. Flange Nut M6

233061414

Unavailable

21

Spring

417005700

Unavailable

22

Puller Inner Half

529007900

Unavailable

23

Clutch Repair Kit

417006100

Unavailable

24

Roller

417222947

$19.97

25

Stopper Washer

417004302

$15.99

26

Pin

417004309

Unavailable

27

Cotter Pin

250400060

$1.60

28

Clutch Spring

414689800

$43.05

29

Ramp 292X | Grand Touring 500.

417005292X

Unavailable

30

Drive Belt

415060600

Unavailable

31

Conical Spring Washer M12

250200005

Unavailable

32

BOLT - Call your local BRP dealership

417113800

Unavailable

33

Loctite 609, 10 ml

413703100

$24.58
