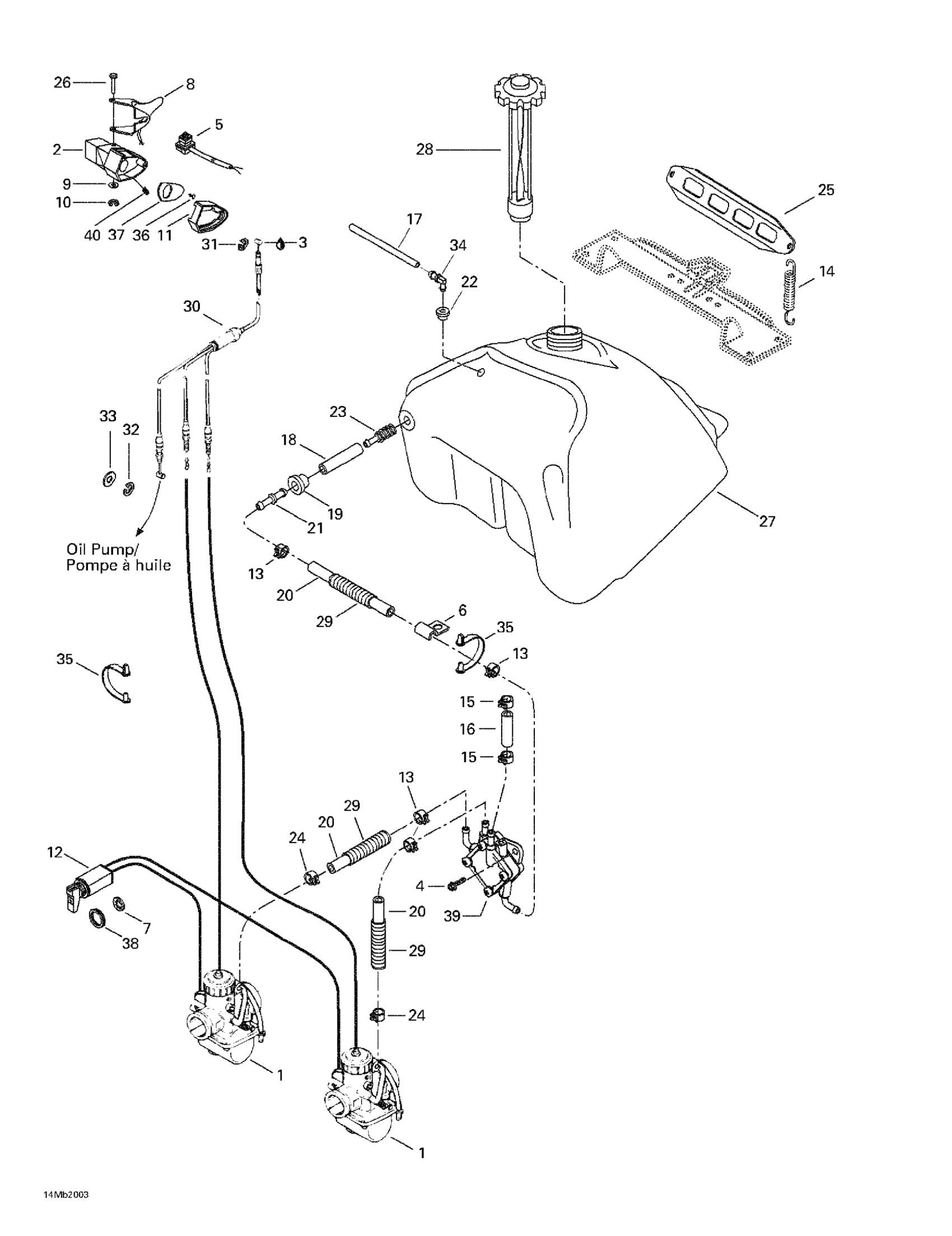

Ski-Doo Skandic 380/500, 2000 Fuel System Diagram

#

Description
Price

1

Carburetor VM 30-200 | Includes 1 - 36.

403138600

Unavailable

Carburetor VM 34 549 (PTO) | MX Z 500 F. Formula DLX 500 F.

403138603

Unavailable

Carburetor VM 34 550 (MAG) | MX Z 500 F. Formula DLX 500 F.

403138604

Unavailable

2

Throttle Housing

512060603

$10.25

3

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

4

Hex. Flange Screw M6 X 16

210261650

$1.40

5

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

6

CLIP - Call your local BRP dealership

415018200

Unavailable

7

Lock Washer, Interior Teeth

394103300

Unavailable

8

Handle Ass’Y

512059624

$85.79

Handle Ass'y

512060214

$114.15

9

Flat Washer M5, Stainless

234051600

$0.73

10

Circlip | Model-RS

414439000

$4.01

11

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

12

CHOKE CABLE - Call your local BRP dealership

414967000

Unavailable

13

Spring Clamp

414554800

$0.81

14

SPRING - Call your local BRP dealership

517182100

Unavailable

15

Spring Clamp

414415200

$0.81

16

Hose

219704549

$46.24

17

Was 415080100 Fuel Line Primer 3,2mm

219704409

$10.51

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Grommet

570045500

$6.13

20

Polyurethane Hose 10000Mm Long

219704410

$52.96

21

Male Connector

414518500

$4.01

22

Grommet

709200285

$8.13

23

Fuel Filter

414865700

$9.63

24

Spring Clamp

414420700

$0.66

25

Fuel Tank Bracket

517249200

Unavailable

26

Lever Pin

414438700

$10.81

27

Fuel Tank

572108900

Unavailable

28

Fuel Tank Cap

572161200

$35.79

29

Tubing 10 MM 1000MM Long

219704407

$2.52

30

THROTTLE CABLE AND HOUSING - Call your local BRP dealership

414883100

Unavailable

31

Circlip

414274500

$0.85

32

Circlip

414753500

$0.67

33

Flat Washer 8 mm, Nylon

234081100

$1.15

34

Male Connector

414814100

$2.12

35

CABLE CLIP - Call your local BRP dealership

414379300

Unavailable

36

Screw

414473200

Unavailable

37

Plate

512060390

$9.03

38

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

39

Fuel Pump

403801000

Unavailable

40

Socket Set Screw M8 X 10

414440800

$3.88
