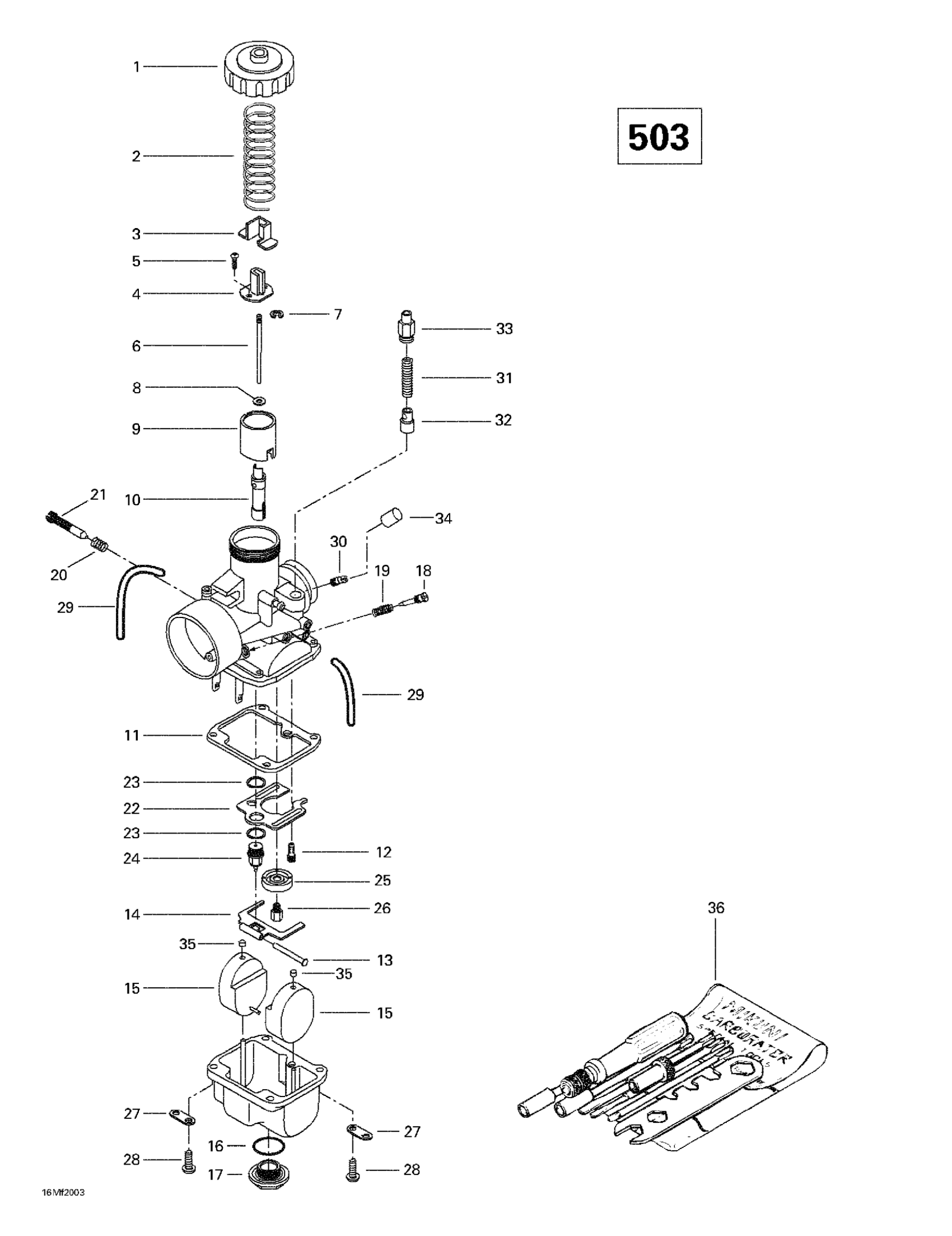

Ski-Doo Skandic 380/500, 2000 Carburetors (503) Diagram
#
Description
Price
1
Carburetor VM 34 549 (PTO) | MX Z 500 F. Formula DLX 500 F.
403138603
Unavailable
Carburetor VM 34 550 (MAG) | MX Z 500 F. Formula DLX 500 F.
403138604
Unavailable
6
JET NEEDLE J8 6DH2 - Call your local BRP dealership | Skandic 500F. Skandic 500F (SWT).
404110400
Unavailable
12
PILOT JET PJ40 - Call your local BRP dealership
404109100
Unavailable
19
SPRING - Call your local BRP dealership
404139800
Unavailable
22
BAFFLE - Call your local BRP dealership
404109600
Unavailable
25
BAFFLE RING - Call your local BRP dealership
404110900
Unavailable
29
HOSE - Call your local BRP dealership
404161880
Unavailable
31
SPRING - Call your local BRP dealership | MAG Side
404127400
Unavailable
33
GUIDE HOLDER - Call your local BRP dealership | MAG Side
404161100
Unavailable
36
TOOL KIT - Call your local BRP dealership
404112000
Unavailable
