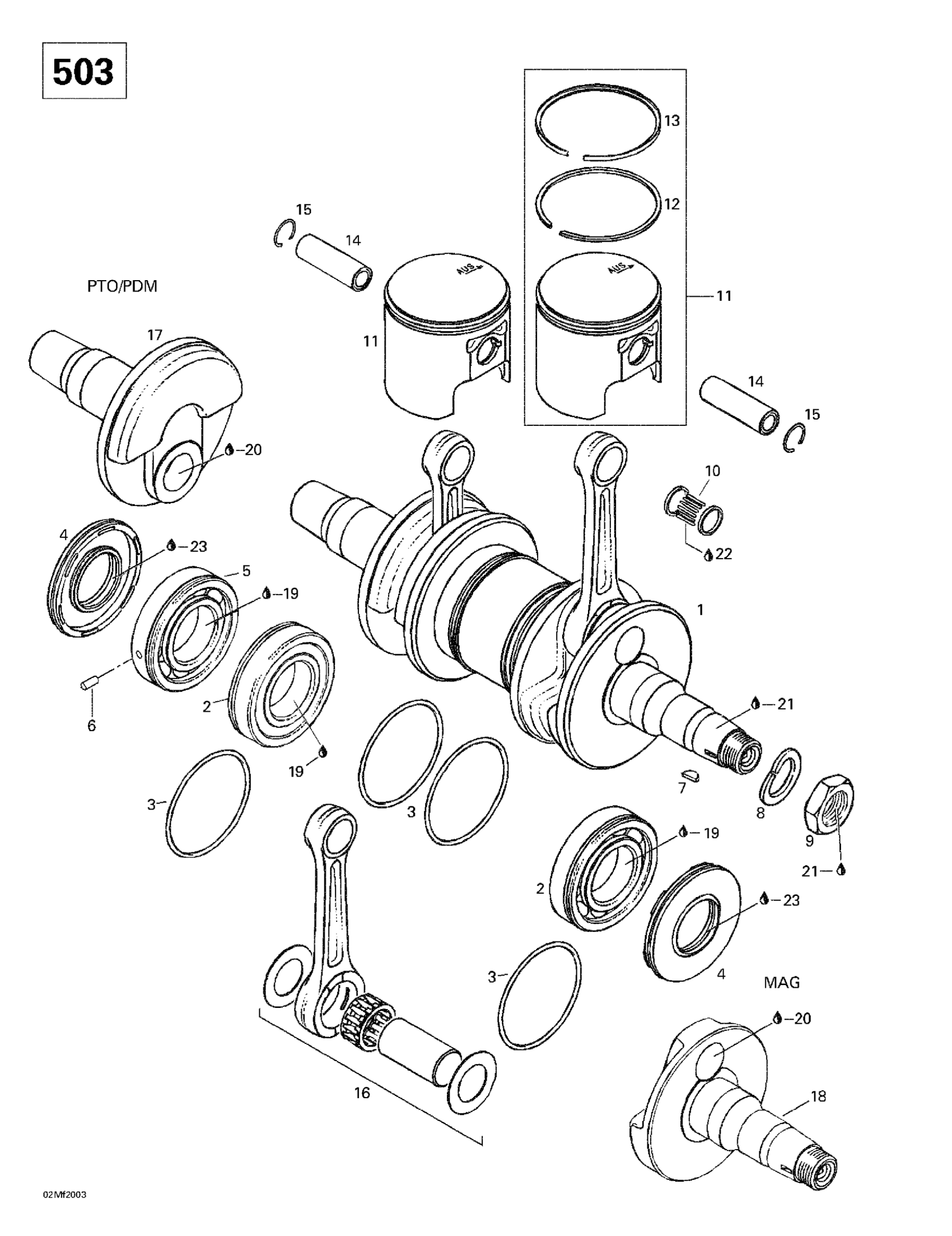

Ski-Doo Skandic 380/500, 2000 Crankshaft And Pistons (503) Diagram
#
Description
Price
1
Crankshaft Ass’Y | Includes 1 - 7. Skandic 500F. Skandic 500F (SWT).
420888390
Unavailable
1
REBUILD-CRANKSHAFT 503 97 - Call your local BRP dealership
421000155
Unavailable
2
Bearing_Ball This part replaces 290832231.
420832584
Unavailable
3
O-Ring, 64 mm X 2 mm
293300022
Unavailable
4
Oil Seal This part replaces 290831952.
420831952
Unavailable
5
BALL BEARING - Call your local BRP dealership
420832574
Unavailable
6
Dowel Pin
420929972
Unavailable
7
Woodruff Key
420246055
Unavailable
8
Lock Washer, 22 mm
420945759
Unavailable
9
Hex. Nut, M22 X 1.5
420842239
Unavailable
10
Needle Bearing
420832320
Unavailable
11
Piston 71.91, Std | 22 to 24 This part replaces 420888175.
420890070
Unavailable
Piston 72.16, 1st Oversize This part replaces 420888176.
420890071
Unavailable
Oversize Piston Ass'y. 72.42 mm | Skandic 500.
420887177
Unavailable
12
RECTANGULAR RING 72 MM, STD - Call your local BRP dealership
420915850
Unavailable
RECTANGULAR RING 72.25 MM, 1ST - Call your local BRP dealership
420915851
Unavailable
RECTANGULAR RING 72.5 MM, 2ND - Call your local BRP dealership
420915852
Unavailable
13
SEMI-TRAPEZ RING 72.0 MM, STD - Call your local BRP dealership
420815200
Unavailable
SEMI-TRAPEZ RING 72.25 MM, 1ST - Call your local BRP dealership
420815201
Unavailable
SEMI-TRAPEZ RING 72.5 MM, 2ND - Call your local BRP dealership
420815202
Unavailable
14
GUDGEON PIN - Call your local BRP dealership
420916186
Unavailable
15
Piston Circlip
420945735
Unavailable
16
Crankshaft Repair Kit | Skandic 500F. Skandic 500F (SWT).
420994564
Unavailable
17
CRANKSHAFT HALF PTO - Call your local BRP dealership
420818244
Unavailable
18
CRANKSHAFT HALF MAG - Call your local BRP dealership
420819020
Unavailable
19
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership
293800023
Unavailable
20
Sealant Loctite 648
219703000
Unavailable
22
OIL 2T CARB PREM. MINERAL QT/0,946L This part replaces 413802900.
779119
Unavailable
