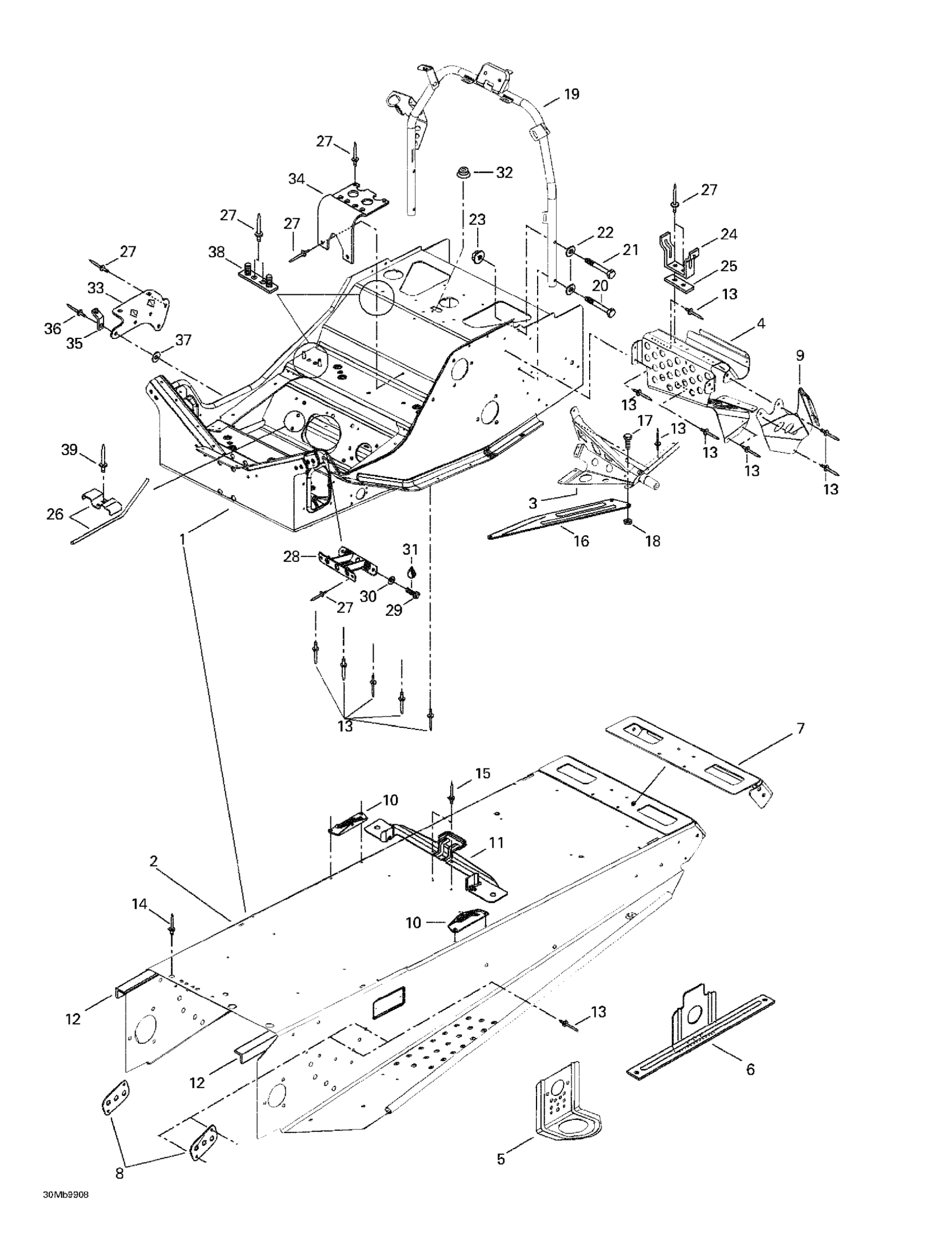

Ski-Doo Skandic 380/500, 1999 Frame And Accessories Diagram
#
Description
Price
1
Frame Ass'y | Includes 1 - 18.
518321649
Unavailable
2
Forming Frame (Tunnel)
518321671
Unavailable
3
RH Footrest Support
518320506
Unavailable
4
RH Front Footrest
518318933
Unavailable
LH Front Footrest
518318934
Unavailable
5
Front Bracket
518321495
Unavailable
6
RH Rear Bracket | Touring 380 F.
518316716
Unavailable
LH Rear Bracket | Touring 380 F.
518316715
Unavailable
7
Rear Cap
518321619
Unavailable
9
Upper Plate R.H
518308715
Unavailable
Upper Plate L.H
518308714
Unavailable
10
RH Tank Bracket
517266900
Unavailable
LH Tank Bracket
517267000
Unavailable
11
Seat Bracket
518317506
Unavailable
12
RH Frame Reinforcement
518316769
Unavailable
LH Frame Reinforcement
518316768
Unavailable
14
Pop Rivet 3/16"
390402300
Unavailable
15
Pop Rivet 3/16"
390402400
Unavailable
16
RH Reinf. Plate
518321698
Unavailable
LH Reinf. Plate
518321700
Unavailable
17
Hex. Screw M5 X 16 | 4X4
207151644
Unavailable
18
Hex. Flange Elastic Nut M5
233251414
Unavailable
19
Handle Steering Support
518321428
Unavailable
22
Flat Washer 6 mm
234061410
Unavailable
23
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
26
Guide Rope
517276100
Unavailable
28
Reinf. Plate
518304741
Unavailable
30
Lock Washer 8 mm
234181401
Unavailable
31
Loctite 271, 10 ml
293800005
Unavailable
33
Muffler Support
518316704
Unavailable
Muffler Support | Formula DLX 500 F.
518206300
Unavailable
34
AIR INTAKE SUPPORT - Call your local BRP dealership
518310400
Unavailable
38
Support Plate
518315300
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
