Partiron

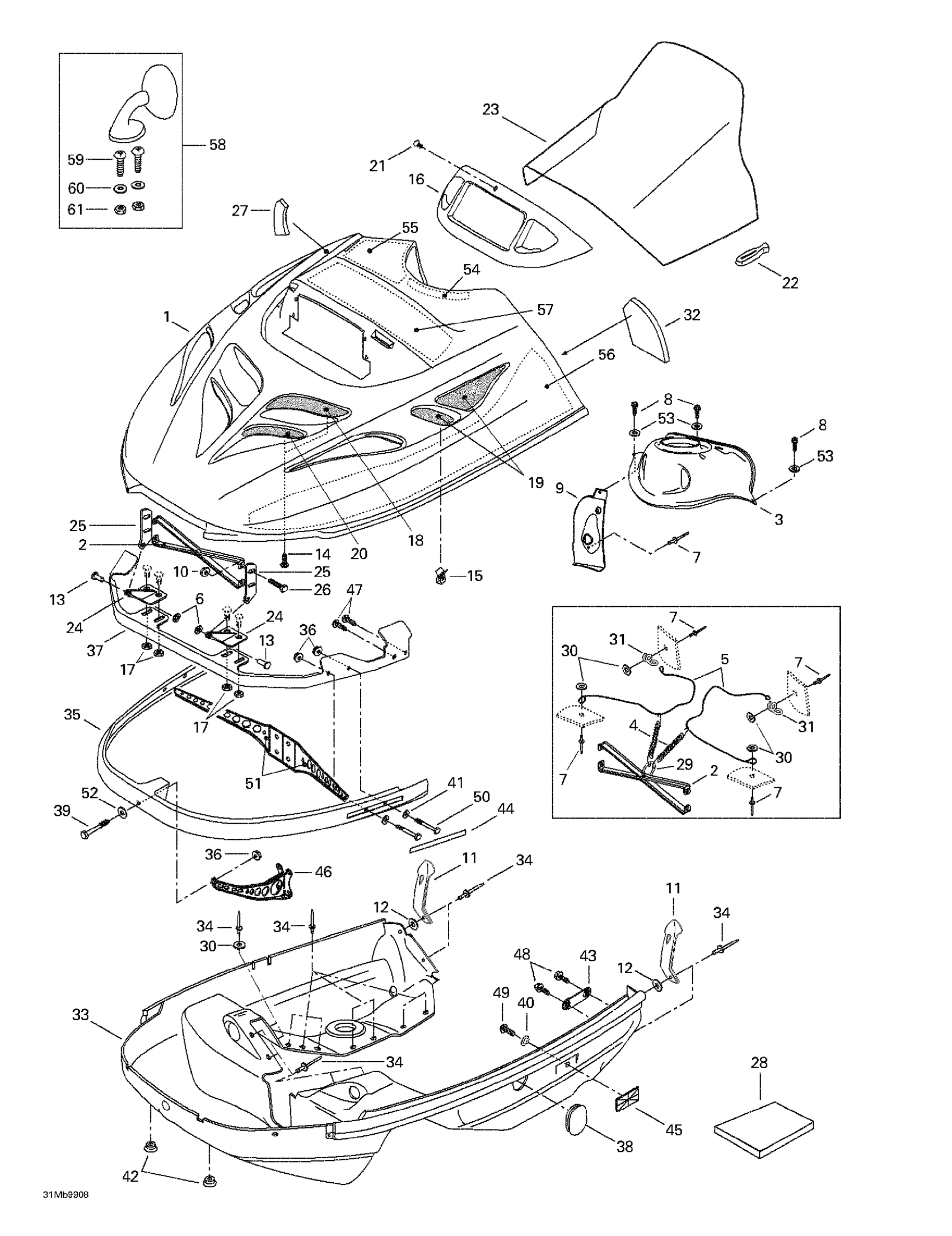

Ski-Doo Skandic 380/500, 1999 Cab, Console Diagram

#

Description
Price

1

Hood

517302197

Unavailable

2

Hood Reinforcement

517278100

Unavailable

3

Dash-Swirch

517302159

Unavailable

4

Spring

414763300

Unavailable

5

RETAINER CABLE - Call your local BRP dealership

415093900

Unavailable

6

Push Nut

389804300

$0.43

7

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

8

Forming Screw M5 x 16

250000676

$0.83

9

Handle Dash | MX Z 380 F.

572052101

Unavailable

10

Hex. Flange Elastic Nut M5

233251414

Unavailable

11

Hood Latch

570027100

Unavailable

12

Washer

517124300

Unavailable

13

FLAT HEAD STEEL RIVET - Call your local BRP dealership

390906200

Unavailable

14

HEX. FLANGED SCREW #8 X 3/8 - Call your local BRP dealership

732601210

Unavailable

15

Edge Clip

517302785

Unavailable

16

Lamp Moulding

572079200

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

18

LH Upper Grill | Formula Deluxe 380.

517277100

Unavailable

LH Upper Grill

517277102

Unavailable

19

Side Grill (Black)

517280200

Unavailable

20

LH Front Grill | Formula Deluxe 380.

517265900

Unavailable

LH Front Grill

517265903

Unavailable

21

Black, Dart

414644300

$0.78

22

Windshield Latch

570023800

Unavailable

23

High Windshield

414887200

Unavailable

24

Welded Lower Hinge

517289900

Unavailable

25

UPPPER HINGE - Call your local BRP dealership

517261100

Unavailable

26

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

27

R.H Rear Foam

414883800

Unavailable

28

Acoustic Foam

414632400

Unavailable

Acoustic Foam

414631900

Unavailable

29

RING - Call your local BRP dealership

415058300

Unavailable

30

Washer

517124300

Unavailable

31

Bracket

517262800

Unavailable

32

LH Rear Foam

414883700

Unavailable

33

Bottom Pan (Black)

572076207

Unavailable

34

Pop Rivet 3/16"

390906800

Unavailable

35

Front Bumper

517265400

Unavailable

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

37

Hinge Bracket

517296600

Unavailable

38

BOTTOM PAN CAP (BLACK) - Call your local BRP dealership | Formula Deluxe 380 F.

570053702

Unavailable

39

Hex. Screw M6 X 40

207064044

$1.48

40

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

41

Flat Washer

224061121

$0.44

42

CAP - Call your local BRP dealership

572072100

Unavailable

43

Side Bracket

517267100

Unavailable

44

Yellow, LH/RH Rear Reflector Kit

861805523

$25.35

45

REFLECTOR, AMBER - Call your local BRP dealership

414510200

Unavailable

46

Front Support

517294500

Unavailable

47

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

48

Hex. Flange Screw M6 X 16

210261650

$1.22

49

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

50

Hex. Screw M6 X 30

207063044

Unavailable

51

RH Support

517295100

Unavailable

LH Support

517295000

Unavailable

52

Flat Washer

224061201

Unavailable

53

Washer | DS 650 X

391301600

Unavailable

54

Foam

415050900

Unavailable

55

Upper Foam

414975000

Unavailable

56

RH Lower Foam

415048700

Unavailable

LH Lower Foam

414883500

Unavailable

57

Center Foam

414985100

Unavailable

58

RH MIRROR - Call your local BRP dealership

414971910

Unavailable

LH MIRROR - Call your local BRP dealership

414972010

$37.66

59

Screw M4 x 20 | Legend 380 F. Legend 550 F.

222842065

Unavailable

60

Washer

517124300

Unavailable

61

Elastic Stop Nut M4

232541414

$0.48
