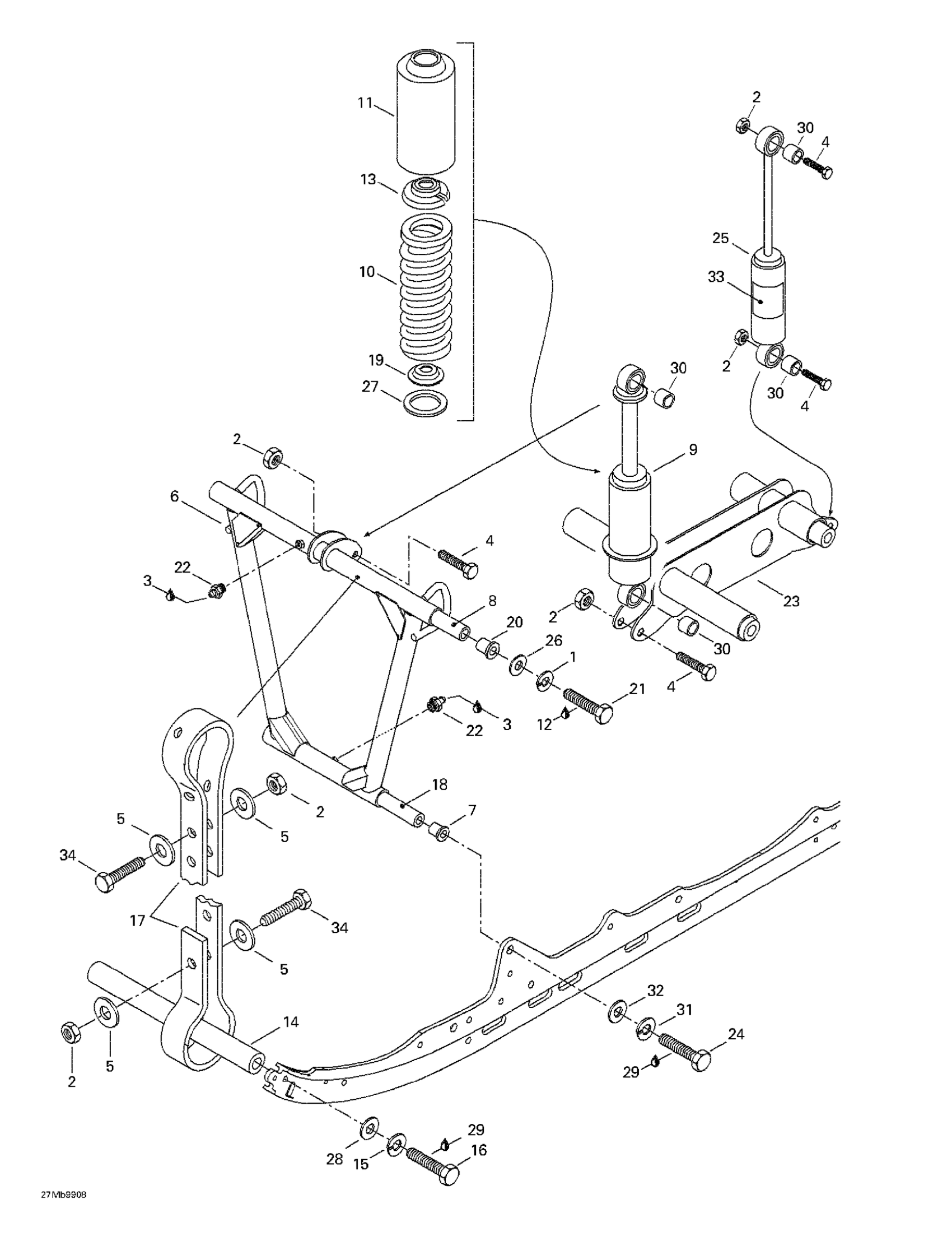

Ski-Doo Skandic 380/500, 1999 Front Arm, Rear Suspension Diagram

#

Description
Price

1

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

2

Hex. Elastic Stop Nut M8

232581414

Unavailable

3

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

4

Hex. Screw M8 X 40

207084044

Unavailable

5

WASHER - Call your local BRP dealership

517078700

Unavailable

6

Welded Front Arm

503189222

Unavailable

7

Cushion

503188940

Unavailable

8

SHAFT - Call your local BRP dealership

503190387

Unavailable

9

Shock

503188903

Unavailable

10

Spring

503189000

Unavailable

11

Protector

503193663

Unavailable

12

Loctite 243, 10 ml

293800060

$20.77

13

Spring Stopper

706200881

$10.30

14

Axle

503151600

$15.35

15

Lock Washer 8 mm

234181401

Unavailable

16

Hex. Screw M8 X 30

207183044

Unavailable

17

Stopper Strap

570069300

Unavailable

18

Shaft

503182000

Unavailable

19

GUIDE_SPRING - Call your local BRP dealership

503165100

$1.91

20

Bushing

503189324

$11.17

21

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

22

Grease Fitting

408200700

Unavailable

23

Shock Support | Summit 700 HM.

503173300

Unavailable

24

HEX. SCREW M12 X 60 - Call your local BRP dealership

207026044

Unavailable

25

Rear Shock | Touring 380 F.

503188902

Unavailable

Shock (Europe) | Skandic 500.

503189262

Unavailable

26

Flat Washer 10 mm

234001410

Unavailable

27

WASHER - Call your local BRP dealership

503184400

$2.75

28

Flat Washer 8 mm

234081410

Unavailable

29

Loctite 271, 10 ml

293800005

Unavailable

30

CUSHION - Call your local BRP dealership

414802600

Unavailable

CUSHION - Call your local BRP dealership

414802600

Unavailable

31

Lock Washer 12 mm

224721218

Unavailable

32

Flat Washer 12 mm

234021410

$0.68

33

HPG Decal (Europe)

516000182

Unavailable

34

Hex. Screw M8 X 25

207182544

Unavailable
