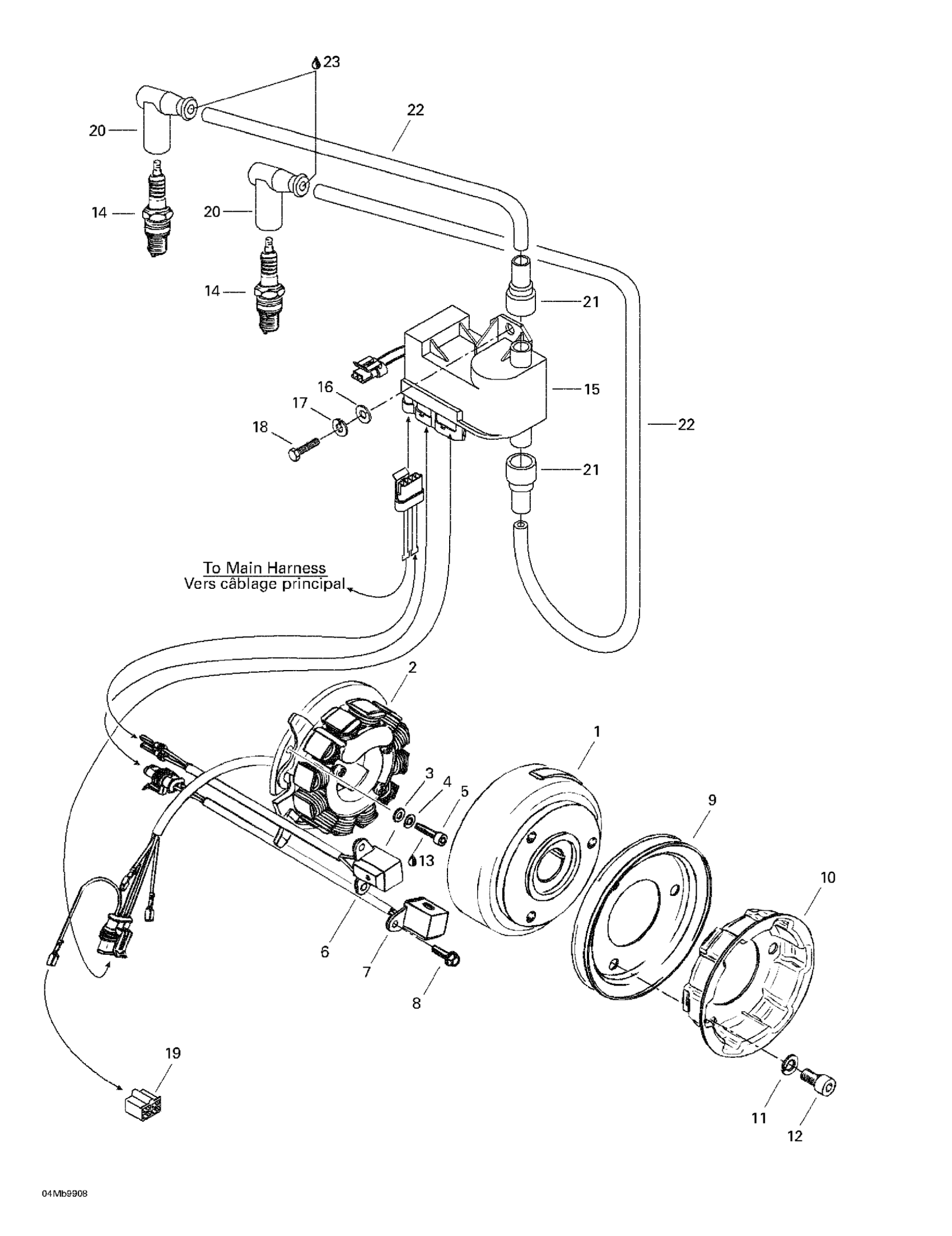

Ski-Doo Skandic 380/500, 1999 Magneto Diagram

#

Description
Price

1

Magneto Ducati 12V, 240W | Includes 1 - 6.

420887653

Unavailable

1

Flywheel

420996824

$559.99

2

STATOR PLATE A - Call your local BRP dealership

420886603

Unavailable

3

Washer 5.3

420927574

Unavailable

4

Lock Washer

420945750

Unavailable

5

SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership

420840515

Unavailable

6

PICK-UP - Call your local BRP dealership

420665160

Unavailable

7

Pick-Up

420665163

Unavailable

8

Taptite Screw M5 X 16

420941928

Unavailable

9

V-Belt Pulley

420980486

Unavailable

10

Rope Sheave

420852414

Unavailable

11

Lock Washer

420845311

Unavailable

12

SOCKET HEAD SCREW M8 X 12 - Call your local BRP dealership

420841522

Unavailable

13

Loctite 243, 10 ml

293800060

$20.77

14

Spark Plug NGK BR9ES This part replaces 414961100.

219703120

Unavailable

15

Calibration Module | Formula Deluxe 380.

512059002

Unavailable

Calibration Module | MX Z 500 F. Formula DLX 500 F.

515175386

Unavailable

16

Flat Washer 6 mm

234061410

Unavailable

17

Lock Washer M6, Black

234161471

$0.52

18

Hex. Screw M6 X 16

207161644

Unavailable

19

FEMALE HOUSING - Call your local BRP dealership

409204900

Unavailable

20

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

21

PROTECTION CAP - Call your local BRP dealership

515174900

Unavailable

22

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

23

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
