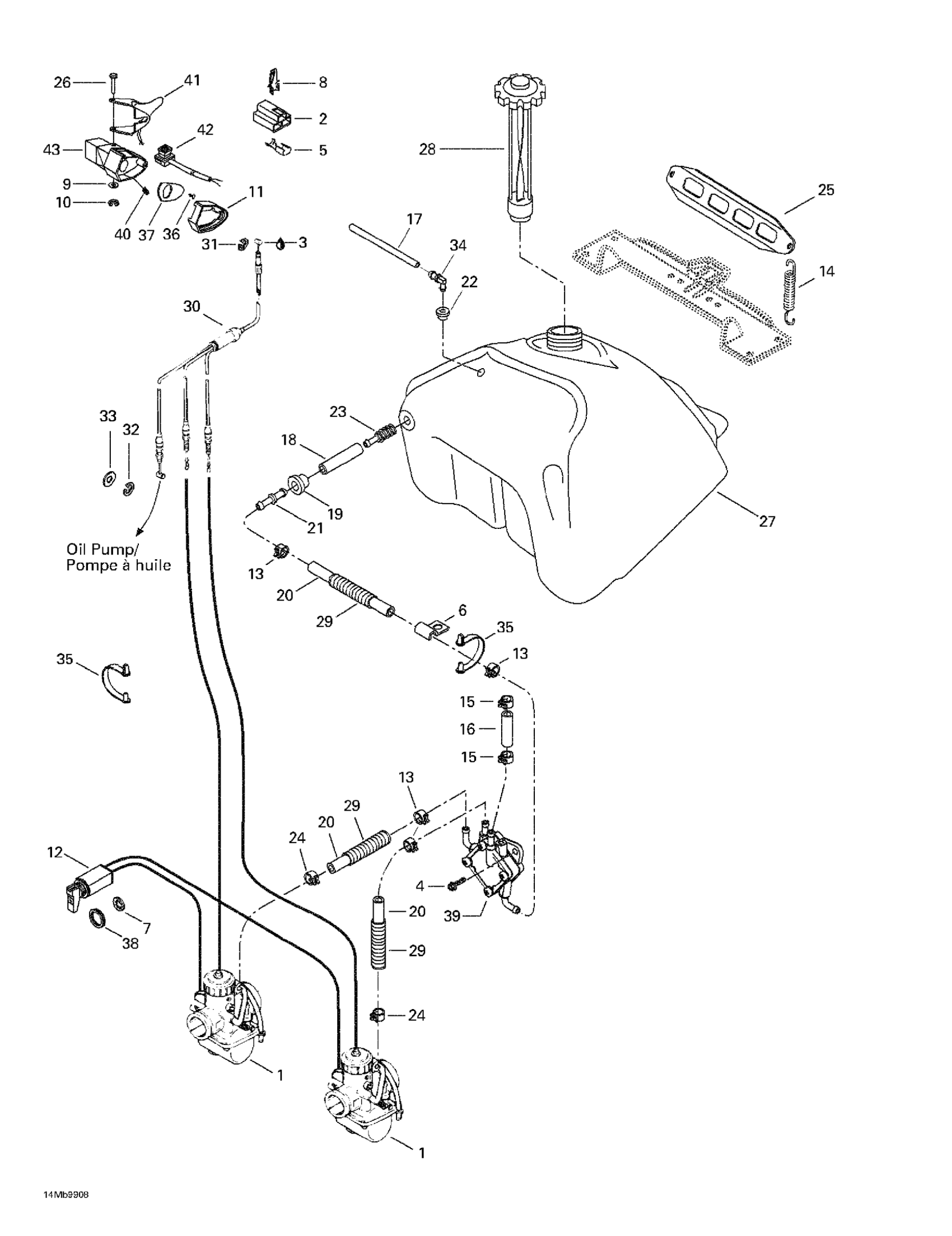

Ski-Doo Skandic 380/500, 1999 Fuel System Diagram

#

Description
Price

1

Carburetor VM 30-196 | Includes 1 - 35. Formula Deluxe 380.

403138563

Unavailable

Carburetor VM 34 532 (PTO) | Includes 1 - 36. Formula Deluxe 500.

403138541

Unavailable

Carburetor VM 34 533 (MAG) | Formula Deluxe 500.

403138542

Unavailable

2

Female Terminal Housing (3 circuits)

409008500

Unavailable

3

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

4

Hex. Flange Screw M6 X 16

210261650

$1.22

5

FEMALE TERMINAL - Call your local BRP dealership

515175253

Unavailable

6

CLIP - Call your local BRP dealership

415018200

$2.89

7

Lock Washer, Interior Teeth

394103300

Unavailable

8

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

9

Flat Washer M5, Stainless

234051600

$0.64

10

Circlip | Model-RS

414439000

Unavailable

11

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

12

CHOKE CABLE - Call your local BRP dealership

414967000

Unavailable

13

Spring Clamp

414554800

$0.83

14

SPRING - Call your local BRP dealership

517182100

Unavailable

15

Spring Clamp

414415200

$0.83

16

Hose

219704549

Unavailable

17

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Grommet

570045500

Unavailable

20

Polyurethane Hose 10000Mm Long

219704410

Unavailable

21

Male Connector

414518500

$3.50

22

Grommet

709200285

$8.38

23

Fuel Filter

414865700

$8.39

24

Spring Clamp

414420700

Unavailable

25

Fuel Tank Bracket

517249200

Unavailable

26

Lever Pin

414438700

$11.14

27

Fuel Tank

572108900

Unavailable

28

Fuel Tank Cap

572161200

Unavailable

29

Tubing 10 MM 1000MM Long

219704407

Unavailable

30

THROTTLE CABLE AND HOUSING - Call your local BRP dealership

414883100

Unavailable

31

Circlip

414274500

Unavailable

32

Circlip

414753500

$0.59

33

Flat Washer 8 mm, Nylon

234081100

$1.00

34

Male Connector

414814100

$2.18

35

CABLE CLIP - Call your local BRP dealership

414379300

$4.58

36

Screw

414473200

$3.69

37

Plate

512060390

$9.31

38

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

39

Fuel Pump

403801000

Unavailable

40

Socket Set Screw M8 X 10

414440800

$4.00

41

Handle Ass’Y

512059624

Unavailable

Handle Ass'y

512060214

Unavailable

42

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

43

Throttle Housing

512060603

$10.57
