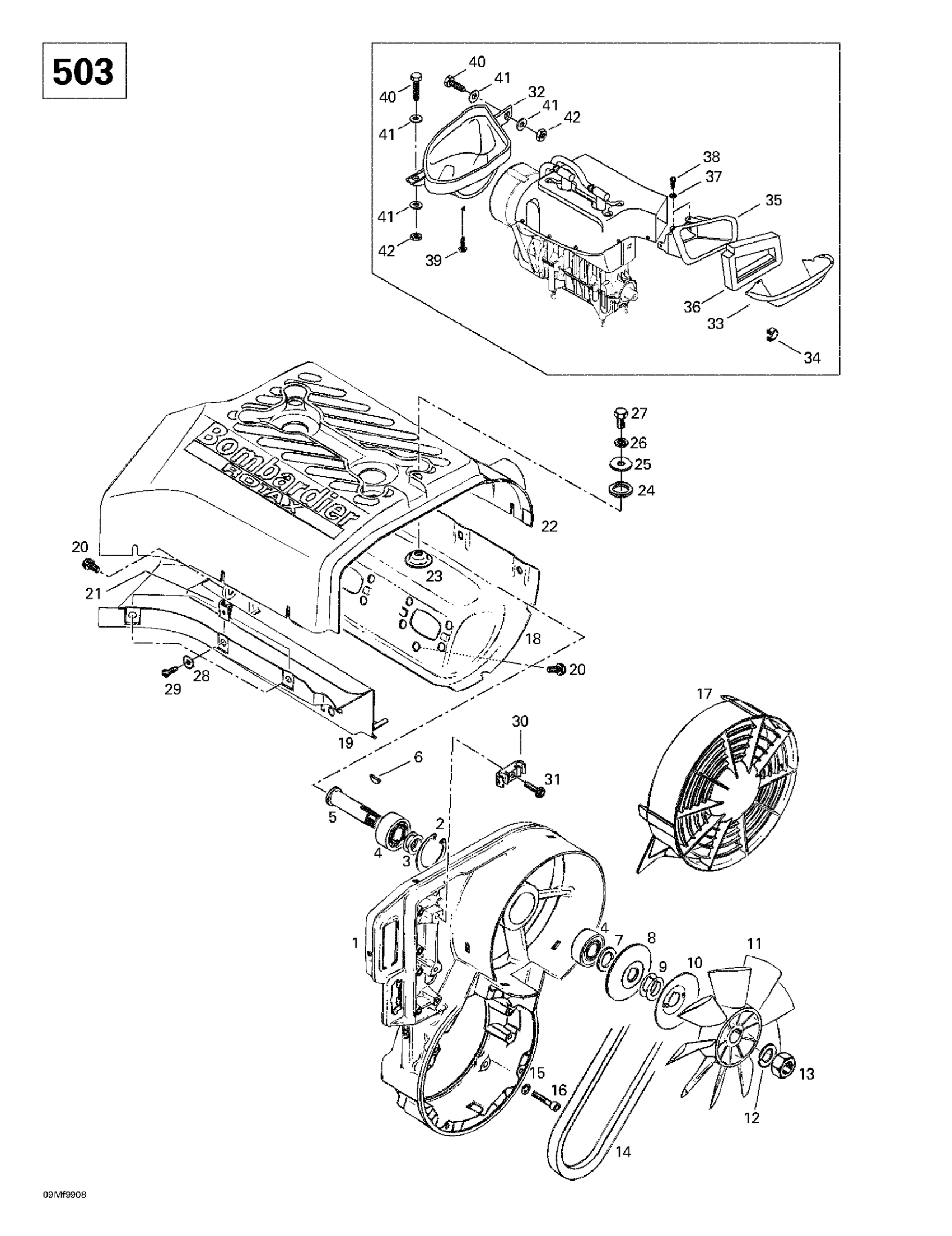

Ski-Doo Skandic 380/500, 1999 Cooling System And Fan (503) Diagram

#

Description
Price

1

Fan Housing This part replaces 420912203.

420912230

Unavailable

2

Lock Ring

420945880

Unavailable

3

Shim

420244585

Unavailable

4

Ball Bearing

420832161

Unavailable

5

Fan Axle This part replaces 420937940.

420937941

Unavailable

6

Woodruff Key

420246015

Unavailable

7

Spacer Bushing

420827650

Unavailable

8

Flange

420980496

Unavailable

9

Shim 0.5 mm

420827080

Unavailable

Shim 0.2 mm

420827082

Unavailable

10

Protection Washer

420980523

Unavailable

11

FAN - Call your local BRP dealership

420866292

Unavailable

12

Lock Washer

420945756

Unavailable

13

Nut M16 This part replaces 420942285.

420942289

Unavailable

14

V-Belt

414630800

$37.66

15

WASHER-LOCK DIN.128 - Call your local BRP dealership

420945751

Unavailable

16

Socket Head Screw M6 X 30

205063044

Unavailable

17

FAN COVER - Call your local BRP dealership

420975695

$26.89

18

Cylinder Cowl, Exhaust Side | Formula Deluxe 500.

420810543

Unavailable

19

Cylinder Cowl (Carburator Side) | Formula Deluxe 500.

420810545

Unavailable

20

TAPTITE SCREW M6 X 12 - Call your local BRP dealership

420240385

Unavailable

21

SPRING NUT U #10-24 - Call your local BRP dealership

417300005

Unavailable

22

Cylinder Cowl | MX Z 500 F. Formula DLX 500 F.

420810603

Unavailable

23

Cup Washer

420827817

Unavailable

24

Rubber Washer

420960865

Unavailable

25

Washer This part replaces 420227935.

420227936

Unavailable

26

Washer-Lock Din.128

420945832

Unavailable

27

Hex. Screw M8 x 16

207181644

$0.87

28

Washer | Skandic 500.

420921180

Unavailable

29

Tapping Screw M4.8 X 16

417300006

Unavailable

30

CLAMP - Call your local BRP dealership

420860940

Unavailable

31

SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.

420941251

Unavailable

32

Inlet Duct

572097800

Unavailable

33

Air Deflector

572083800

Unavailable

34

Clip

414479100

$1.86

35

Outlet Duct

572083900

Unavailable

36

Seal

415036500

Unavailable

37

SERRATED LOCK WASHER M5 - Call your local BRP dealership

732900047

Unavailable

38

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

39

Tapping Screw

732601292

Unavailable

40

Hex. Screw M5 X 16 | 4X4

207151644

Unavailable

41

Washer

517124300

Unavailable

42

Elastic Stop Nut M5

232551414

Unavailable
