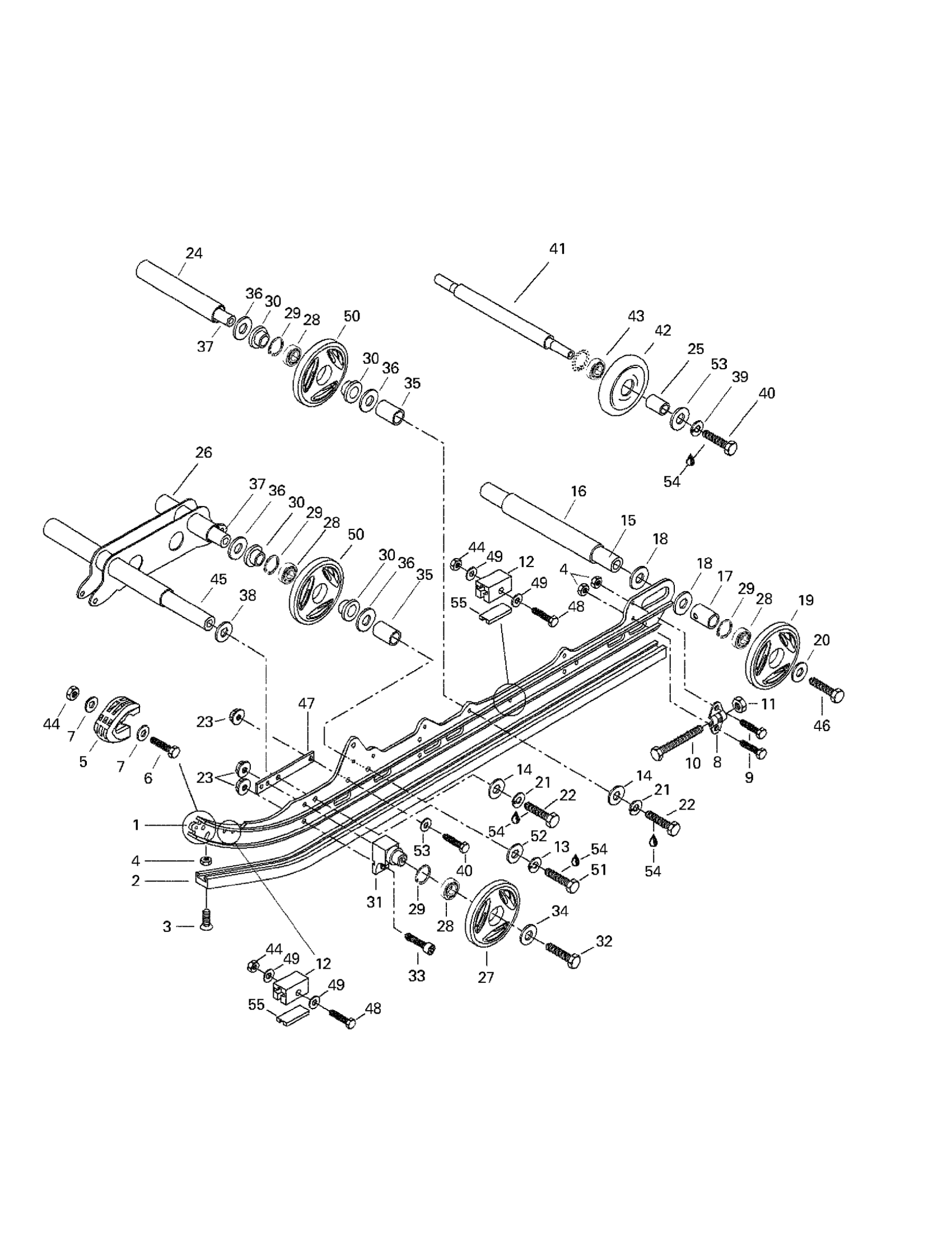

Ski-Doo Skandic 380/500, 1998 Rear Suspension Diagram

#

Description
Price

1

Runner (136")

503175600

Unavailable

2

Slide Shoe

605355362

Unavailable

3

Phillips Screw M6 X 25

208562560

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

Unavailable

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

10

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Rubber Stopper

570063000

Unavailable

13

Lock Washer 12 mm

224721218

Unavailable

14

Flat Washer 10 mm

234001410

Unavailable

15

REAR AXLE - Call your local BRP dealership

503162400

$83.05

16

Spacer

503155500

Unavailable

17

Outer Spacer

503189809

$15.35

18

SHIM - Call your local BRP dealership

504108200

Unavailable

19

Wheel 165 (Black)

570066731

Unavailable

20

Washer

503183300

$5.68

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

22

Hex. Screw M10 X 35

207103544

Unavailable

23

Hex. Flange Elastic Nut M8

233281414

Unavailable

24

Spacer

503153100

Unavailable

25

Spacer

572048300

Unavailable

26

Shock Support | Summit 700 HM.

503173300

Unavailable

27

Wheel 135 | Includes 18 to 19

503190797

Unavailable

28

Ball Bearing

293350115

Unavailable

29

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

30

Cushion

503189534

Unavailable

31

SUPPORT - Call your local BRP dealership

503190389

Unavailable

32

HEX. SCREW M8 X 85 - Call your local BRP dealership

207088544

$1.64

33

Hex. Screw M8 X 25

207182544

Unavailable

34

Washer

503183100

$3.08

35

Spacer | Formula 500. Formula 500 Deluxe.

503151000

Unavailable

36

WASHER - Call your local BRP dealership

503154000

$4.20

37

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

38

Hardened Washer

503175400

Unavailable

39

Lock Washer 8 mm

234181401

Unavailable

40

Hex. Screw M8 X 30

207183044

Unavailable

41

Wheel Support Axle

503153600

Unavailable

42

Idler Wheel | Includes 48 - 49.

572043500

Unavailable

43

Ball Bearing

405404600

$24.58

44

Elastic Stop Nut M5

232551414

Unavailable

45

Lower Axle

503174900

Unavailable

46

Hex. Screw With Nylon

250000019

Unavailable

47

Reinforcement Plate

503181800

Unavailable

48

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

49

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

50

Wheel 135 | Includes 18 to 19

503190797

Unavailable

51

Hex. Screw M12 x 40

222024065

Unavailable

52

Flat Washer 12 mm

234021410

$0.68

53

Flat Washer 8 mm

234081410

Unavailable

54

Loctite 271, 10 ml

293800005

Unavailable

55

Reinforcement Stopper

572084800

$5.25
