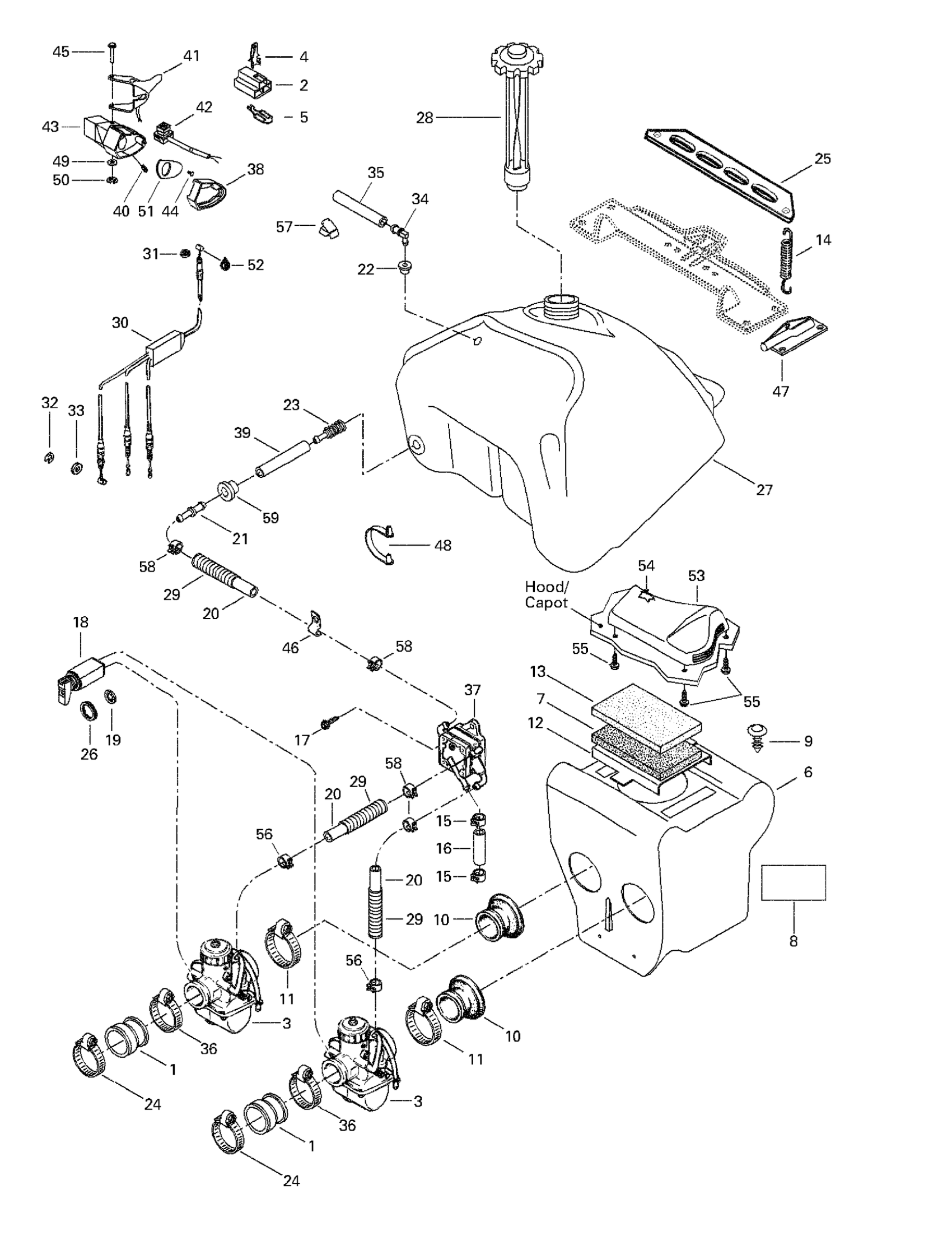

Ski-Doo Skandic 380/500, 1998 Fuel System Diagram

#

Description
Price

1

CARBURATOR ADAPTOR - Call your local BRP dealership

570066800

Unavailable

2

Female Terminal Housing (3 circuits)

409008500

Unavailable

3

Carburetor VM 30-193 | Includes 1 - 35.

403133900

Unavailable

Carburetor VM 34 513 (PTO) | Includes 1 - 36.

403135700

Unavailable

Carburetor VM 34 514 (MAG)

403135800

Unavailable

4

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

5

Female Terminal PACKARD

561503200

Unavailable

6

Air Silencer Ass'y | Includes 6 - 13.

580667105

Unavailable

Air Silencer | Includes 6 - 13.

580667104

Unavailable

7

Air Filter

415037600

Unavailable

8

Warning Decal

414161500

Unavailable

9

Black, Dart

414644300

$0.78

10

Adaptor 34 mm

570043600

Unavailable

11

TRIDON GEAR CLAMP - Call your local BRP dealership

408801600

Unavailable

12

Intake Grill

517285900

Unavailable

13

Lower Foam

415106000

Unavailable

14

SPRING - Call your local BRP dealership

517182100

Unavailable

15

Spring Clamp

414415200

$0.83

16

Hose

219704549

Unavailable

17

Hexagonal Head Screw

210262050

$1.74

18

CHOKE CABLE - Call your local BRP dealership

414967000

Unavailable

19

Lock Washer, Interior Teeth

394103300

Unavailable

20

Polyurethane Hose 10000Mm Long

219704410

Unavailable

21

Male Connector

414518500

$3.50

22

Grommet

709200285

$8.38

23

Fuel Filter

414865700

$8.39

24

COLLAR - Call your local BRP dealership

414532700

Unavailable

25

Fuel Tank Bracket

517249200

Unavailable

26

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

27

Fuel Tank

572108900

Unavailable

28

Fuel Tank Cap

572161200

Unavailable

29

Tubing 10 MM 1000MM Long

219704407

Unavailable

30

THROTTLE CABLE AND HOUSING - Call your local BRP dealership

414883100

Unavailable

31

Circlip

414274500

Unavailable

32

Circlip

414753500

$0.59

33

Flat Washer 8 mm, Nylon

234081100

$1.00

34

Male Connector

414814100

$2.18

35

Was 415080100 Fuel Line Primer 3,2mm

219704409

Unavailable

36

Gear Clamp (47 mm)

408803800

Unavailable

37

Fuel Pump

403801000

Unavailable

38

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Socket Set Screw M8 X 10

414440800

$4.00

41

Handle Ass’Y

512059624

Unavailable

Handle Ass'y

512060214

Unavailable

42

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

43

Throttle Housing

512060603

$10.57

44

Screw

414473200

$3.69

45

Lever Pin

414438700

$11.14

46

CLIP - Call your local BRP dealership

415018200

$2.89

47

RH Tank Bracket

414266900

Unavailable

LH Tank Bracket

414267000

Unavailable

48

CABLE CLIP - Call your local BRP dealership

414379300

$4.58

49

Flat Washer M5, Stainless

234051600

$0.64

50

Circlip | Model-RS

414439000

Unavailable

51

Plate

512060390

$9.31

52

Dielectric Grease, 150 g This part replaces 413701700.

293550004

Unavailable

53

INTAKE COVER - Call your local BRP dealership

572077900

Unavailable

54

Air Filter

414972600

$58.43

55

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

56

Spring Clamp

414420700

Unavailable

57

Clip

414227300

$1.45

58

Spring Clamp

414554800

$0.83

59

Grommet

570045500

Unavailable

60

High Altitude Kit (Not Shown) | Skandic 380.

861763800

Unavailable

High Altitude Kit (Not Shown) | Skandic 500.

861763700

Unavailable
