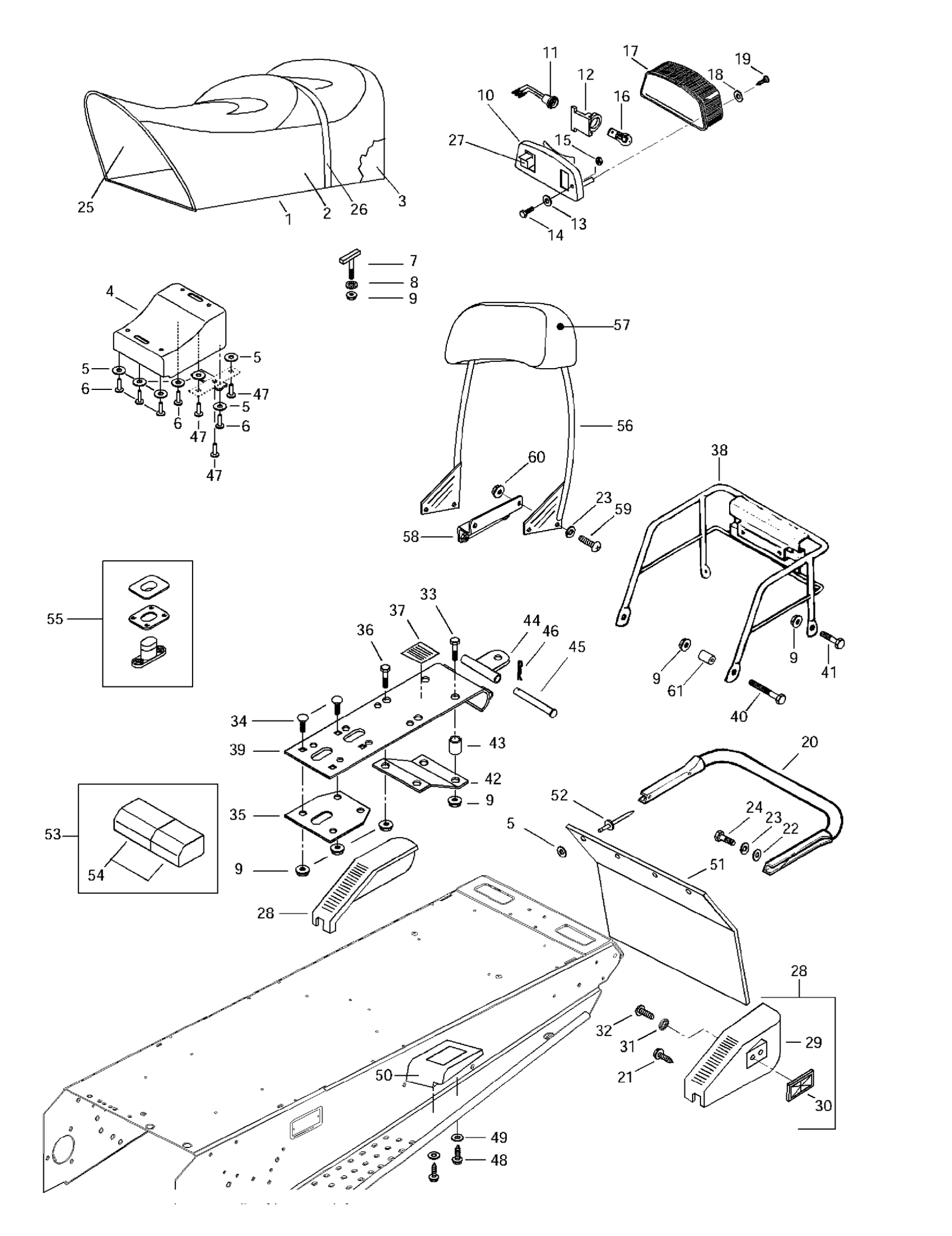

Ski-Doo Skandic 380/500, 1997 Seat And Accessories Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Cover(2 pass.)

415037003

Unavailable

3

Foam Seat(2 pass.)

414924600

Unavailable

4

Rear Trunk | GT 700.

572051200

Unavailable

5

Flat Washer

517225900

$0.17

6

Pop Rivet 3/16"

390906800

Unavailable

7

«T» Bolt

732601221

Unavailable

8

Push Nut

732610072

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

10

Taillamp Housing

414979400

$32.99

11

Socket

414979410

Unavailable

12

Rubber Damper

414979411

Unavailable

13

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

14

Hex. Screw M5 X 30

207053044

Unavailable

15

Hex. Flange Elastic Nut M5

233251414

Unavailable

16

Bulb

520000758

$7.49

17

Lens

414513700

Unavailable

18

Washer - Call your local BRP dealership

414516400

Unavailable

19

Phillips Tapping Screw M3.9 X 25

209632540

Unavailable

20

Rear Bumper

517243800

Unavailable

21

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

22

Flat Washer 8 mm

234081410

Unavailable

23

Lock Washer 8 mm

234181401

Unavailable

24

Hex. Screw M8 X 20

207182044

$0.61

25

Sub-Seat

572059600

Unavailable

26

Belt-Seat

414943300

Unavailable

27

Block Dimmer Switch

572150800

Unavailable

28

RH Moulding Ass'y (Cargo)

580642800

Unavailable

LH Moulding Ass'y (Cargo)

580642900

Unavailable

29

RH Moulding

572059500

Unavailable

LH Moulding

572059400

Unavailable

30

REFLECTOR, RED - Call your local BRP dealership

414510100

Unavailable

31

WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership

224151101

Unavailable

32

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208651041

Unavailable

33

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065044

Unavailable

34

Carriage Bolt M6 X 20 | DS 650 X

207762044

Unavailable

35

Inner Plate

517256100

Unavailable

36

Hex. Screw M6 X 18

207161844

Unavailable

37

Instruction Label (Hitch)

414998500

Unavailable

38

Rack | GT

517273100

Unavailable

39

Hitch Bracket

517275200

Unavailable

40

Hex. Screw M6 X 40

207064044

$1.48

41

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

42

Reinforcement | Europe

517223500

Unavailable

43

SPACER - Call your local BRP dealership | Europe

517191700

Unavailable

44

Hitch Plate Welded

511000521

$14.54

45

CLEVIS PIN - Call your local BRP dealership

505001700

Unavailable

46

Cotter Pin

371800200

$0.51

47

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

48

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

Unavailable

49

Flat Washer

224061121

$0.44

50

RH Rear Footrest | Europe

414975300

Unavailable

LH Rear Footrest | Europe

414975400

Unavailable

51

Snow Guard | Formula Deluxe 380 F.

572059700

Unavailable

52

Pop Rivet 3/16"

293150100

$1.08

53

Tool Box Kit (With Tools) | Formula S.

529029800

Unavailable

Tool Kit

529027900

Unavailable

54

TOOLS BOX - Call your local BRP dealership

708200043

Unavailable

55

SEAT BUCKLE - Call your local BRP dealership

414728000

Unavailable

56

Backrest Ass'y

415036800

Unavailable

57

Backrest Cover

415036803

Unavailable

58

<> Plate

517287200

Unavailable

59

Hex. Screw M8 X 20

236282084

Unavailable

60

Hex. Flange Elastic Nut M8

233281414

Unavailable

61

Spacer

517185600

Unavailable
