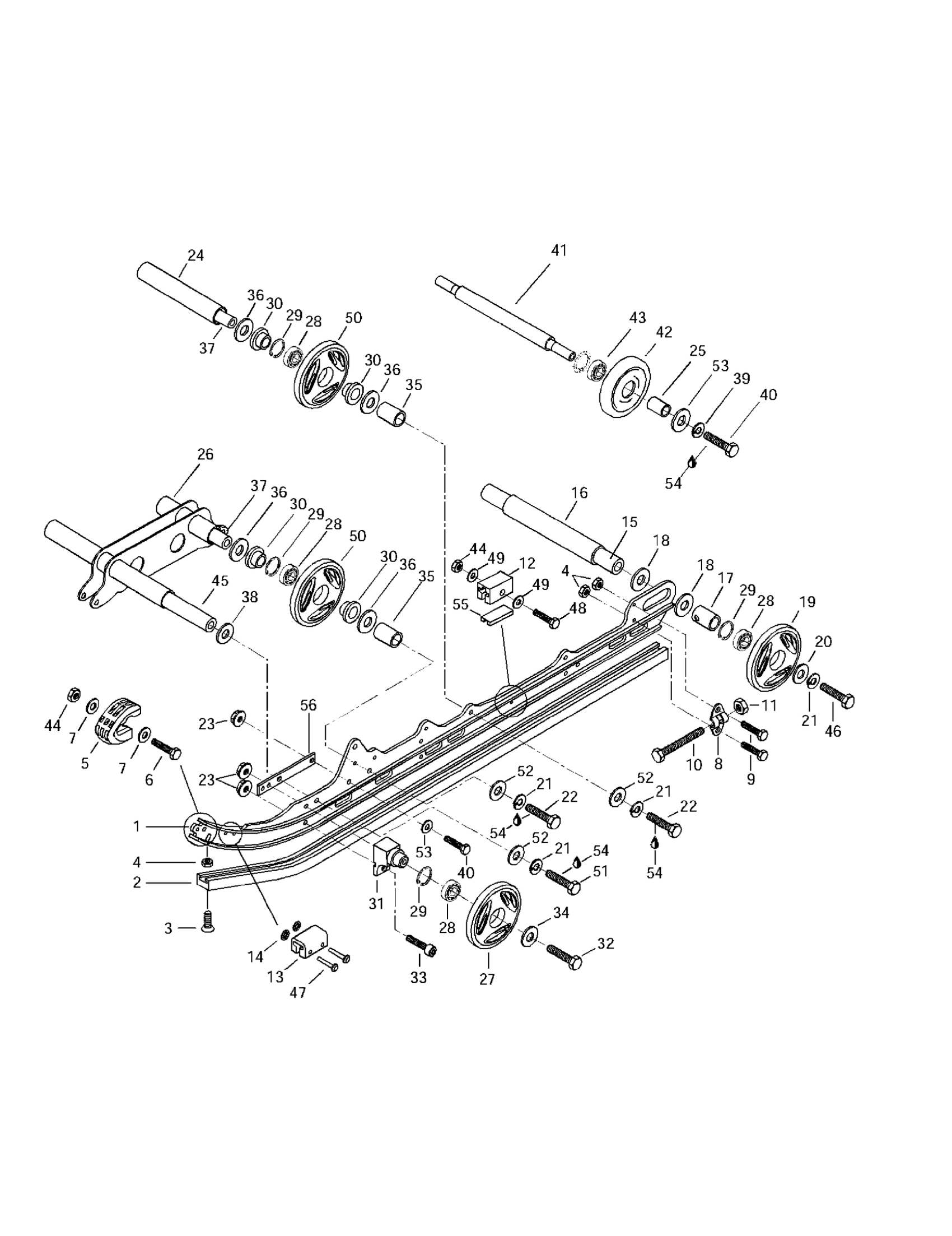

Ski-Doo Skandic 380/500, 1997 Rear Suspension Diagram

#

Description
Price

1

Runner (136") | Grand Touring 500.

503172400

Unavailable

2

Slide Shoe

605355362

$27.66

3

Phillips Screw M6 X 25

208562560

$1.92

4

Elastic Stop Nut M6

232561414

$1.55

5

RUNNER PROTECTOR - Call your local BRP dealership

572075400

Unavailable

6

SCREW-HEX.CAP DIN.933 - Call your local BRP dealership

222052565

Unavailable

7

Washer | DS 650 X

391301600

$0.48

8

Tensioner

503155300

Unavailable

9

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

10

Hex. Screw M10 x 110 | Formula Deluxe 670.

732601017

Unavailable

11

Elastic Locking Nut M10 X 1.5

233601416

$1.68

12

Rubber Stopper

570063000

Unavailable

13

Rubber Stopper

570048000

Unavailable

14

Push Nut

389804300

$0.43

15

REAR AXLE - Call your local BRP dealership

503162400

Unavailable

16

Spacer

503155500

Unavailable

17

Outer Spacer

503189809

$15.35

18

SHIM - Call your local BRP dealership

504108200

Unavailable

19

Wheel 165 (Black)

570045321

Unavailable

20

Washer

503183300

$5.68

21

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

22

Hex. Screw M10 X 35

207103544

$1.42

23

Hex. Flange Elastic Nut M8

233281414

$1.14

24

Spacer

503153100

Unavailable

25

Spacer

572048300

Unavailable

26

Shock Support | Summit 700 HM.

503173300

Unavailable

27

Wheel 135 | Includes 18 to 19

503190797

$32.28

28

Ball Bearing

293350115

$11.15

29

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

30

Cushion

503189534

$4.55

31

Support | Formula 500. Formula 500 Deluxe. Formula 583.

503163600

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Socket Head Screw M8 X 25

205082544

$0.92

34

Washer

503183100

$3.08

35

Spacer | Formula 500. Formula 500 Deluxe.

503151000

Unavailable

36

WASHER - Call your local BRP dealership

503154000

Unavailable

37

Axle Wheel | Formula 500. Formula 500 Deluxe.

503152800

Unavailable

38

Hard Washer | Formula DLX 500 LC.

503007900

Unavailable

39

Lock Washer 8 mm

234181401

$0.89

40

Hex. Screw M8 X 30

207183044

$0.92

41

Wheel Support Axle

503153600

Unavailable

42

Idler Wheel | Includes 48 - 49.

572043500

$32.28

43

Ball Bearing

405404600

$24.58

44

Elastic Stop Nut M5

232551414

$0.72

45

Lower Axle | Grand Touring 500.

503173200

Unavailable

46

Hex. Screw With Nylon

250000019

$1.42

47

Rivet 3/16 x 1-3/8 | Formula 500. Formula 500 Deluxe. Formula 583.

390908700

Unavailable

48

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

222054065

Unavailable

49

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

50

Wheel 135 | Includes 18 to 19

503190797

$32.28

51

Hex. Screw M10 X 40

207004044

$4.65

52

Flat Washer 10 mm

234001410

$0.98

53

Flat Washer 8 mm

234081410

$0.69

54

Loctite 271, 10 ml

293800005

$20.77

55

Reinforcement Stopper

572084800

$5.25

56

Reinforcment Plate | Grand Touring 500.

503171800

Unavailable
