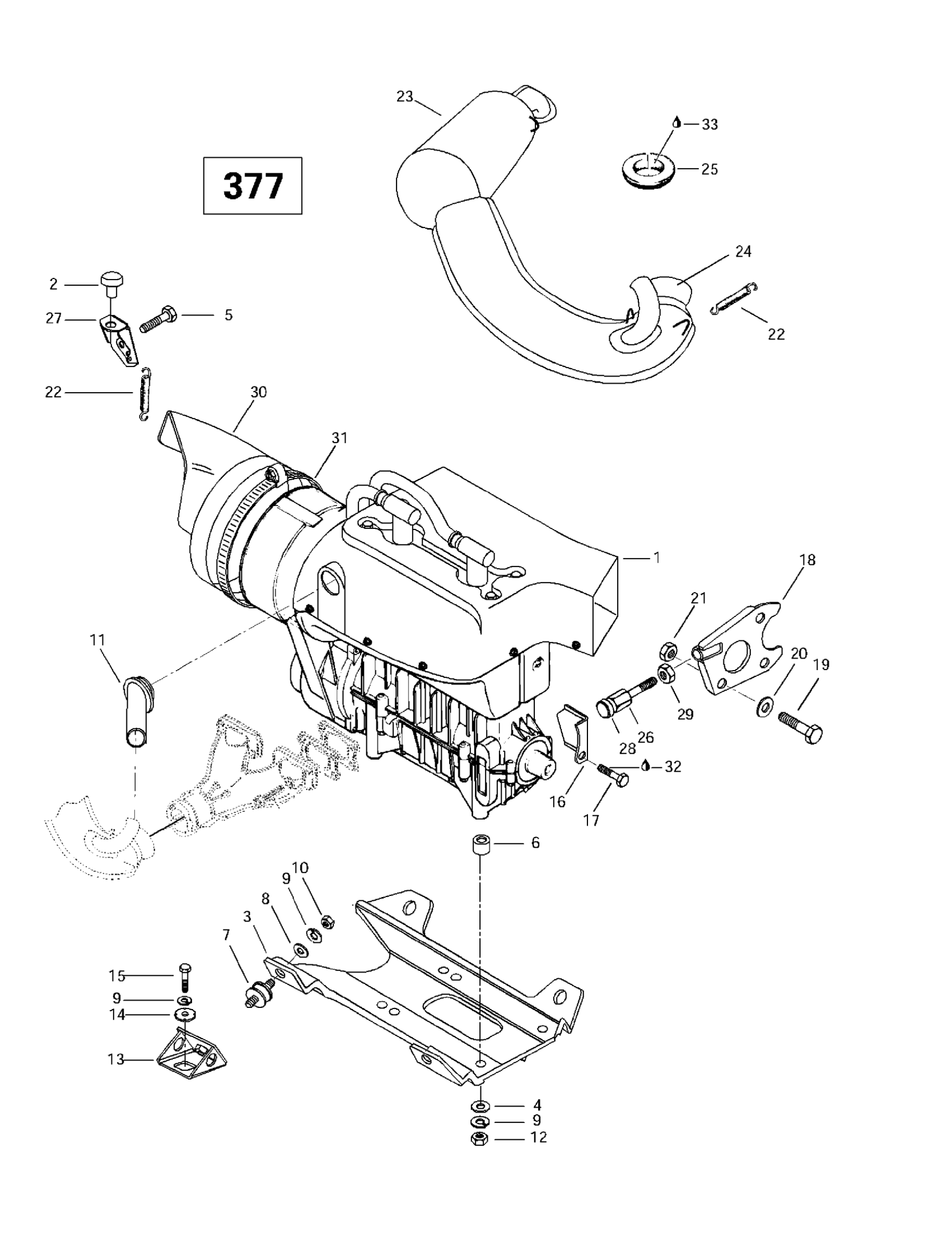

Ski-Doo Skandic 380/500, 1997 Engine Support And Muffler (377) Diagram

#

Description
Price

1

<<377>> Engine | Skandic 380.

400308600

Unavailable

2

Rubber Bumper

570044700

$10.55

3

Engine Support

512054500

Unavailable

4

Flat Washer 10 mm

234001410

Unavailable

5

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

6

Spacer | Formula Deluxe 380.

512051900

Unavailable

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Flat Washer 10 mm

234001410

Unavailable

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

Elastic Locking Nut M10 X 1.5

233601416

$1.68

11

Connector (Force Flow) | Skandic 380.

570045800

Unavailable

12

Hex. Nut M10 X 1.5

232006414

$1.11

13

Support | Formula S.

512055400

Unavailable

14

Lock Washer

512056700

Unavailable

15

Hex. Screw M10 X 25

207102544

Unavailable

16

Stopper Plate

512052200

Unavailable

17

Hex. Screw M8 X 20

207182044

$0.61

18

Support Plate

517271800

Unavailable

19

Hex. Screw M8 X 25

207182544

Unavailable

20

Flat Washer 8 mm

234081410

Unavailable

21

Hex. Elastic Stop Nut M8

232581414

Unavailable

22

SPRING - Call your local BRP dealership

517182100

Unavailable

23

Muffler | Skandic 380.

514046100

Unavailable

24

Female Ball Joint | Formula S.

420973530

$10.74

25

EXHAUST GROMMET - Call your local BRP dealership

570039000

Unavailable

26

Screw

517244200

Unavailable

27

Muffler Support | Formula S.

514038800

Unavailable

28

Rod retainer

570025100

Unavailable

29

HEX. NUT M12 - Call your local BRP dealership

232120414

Unavailable

30

Air Deflector | Formula S.

572058400

Unavailable

31

Gear Clamp Tridon | Formula S.

408803600

Unavailable

32

Loctite 271, 10 ml

293800005

Unavailable

33

Grease, Super Lube

293550030

Unavailable
