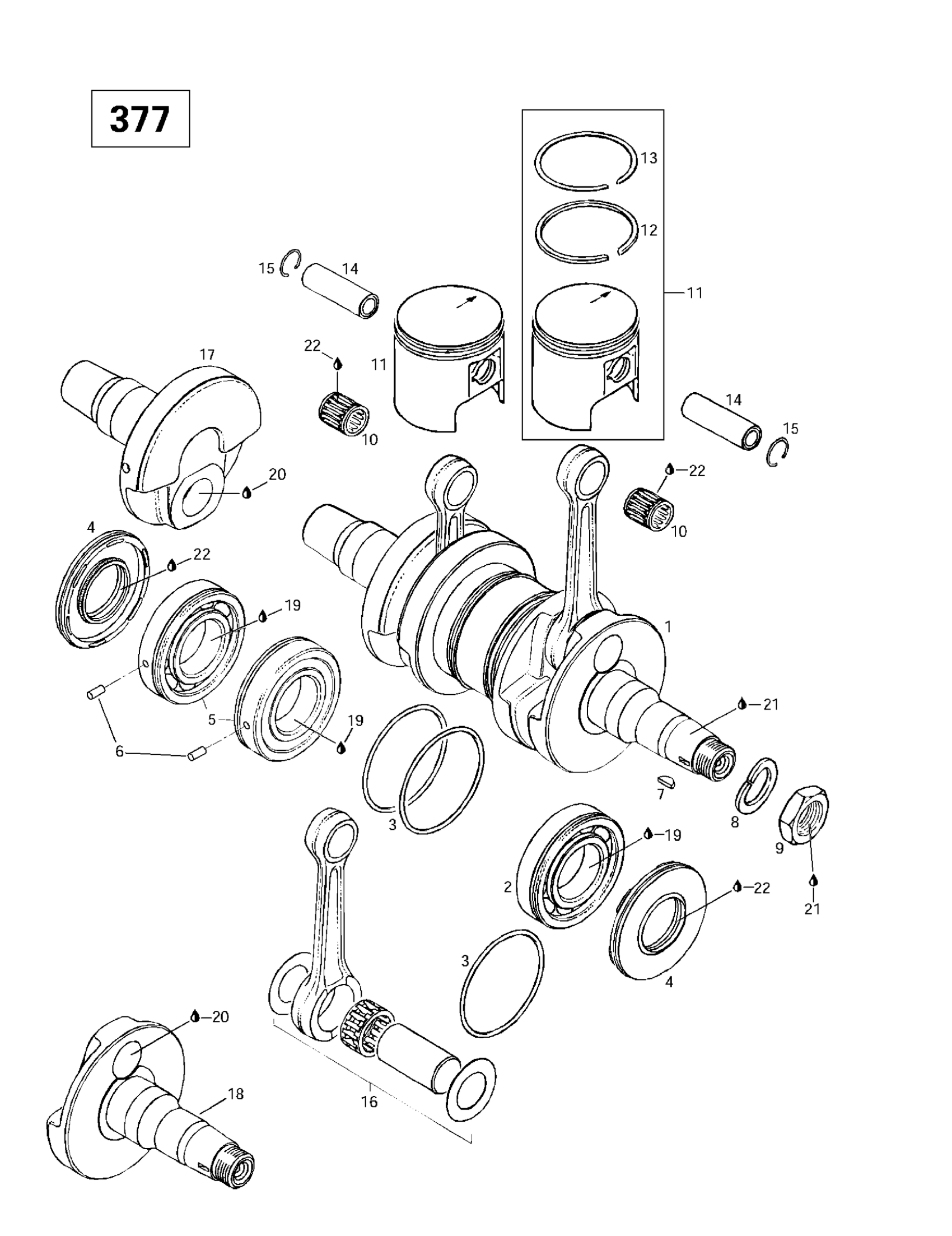

Ski-Doo Skandic 380/500, 1997 Crankshaft (377) Diagram
#
Description
Price
1
Crankshaft Ass'y | Includes 1 - 7.
420887247
Unavailable
2
Bearing_Ball This part replaces 290832231.
420832584
Unavailable
3
O-Ring, 64 mm X 2 mm
293300022
Unavailable
4
Oil Seal This part replaces 290831952.
420831952
Unavailable
5
Ball Bearing
420832573
Unavailable
5
Ball Bearing
420832573
Unavailable
6
Dowel Pin
420929972
Unavailable
7
Woodruff Key
420246055
Unavailable
8
Lock Washer, 22 mm
420945759
Unavailable
9
Hex. Nut, M22 X 1.5
420842239
Unavailable
10
Needle Bearing
420932904
Unavailable
11
Piston Ass'y 61.94 mm | Includes 11 - 13. Formula S.
420887470
Unavailable
Oversize Piston Ass'y 62.19 mm | Formula DLX 380.
420887471
Unavailable
Oversize Piston Ass'y 62.44 mm | Formula DLX 380.
420887472
Unavailable
12
Rectangular Ring 62.0 mm | Formula S.
420915890
Unavailable
Rectangular Ring 62.25 mm | Formula DLX 380.
420915891
Unavailable
Rectangular Ring 62.5 mm | Formula DLX 380.
420915892
Unavailable
13
Semi-Trapez Ring 62.0 mm | Formula S.
420215210
Unavailable
Semi-Trapez Ring 62.25 mm | Formula S.
420215211
Unavailable
Semi-Trapez Ring 62.5 mm | Formula DLX 380.
420215212
Unavailable
14
GUDGEON PIN - Call your local BRP dealership
420916260
Unavailable
15
Piston Circlip
420945735
Unavailable
16
Rod repair kit
420996334
Unavailable
17
Crankshaft half PTO
420818203
Unavailable
18
MAG SIDE HALF-CRANK - Call your local BRP dealership
420819010
Unavailable
19
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
20
Sealant Loctite 648
219703000
Unavailable
