Description

Price

1

Chaincase

504095402

Unavailable

2

Chain Slider

504082400

Unavailable

3

Copper Washer | Formula DLX 500 LC.

732900040

Unavailable

4

Hex. Screw M6 X 16

207161644

$0.61

5

CYLINDER PIN - Call your local BRP dealership | Package-2X4, 4X4

732620001

$1.65

6

Ball Bearing

293350115

$11.15

7

OIL SEAL - Call your local BRP dealership

414882800

$17.66

8

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

9

MACHINED TENSIONER - Call your local BRP dealership

504081000

$35.35

10

Circlip

371910000

$0.98

11

SCREW - Call your local BRP dealership

732601144

$1.37

12

SPACER - Call your local BRP dealership

504080200

$15.35

13

ROLLER - Call your local BRP dealership

414531300

Unavailable

14

NEEDLE BEARING - Call your local BRP dealership

405403000

$22.28

15

WASHER - Call your local BRP dealership

504080300

$4.63

16

Tensioner Adjustment Screw

732601163

Unavailable

17

O-Ring

414484400

$7.31

18

Flat Washer 10 mm

234001410

$0.98

19

Shim

504093400

Unavailable

20

Sprocket, 21 Teeth | Grand Touring 500.

504091200

Unavailable

21

Washer

504087100

Unavailable

22

HEX. CASTELLATED NUT M16 - Call your local BRP dealership

232210414

$2.55

23

Retaining Ring

504094100

Unavailable

24

Coupling Shaft

504094200

Unavailable

25

SPROCKET ASS'Y (44 TEETH) - Call your local BRP dealership | Includes 55 - 62. Formula Deluxe 500.

581095900

Unavailable

25

SPROCKET (44 TEETH) - Call your local BRP dealership | Formula Deluxe 500.

504088200

$110.74

26

NEEDLE BEARING - Call your local BRP dealership

414772600

$16.12

27

DRIVE PIN - Call your local BRP dealership

504076800

Unavailable

28

SPRING - Call your local BRP dealership

414772700

$3.85

29

RETAINER RING - Call your local BRP dealership

504076100

Unavailable

30

Hex. Screw M5 X 20

207152044

$0.88

31

Nut Lock Hex. M5

228451046

Unavailable

32

SLIDING GEAR, 56 TEETH - Call your local BRP dealership

504096800

$309.97

33

O-RING - Call your local BRP dealership

414969400

Unavailable

34

Tie Rod (Bar) | Formula DLX 500 LC.

504094700

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Cap | Formula DLX 500 LC.

504099100

$44.58

37

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

38

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

39

Reverse Shaft

504083100

$46.12

40

Spring Pin | Formula DLX 500 LC.

732804003

Unavailable

41

Spacer

504077300

$6.26

42

Ring

504078700

$17.66

43

SPROCK ASS?Y, 19 TEETH - Call your local BRP dealership | Includes 76 to 77

581122200

Unavailable

44

Gear (19 Tooth)

504092800

Unavailable

45

NEEDLE BEARING - Call your local BRP dealership

414805000

Unavailable

46

Sprocket Ass'y (19 Teeth) | Includes 67 - 68. Formula Deluxe 500.

581098200

Unavailable

47

Sprocket Ass'y (19 Teeth) | Includes 67 - 68. Formula Deluxe 500.

581098200

Unavailable

48

NEEDLE BEARING - Call your local BRP dealership

414773100

$11.51

49

Washer

504082900

$2.58

50

TAB LOCK - Call your local BRP dealership

504087700

Unavailable

51

Release Spring | Formula DLX 500 LC.

504099200

Unavailable

52

Spacer

504083800

Unavailable

53

Protector

501022100

Unavailable

54

Elastic Locking Nut M10 X 1.5

233601416

$1.68

55

Nut | Formula DLX 500 LC.

732610075

$1.08

56

Spring Washer

417000900

Unavailable

57

O-RING - Call your local BRP dealership

414773200

$2.28

58

Cotter Pin

371801300

Unavailable

59

Drive Chain, (72 Links-Narrow) | Formula Deluxe 500.

412105500

Unavailable

60

Copper Washer

732900020

Unavailable

61

WASHER - Call your local BRP dealership

504094300

$3.85

62

Plate | Formula DLX 500 LC.

504094602

Unavailable

63

Hex. Screw M5 X 14

207151444

$0.72

64

Lock Washer 5 mm | Europe

234151401

$0.46

65

Rubber Washer | Formula DLX 500 LC.

570045700

Unavailable

66

Lock Washer M6, Black

234161471

$0.52

67

Flanged Bushing | Formula DLX 500 LC.

414927600

Unavailable

68

FLAT WASHER - Call your local BRP dealership

224081201

$0.70

69

Cover Chaincase | Formula DLX 500 LC.

504098500

Unavailable

70

Fork

504075800

Unavailable

71

Flat Washer 6 mm

234061410

$1.04

72

Hex. Screw M8 X 90

207089044

$2.82

73

Shaft

504094600

Unavailable

74

SPRING PIN - Call your local BRP dealership

414772500

$1.37

75

Hex. Screw M8 X 45

207084544

$1.25

76

Alignement Rod

570048600

$13.77

77

Weld Plate Pivoting | Formula DLX 500 LC.

504094900

Unavailable

78

RH BALL-JOINT - Call your local BRP dealership

414773400

Unavailable

79

Hexagonal Nut M6

232061404

$0.32

80

GRIP - Call your local BRP dealership | Formula DLX 500 LC.

570044600

$14.58

81

Stopper-Switch | Formula DLX 500 LC.

572071100

Unavailable

82

WASHER - Call your local BRP dealership

504073700

$3.08

83

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

84

O-Ring

414362300

Unavailable

85

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

86

Filler Cap

572075500

$13.82

87

Hair Pin

414575600

$1.51

88

Hex. Screw M10 x 70

732601111

Unavailable

89

Phillips Screw 8x1/2"

364901600

Unavailable

90

Hex. Screw M10 x 40 | Formula S.

732601112

Unavailable

91

Rivet | Formula DLX 500 LC.

390008900

Unavailable

92

Hex. Elastic Stop Nut M8

232581414

$0.47

93

Switch Connector Ass'y | Formula 500 Deluxe.

515162600

Unavailable

94

Elastic Stop Nut M5

232551414

$0.72

95

Back-Up Alarm

414792102

$143.05

96

Push Nut

389804300

$0.43

97

Elastic Stop Nut M6

232561414

$1.55

98

Ball Bearing

293350115

$11.15

99

Seal Oil Ass'y

504152076

$23.82

100

CIRCLIP - Call your local BRP dealership

371901700

Unavailable

101

Support-Pivot | Formula DLX 500 LC.

504095000

Unavailable

102

Hex. Flange Screw M6 X 16

210261650

$1.22

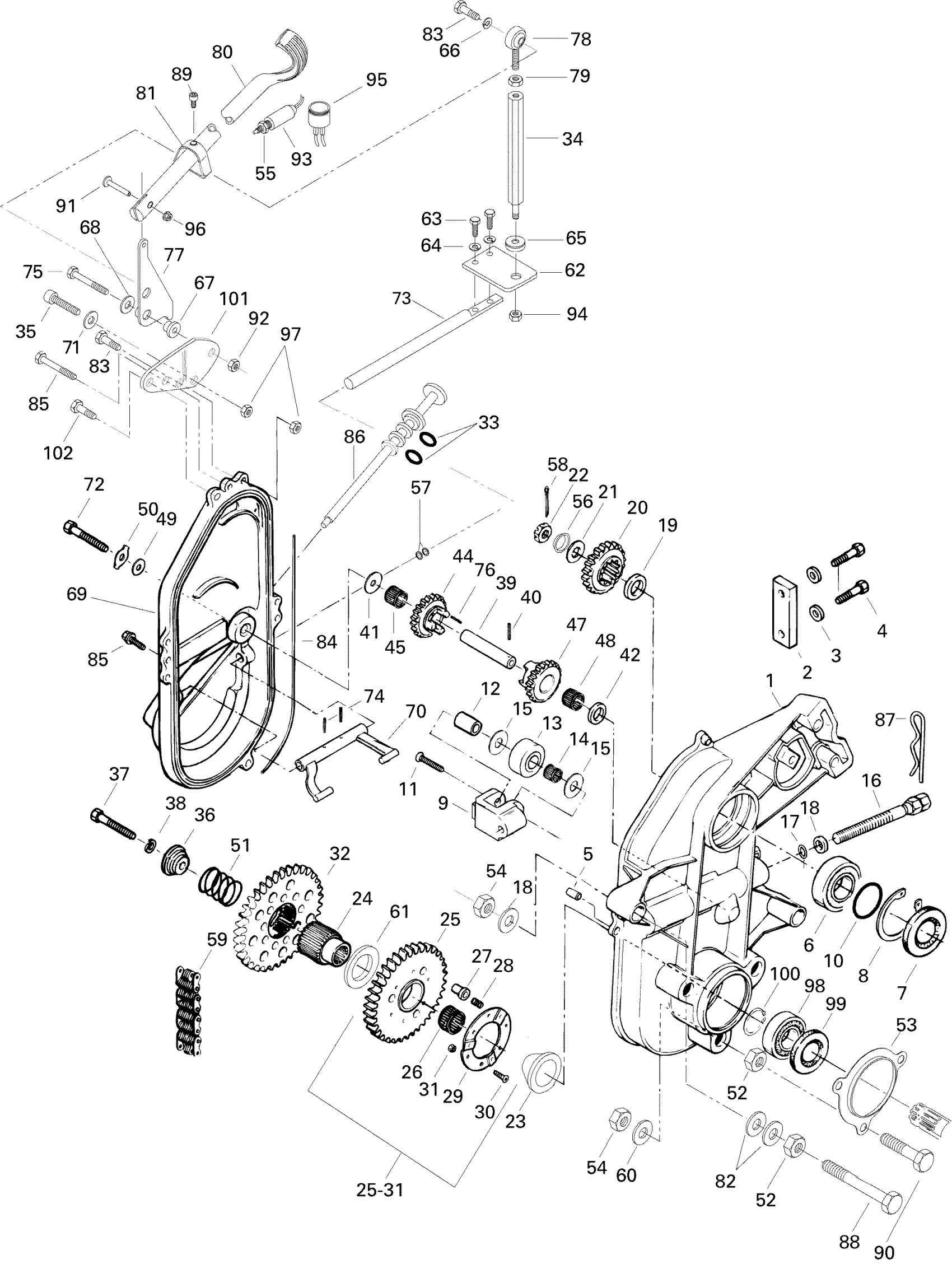

Ski-Doo Skandic 380, 1996 Transmission Diagram
