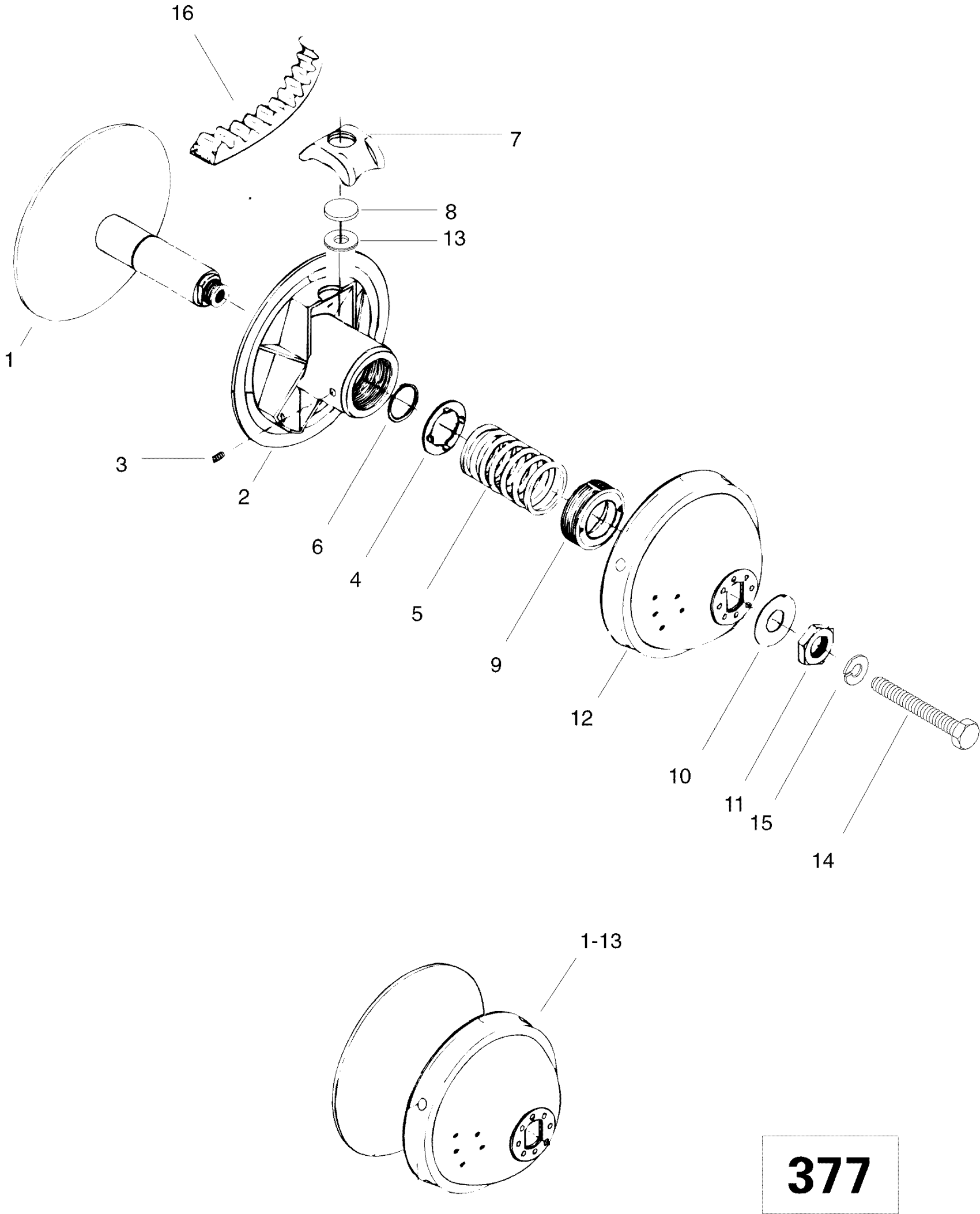

Ski-Doo Skandic 380, 1996 Drive Pulley 377 Diagram

#

Description
Price

1

Drive Pulley Ass’y | Includes 1 to 13

581209700

Unavailable

1

Inner Half

417120200

Unavailable

2

Outer Half

417120300

Unavailable

3

Locking Screw

417116800

Unavailable

4

Guide Washer | 380 F.

417116200

Unavailable

5

Spring | Skandic 380.

417118500

Unavailable

6

Circlip

417116100

Unavailable

7

CENTRIFUGE BLOCK - Call your local BRP dealership | CDN, USA

417118100

Unavailable

8

ADJUSTMENT WEIGH - Call your local BRP dealership | CDN, USA

417120400

$4.58

9

Bushing Support

417117300

Unavailable

10

Retainer Washer

417116500

Unavailable

11

NUT - Call your local BRP dealership

417118300

$23.05

12

Cap

417118600

Unavailable

13

CAPSULE - Call your local BRP dealership | CDN, USA

417114500

$3.32

14

BOLT - Call your local BRP dealership

417113800

$10.17

15

WASHER-LOCK HELICAL SPRING - Call your local BRP dealership

392002800

$0.54

16

Drive Belt

415060600

$154.58
