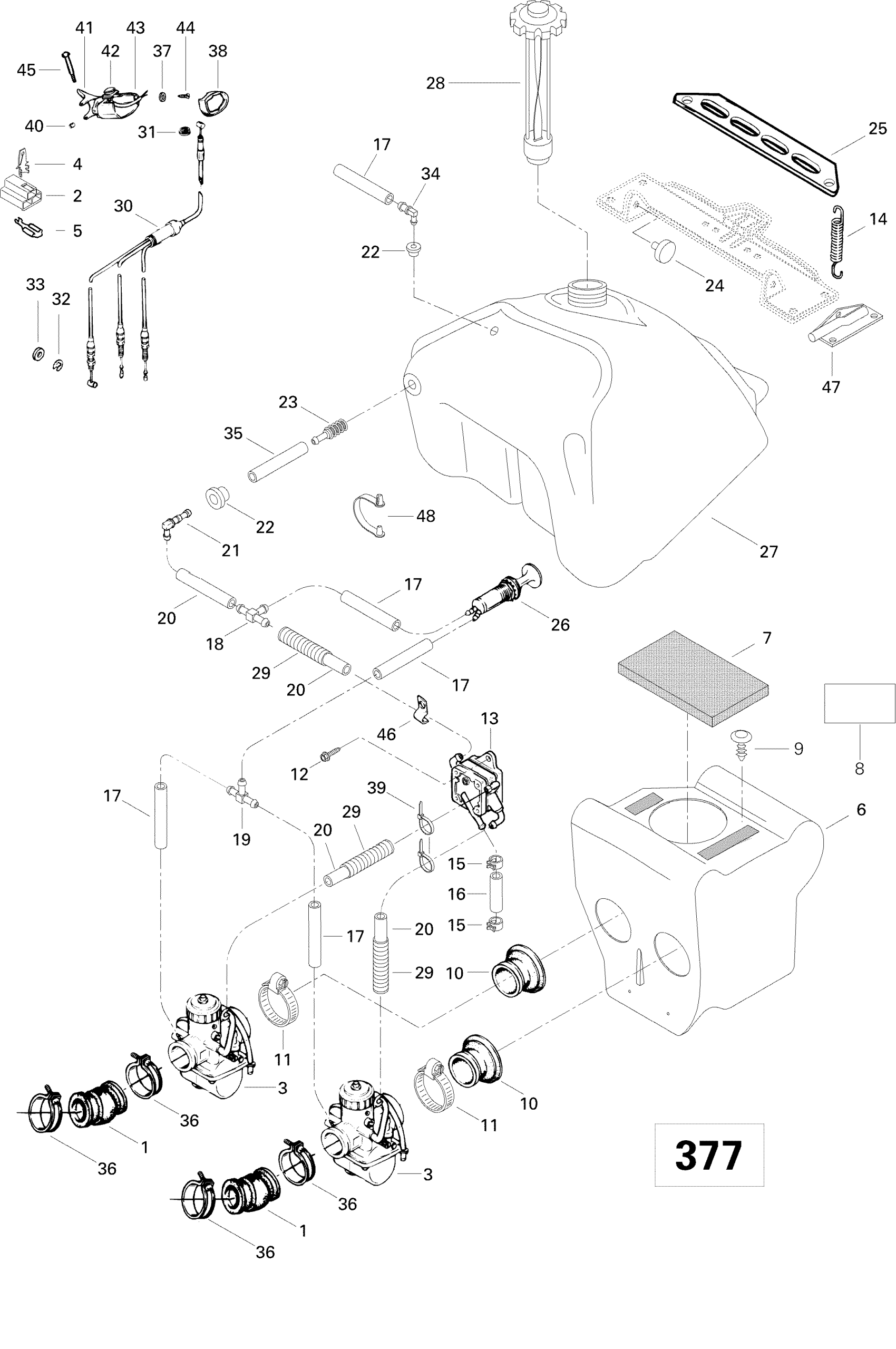

Ski-Doo Skandic 380, 1996 Fuel System 377 Diagram

#

Description
Price

1

Rubber Flange

570045000

Unavailable

2

Female Terminal Housing (3 circuits)

409008500

Unavailable

3

Carburetor VM 30-188 | Includes 1 to 30

403125700

Unavailable

4

MALE TERMINAL - Call your local BRP dealership

409210000

Unavailable

5

Female Terminal PACKARD

561503200

Unavailable

6

Air Silencer (Incl. 4,7,8,39)

580638501

Unavailable

7

Air Filter

414922700

Unavailable

8

Warning Decal

414161500

Unavailable

9

Dart

414939500

$0.86

10

Adaptor 34 mm

570043600

Unavailable

11

TRIDON GEAR CLAMP - Call your local BRP dealership

408801600

Unavailable

12

Hexagonal Head Screw

210262050

$1.74

13

Fuel Pump

403801000

Unavailable

14

SPRING - Call your local BRP dealership

517182100

Unavailable

15

Spring Clamp

414415200

$0.83

16

Hose

219704549

$47.66

17

Fuel Line 3.18 mm | Formula 500. Formula 500 Deluxe.

414296900

Unavailable

18

T-fitting

414222500

$1.33

19

T-Fitting

414222400

$1.33

20

Polyurethane Hose 10000Mm Long

219704410

$46.12

21

Elbow Male Connector

414580600

$3.50

22

Grommet

709200285

$7.09

23

Fuel Filter

414865700

$8.39

24

Grommet | Europe

707800347

$7.58

25

Fuel Tank Bracket

517249200

Unavailable

26

Primer

415060500

$33.05

27

Fuel Tank

571008700

Unavailable

28

Fuel Tank Cap

572161200

$36.89

29

Was 409901800 Tubing (13 mm)

219704400

$9.40

30

THROTTLE CABLE AND HOUSING - Call your local BRP dealership

414883100

Unavailable

31

Circlip

414274500

$0.74

32

Circlip

414753500

$0.59

33

Flat Washer 8 mm, Nylon

234081100

$1.00

34

Male Connector

414814100

$2.18

35

Not Available As Spare Part - Friction Washer

Unavailable

36

TRIDON GEAR CLAMP - Call your local BRP dealership

408801900

Unavailable

37

WASHER-FLAT - Call your local BRP dealership

391300700

Unavailable

38

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

39

Tie-Rap 180 mm

414115200

$0.09

40

Socket Set Screw M8 X 10

414440800

$4.00

41

Heated Throttle Handle (30 mm)

572054200

Unavailable

42

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.54

43

Throttle Handle Housing | Skandic 600.

572028600

Unavailable

44

Screw

414473200

Unavailable

45

Flange Screw

732601143

$4.02

46

CLIP - Call your local BRP dealership

414351600

Unavailable

47

RH Tank Bracket

414266900

Unavailable

47

LH Tank Bracket

414267000

Unavailable

48

CABLE CLIP - Call your local BRP dealership

414379300

Unavailable
