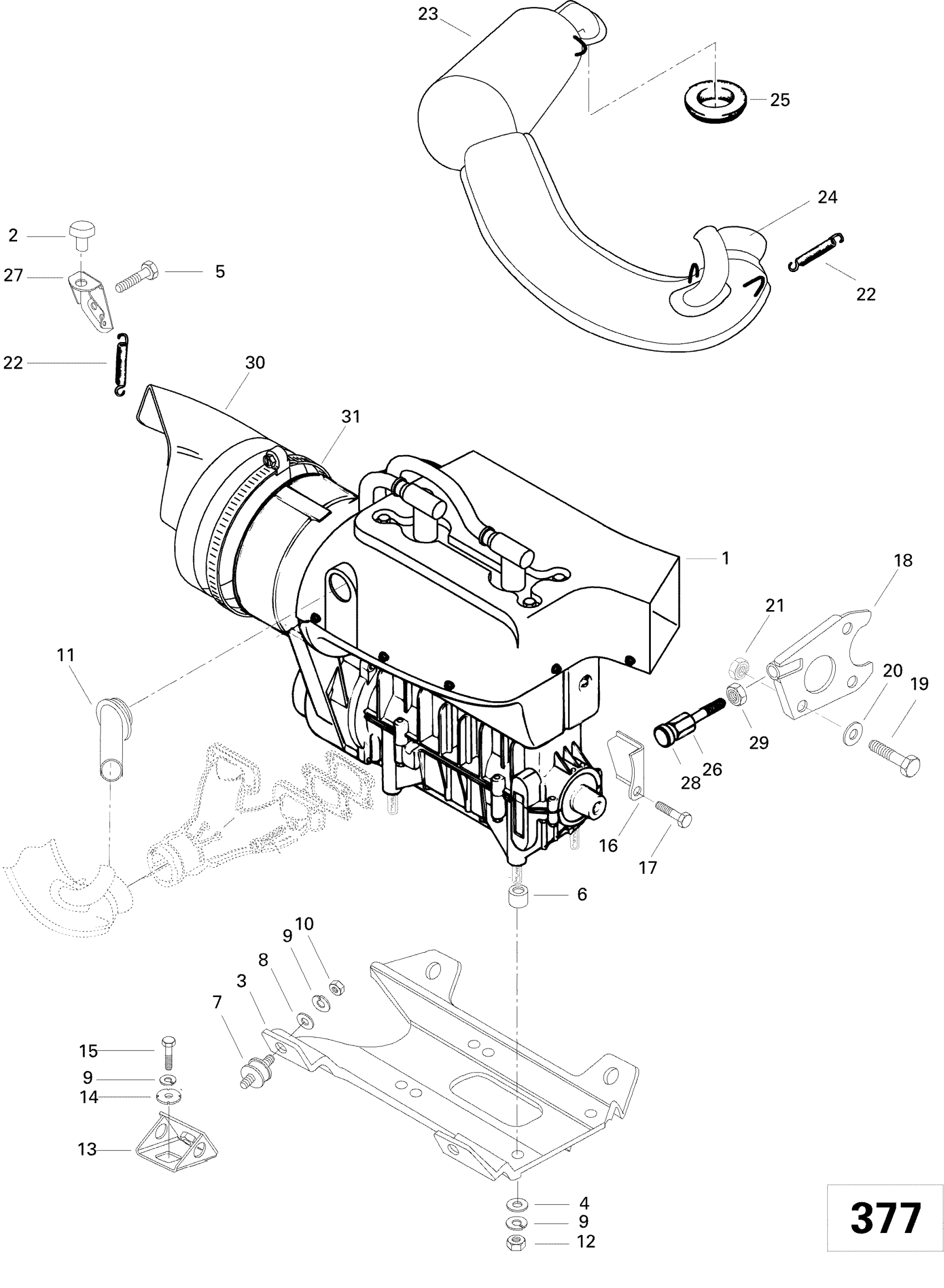

Ski-Doo Skandic 380, 1996 Engine And Engine Support 377 Diagram

#

Description
Price

1

«377» Engine

400308300

Unavailable

2

Rubber Bumper

570044700

$10.55

3

Engine Support

512054500

Unavailable

4

Flat Washer 10 mm

234001410

$0.98

5

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

6

Spacer | Formula Deluxe 380.

512051900

Unavailable

7

RUBBER MOUNT - Call your local BRP dealership

570127700

Unavailable

8

Flat Washer 10 mm

234001410

$0.98

9

WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.

234100602

Unavailable

10

Hex. Nut M10 X 1.5

232006414

$1.11

11

Connector (Force Flow) | Skandic 380.

570045800

Unavailable

12

Hex. Nut M10 X 1.5

232006414

$1.11

13

Support | Formula S.

512055400

Unavailable

14

Lock Washer

512056700

$3.11

15

Hex. Screw M10 X 25

207102544

$1.11

16

Stopper Plate

512052200

Unavailable

17

Hex. Screw M8 X 20

207182044

$0.61

18

Support Plate

517271800

Unavailable

19

Hex. Screw M8 X 25

207182544

$0.74

20

Flat Washer 8 mm

234081410

$0.69

21

Hex. Elastic Stop Nut M8

232581414

$0.47

22

SPRING - Call your local BRP dealership

517182100

$10.26

23

Muffler | Includes 23 to 24

514043900

Unavailable

24

Female Ball Joint | Formula S.

420973530

$10.74

25

EXHAUST GROMMET - Call your local BRP dealership

570039000

$23.05

26

Screw

517244200

Unavailable

27

Muffler Support | Formula S.

514038800

Unavailable

28

Rod retainer

570025100

Unavailable

29

HEX. NUT M12 - Call your local BRP dealership

232120414

$0.85

30

Air Deflector | Formula S.

572058400

Unavailable

31

Gear Clamp Tridon | Formula S.

408803600

Unavailable
