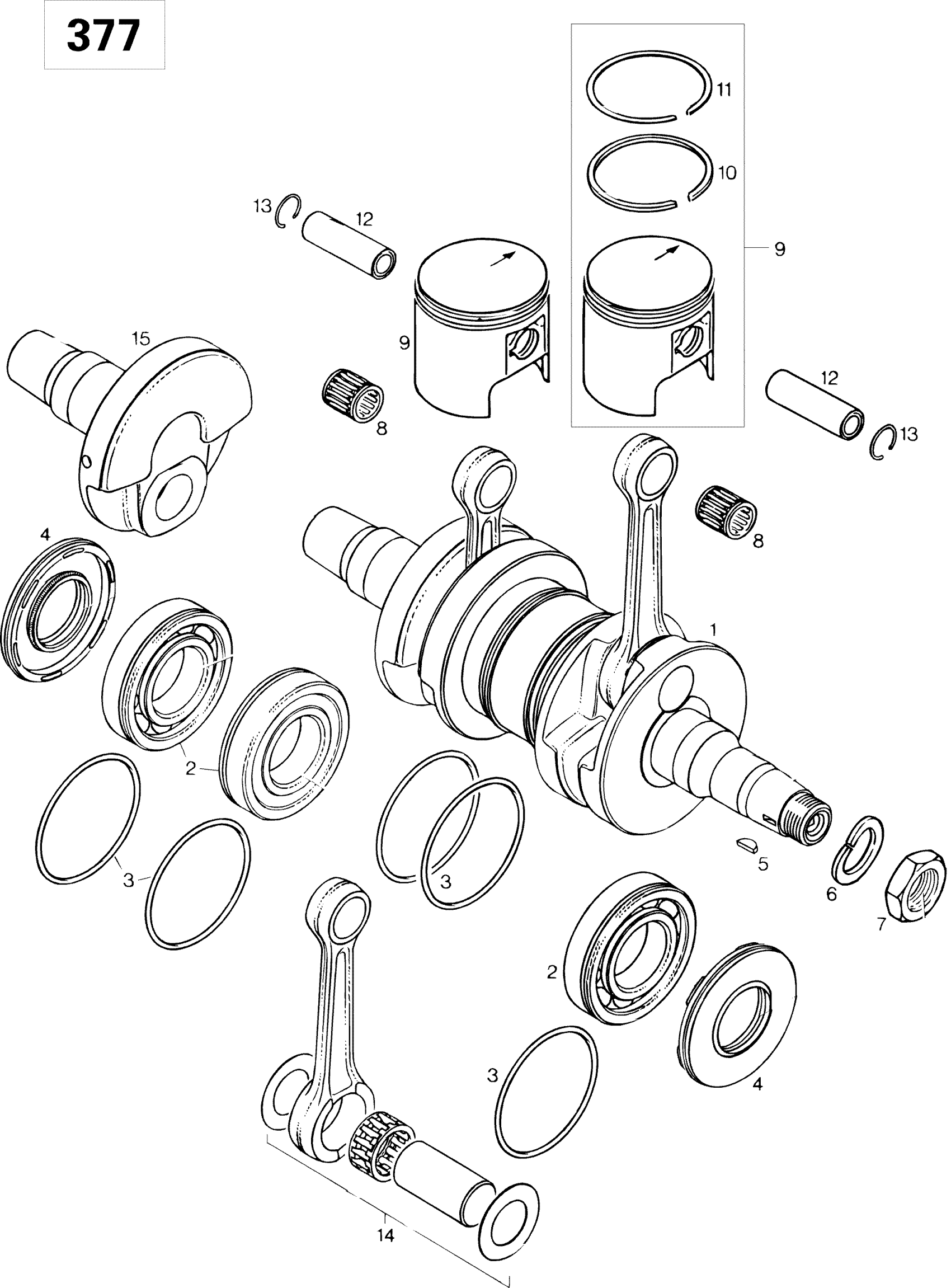

Ski-Doo Skandic 380, 1996 Crankshaft And Pistons 377 Diagram

#

Description
Price

1

Crankshaft Ass’y

420887245

Unavailable

2

Bearing_Ball This part replaces 290832231.

420832584

$33.77

3

O-Ring, 64 mm X 2 mm

293300022

$10.58

4

Oil Seal This part replaces 290831952.

420831952

$14.27

5

Woodruff Key

420246055

$1.99

6

Lock Washer, 22 mm

420945759

$1.55

7

Hex. Nut, M22 X 1.5

420842239

$14.27

8

Needle Bearing

420932904

$12.88

9

PISTON ASS?Y 62.0 MM - Call your local BRP dealership | Includes 9 to 11

420994975

Unavailable

9

PISTON 62.18 MM, 1ST OVERSIZE - Call your local BRP dealership | Includes 11 to 13

420890061

Unavailable

9

PISTON 62.43 MM, 2ND OVERSIZE - Call your local BRP dealership | Includes 11 to 13

420890062

$112.28

10

Rectangular Ring 62.0 mm | Formula S.

420915890

Unavailable

10

Rectangular Ring 62.25 mm | Formula DLX 380.

420915891

Unavailable

10

Rectangular Ring 62.5 mm | Formula DLX 380.

420915892

$21.51

11

Semi-Trapez Ring 62.0 mm | Formula S.

420215210

Unavailable

11

Semi-Trapez Ring 62.25 mm | Formula S.

420215211

$43.82

11

Semi-Trapez Ring 62.5 mm | Formula DLX 380.

420215212

$43.82

12

GUDGEON PIN - Call your local BRP dealership

420916260

$22.99

13

Piston Circlip

420945735

$3.93

14

Rod repair kit

420996334

Unavailable

15

Crankshaft half PTO

420818203

Unavailable
