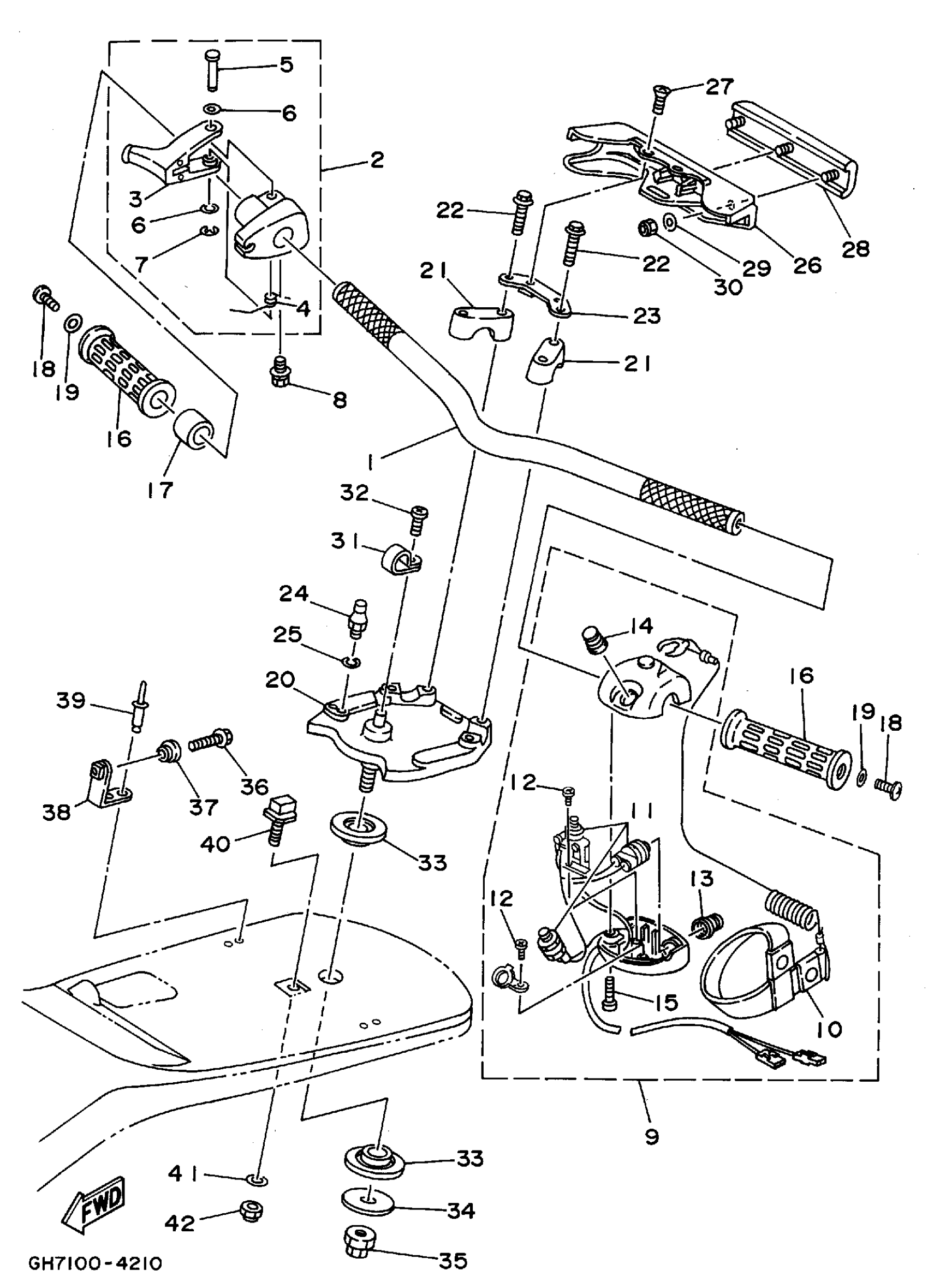

Yamaha SJ700T (SUPER JET) 1995 STEERING Diagram

#

Description
Price

1

HANDLE

EW2-U1552-00-00

Unavailable

2

THROTTLE LEVER ASSY

EW2-67250-02-00

$104.53

3

. LEVER, THROTTLE

EW2-67255-00-00

$21.48

4

. SPRING

EW2-67256-00-00

$6.36

5

. SHAFT

EW2-67257-01-00

$13.99

6

WASHER, PLAIN (646)

92990-05600-00

Unavailable

7

CIRCLIP (EU0)

99080-04600-00

$1.70

8

SCREW, WITH WASHER

90159-05900-00

$2.17

9

SWITCH BOX ASSY

EW2-68310-04-00

$210.59

10

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

11

. SWITCH SUB ASSEMBLY

EW2-68311-01-00

$109.08

12

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

13

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

14

. START BUTTON COMP

FK7-68313-02-00

$11.31

15

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

16

GRIP, HANDLE 1

EW2-61553-00-00

$14.81

17

SPACER(1LX)

90560-22281-00

Unavailable

18

SCREW,TRASS HEAD (FJ0)

90149-05959-00

Unavailable

19

WASHER, PLATE

90201-05800-00

$0.65

20

BRAKE, ASSY.

EW2-61540-11-00

Unavailable

21

HOLDER, HANDLE UPPER

EU0-23814-02-00

$16.99

22

BOLT, FLANGE (EW2)

90105-08902-00

Unavailable

23

PLATE, COVER

EW2-61559-00-00

Unavailable

24

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27

25

WASHER, SPRING

92995-06100-00

$2.95

26

COVER, HANDLE

EW2-61555-00-00

Unavailable

27

SCREW, BIND(1JK)

98980-06010-00

Unavailable

28

PAD 1

EW2-61565-00-00

Unavailable

29

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

30

NUT, SELF-LOCKING

95720-06300-00

$1.82

31

CLIP, NYLON 17

90600-91728-00

$5.45

32

SCREW, BINDING (M01)

98980-04010-00

Unavailable

33

BEARING, COLUMN

EW2-61417-00-00

$10.74

34

WASHER, STEERING

EW2-61419-00-00

$9.08

35

NUT (EW2)

90179-12933-00

Unavailable

36

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09

37

COLLAR

90387-06906-00

Unavailable

38

FIX, STEERING PAD

EW2-61422-01-00

Unavailable

39

RIVET (EU0)

90267-48938-00

$5.00

40

PIN, STOPPER 1

EW2-61314-00-00

Unavailable

41

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

42

NUT, FLANGE

95780-10300-00

$9.63
