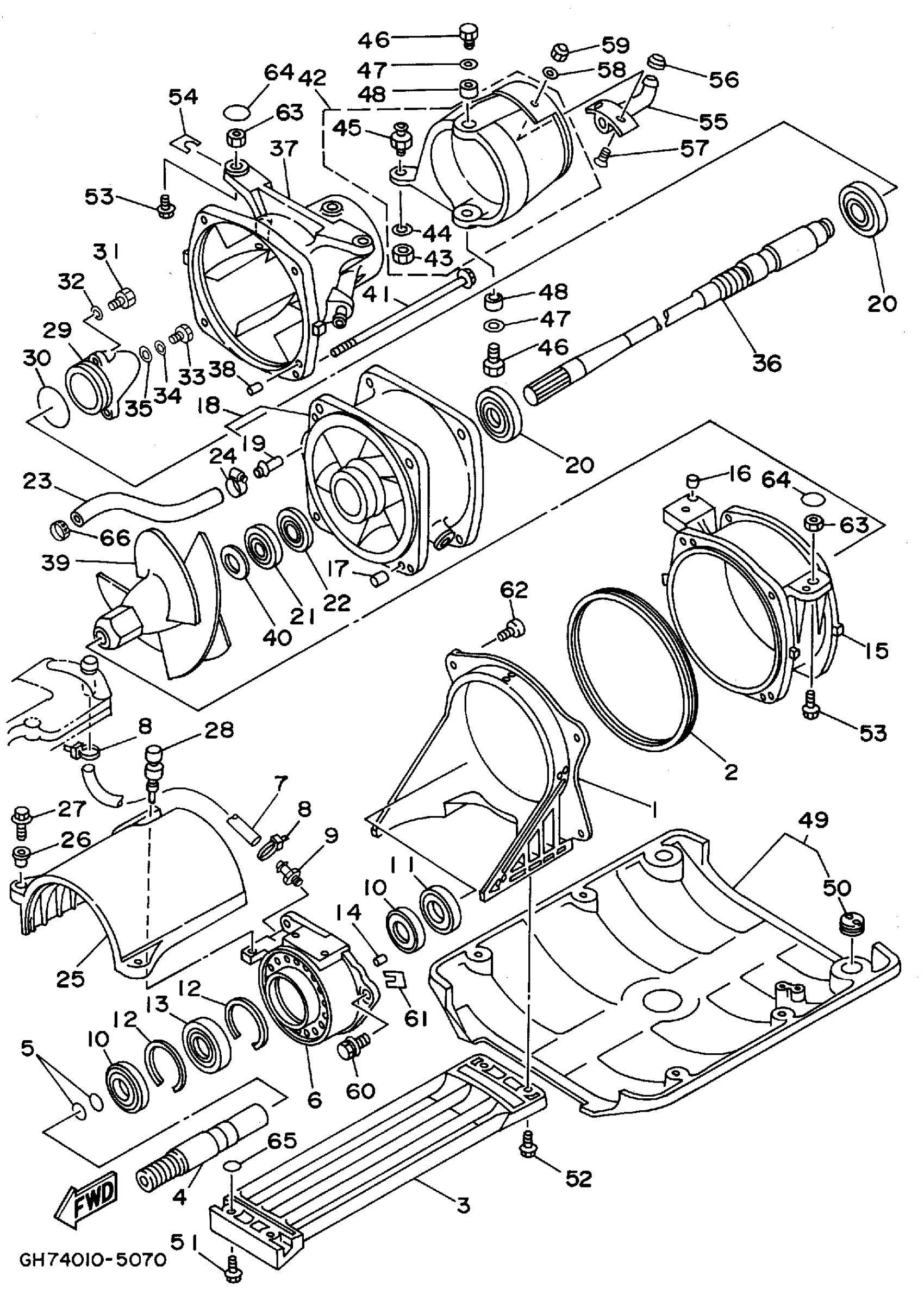

Yamaha SJ700T (SUPER JET) 1995 JET UNIT Diagram

#

Description
Price

1

DUCT, INTAKE

6R7-51311-00-00

$122.71

2

. PACKING

6R7-51117-01-00

$39.38

3

SCREEN, INTAKE

6R7-51333-00-00

$95.44

4

SHAFT, COUPLER

6R7-51323-02-00

$256.05

5

O-RING(6R7)

93210-17MA4-00

$4.65

6

HOUSING, BEARING

61X-G5332-00-00

$134.54

7

HOSE (L445)

90445-09M21-00

$20.98

8

CLAMP

90465-10098-00

$1.68

9

NIPPLE, HOSE

61L-45378-00-00

$11.35

10

OIL SEAL(62T)

93101-25M55-00

$24.36

11

OIL SEAL

93101-24001-00

$30.69

12

CIRCLIP

93430-47M04-00

$5.18

13

BEARING(62G)

93306-205U6-00

$55.29

14

PIN, DOWEL (614)

93606-12019-00

$3.05

15

HOUSING, IMPELLER

6R7-51312-03-00

$306.70

16

PIN, DOWEL(6R7)

93606-07M17-00

Unavailable

17

PIN, DOWEL (614)

93606-12019-00

$3.05

18

DUCT, IMPELLER

62T-51315-01-00

Unavailable

19

. NIPPLE

6K8-51129-00-00

$9.62

20

BEARING (6K8)

93306-205U1-00

Unavailable

21

OIL SEAL(6R7)

93102-25M34-00

Unavailable

22

OIL SEAL(6R7)

93101-25M50-00

Unavailable

23

HOSE

90445-14M11-00

Unavailable

24

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

25

COVER

61X-51381-00-00

$26.49

26

COLLAR

90387-06M60-00

$6.37

27

BOLT, HEXAGON W/W DEEP RECESS

97E95-06525-00

$1.00

28

GROMMET(GD0)

90480-06M69-00

Unavailable

29

CAP

62T-51326-00-00

$71.20

30

. O-RING

93210-46M16-00

$7.15

31

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

32

WASHER, PLAIN (646)

92990-06600-00

Unavailable

33

BOLT(GH1)

97080-06012-00

$2.56

34

WASHER, PLAIN (646)

92990-06600-00

Unavailable

35

. GASKET

90430-06M03-00

$2.80

36

SHAFT, DRIVE

6R7-45511-01-00

$465.14

37

NOZZLE

6R7-51318-05-94

$228.77

38

PIN, DOWEL (614)

93606-12019-00

$3.05

39

IMPELLER

6R7-51321-00-8S

$328.77

40

SPACER

62T-51348-00-00

$52.82

41

BOLT, WITH WASHER

90119-06M70-00

$7.40

42

NOZZLE DEFLECOR

61L-51313-00-00

$53.14

43

NUT(650)

95380-06700-00

Unavailable

44

WASHER, PLATE

90201-06M02-00

$2.20

45

. BOLT, JOINT

6R7-42316-00-00

$34.49

46

BOLT, HEXAGON

97095-08018-00

$3.08

47

.. WASHER, PLATE

92990-08600-00

$2.17

48

COLLAR(6R7)

90387-08M06-00

Unavailable

49

PLATE 2

F2F-6273B-09-00

Unavailable

50

BOLT, JACK

FK7-62732-01-00

Unavailable

51

BOLT, WITH WASHER

90119-06896-00

$5.03

52

BOLT, WITH WASHER

90119-06908-00

$2.57

53

BOLT, WITH WASHER

90119-10917-00

Unavailable

54

SHIM (T=0.1)

EW2-67354-00-01

Unavailable

54

SHIM (T=0.3)

EW2-67354-00-03

Unavailable

54

SHIM (T=0.5)

EW2-67354-00-05

Unavailable

54

SHIM (T=1.0)

EW2-67354-00-10

Unavailable

55

SPOUT

EU0-62693-02-00

$41.99

56

CAP, SPOUT

6R8-62695-00-00

$4.55

57

. SCREW, FLAT HEAD

98780-05016-00

$2.64

58

. WASHER, PLAIN

92990-05200-00

$4.29

59

. NUT, M5 X 08 NYLON LOCK

95780-05300-00

Unavailable

60

BOLT, WITH WASHER

90119-08907-00

$5.45

61

SHIM (T=0.5)

GD0-67249-A0-00

$4.99

61

SHIM (T=1.0)

GD0-67249-00-10

Unavailable

62

SCREW, TAPPING

97780-60520-00

$4.09

63

NUT

90179-10925-00

$5.00

64

SEAL

EW2-62723-00-00

Unavailable

65

SEAL

EW2-62723-30-00

$7.27

66

NYLON CLIP 1(GH1)

90601-11583-00

Unavailable
