2018 Yamaha Super Jet (SJ700BT) Engine Hatch Diagram

← All diagrams

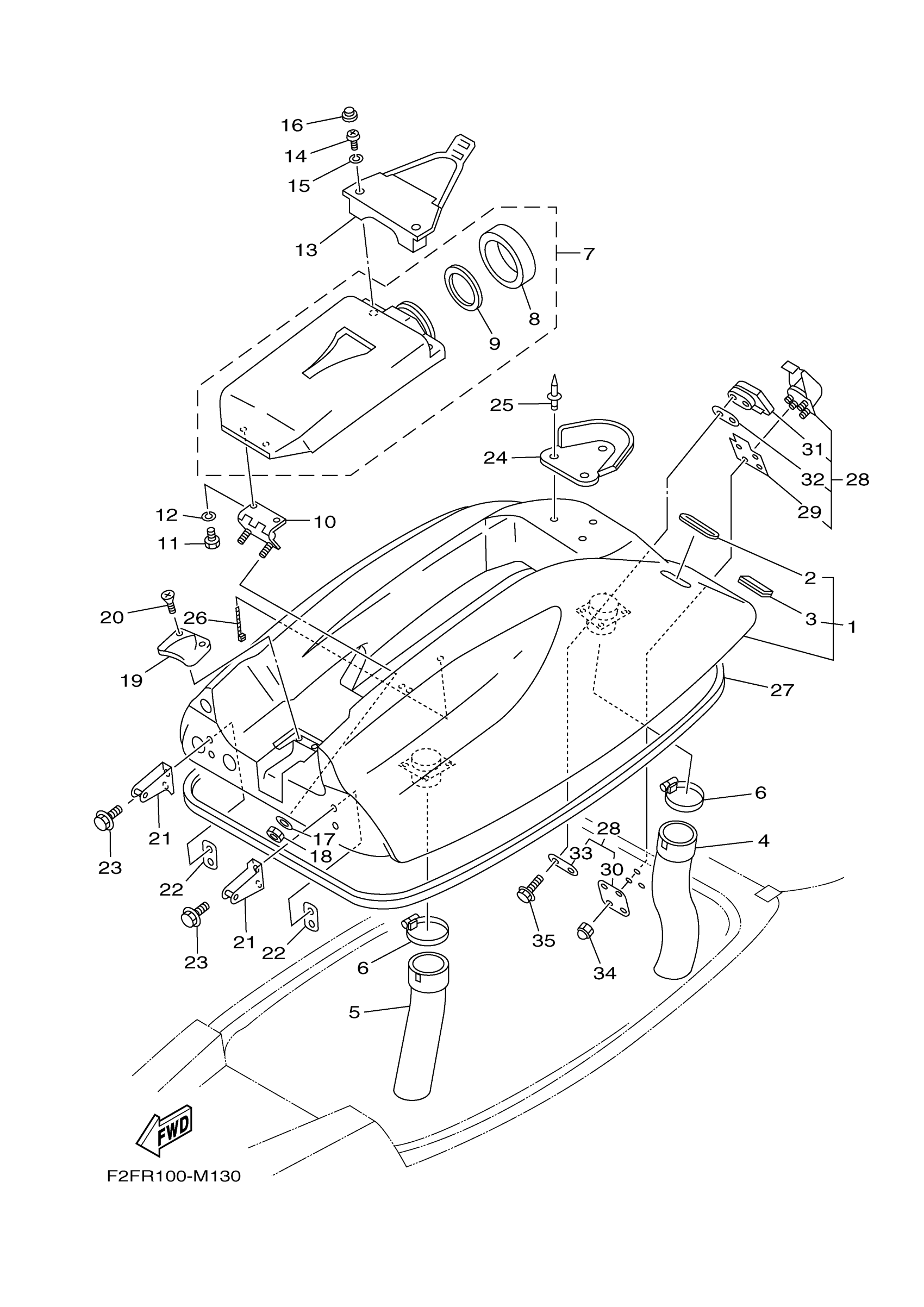

Find the part on the Engine Hatch diagram for your 2018 Yamaha Super Jet (SJ700BT), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha Super Jet (SJ700BT) Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

F4D-6516A-00-P1

1
Out of stock

2

. TRIM,HATCH 2

FX1-65116-10-00

1
Out of stock

3

. TRIM 1

GM6-6516C-00-00

1
Out of stock

4

HOSE,VENTILATOR 1

GM6-6213F-00-00

1
Out of stock

5

HOSE, VENTILATOR 2

EW2-62137-00-00

1
Out of stock

6

BAND, HOSE 68 (FJ0)(TAIWAN)

90601-16875-00

1
Out of stock

7

CASE ASSY 1

F2F-6591A-00-00

1
Out of stock

8

. CAP, CASE

EW2-65912-00-00

1
Out of stock

9

. PACKING, CASE

EW2-65913-00-00

1
Out of stock

10

HINGE, LID

FX1-6517D-00-00

1
Out of stock

11

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

1
Out of stock

12

WASHER, SPRING

92995-06100-00

1
Out of stock

13

BAND,CASE

FX1-6591K-00-00

1
Out of stock

14

SCREW, PAN HEAD

98580-06016-00

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1
Out of stock

16

CAP

FX1-6514F-00-00

1
Out of stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—
Out of stock

18

NUT, SELF-LOCKING

95720-06300-00

1
Out of stock

19

PLATE, HATCH (FL1)

A00-62858-02-00

1
Out of stock

20

YBS81-516 SCREW,O.HEAD TAPPING

97780-50316-00

—
Out of stock

21

STOPPER HATCH 2

GM6-65136-00-00

1
Out of stock

22

PLATE, STOPPER HATCH 2

EW2-65137-00-00

1
Out of stock

23

BOLT, WITH WASHER

90119-06900-00

1
Out of stock

24

DAMPER, POLE

FX1-6514B-00-00

1
Out of stock

25

RIVET (EU0)

90267-48938-00

1
Out of stock

26

CLAMP

90464-20258-00

—
Out of stock

27

PACKING

GM6-62664-01-00

1
Out of stock

28

HATCH LOCK ASSY

EW2-62840-11-00

1
Out of stock

29

. PACKING, HATCH LOCK

EW2-62845-10-00

1
Out of stock

30

. PLATE, HATCH LOCK

EW2-62846-00-00

1
Out of stock

31

. HOOK, HATCH LOCK

EW2-62843-00-00

1
Out of stock

32

. PACKING, HOOK

EW2-62847-00-00

1
Out of stock

33

. PLATE, HOOK

EW2-62848-00-00

1
Out of stock

34

NUT, FLANGE

95720-05300-00

1
Out of stock

35

BOLT WITH WASHER (EW2)

90119-05923-00

—
Out of stock
