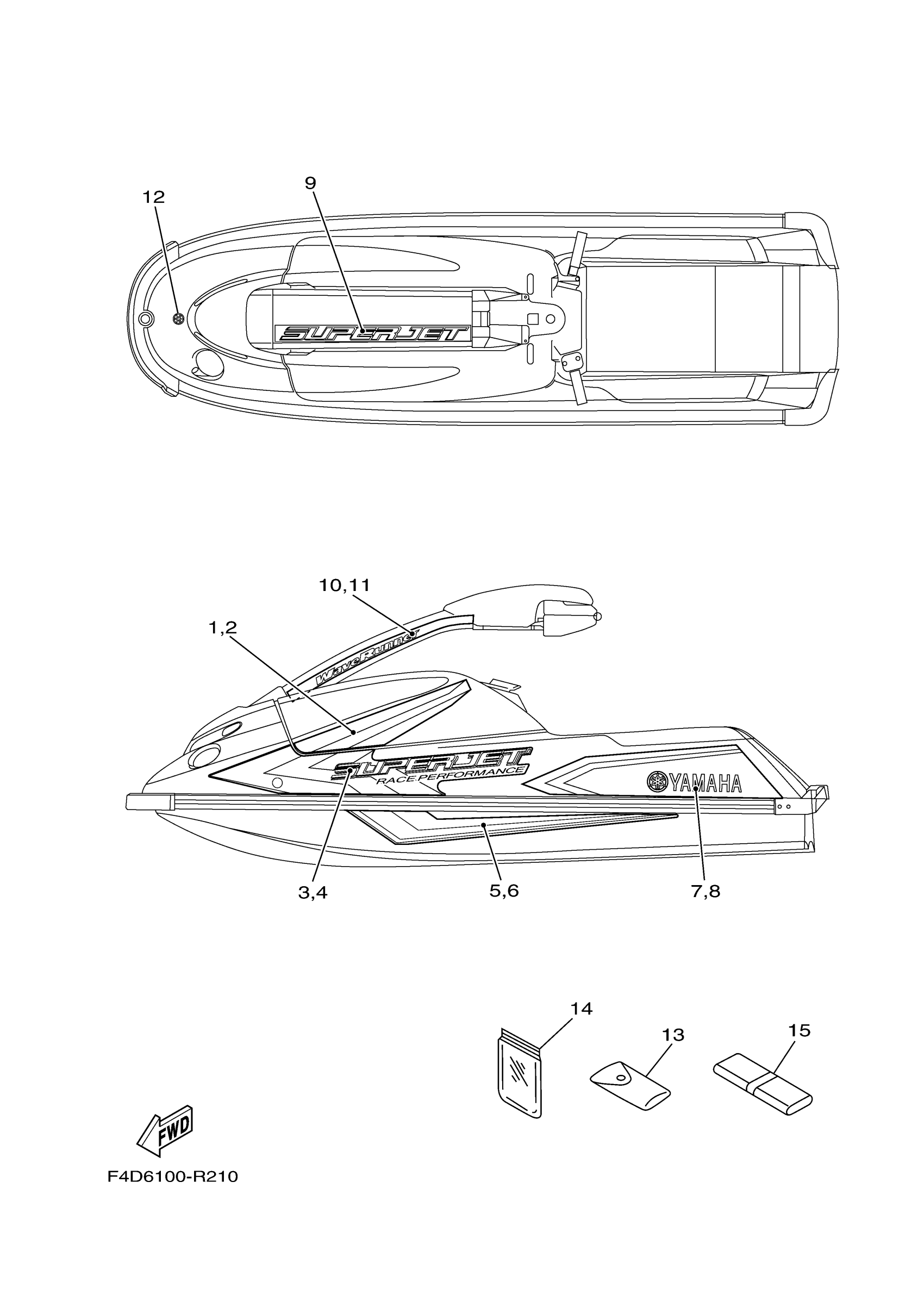

Find the part on the Graphics diagram for your 2016 Yamaha Super JET (SJ700BR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Yamaha Super JET (SJ700BR) Graphics Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRAPHIC 1 (LH)

F4D-6417B-20-00

1

$16.99

In stock

1

GRAPHIC 1 (LH)

F4D-6417B-40-00

1

$16.99

In stock

2

GRAPHIC 1 (RH)

F4D-6417B-30-00

1

$16.99

In stock

2

GRAPHIC 1 (RH)

F4D-6417B-50-00

1

$16.99

In stock

3

GRAPHIC 2 (LH)

F4D-6417C-20-00

1

$34.99

In stock

3

GRAPHIC 2 (LH)

F4D-6417C-40-00

1

$47.99

In stock

4

GRAPHIC 2 (RH)

F4D-6417C-30-00

1

$36.99

In stock

4

GRAPHIC 2 (RH)

F4D-6417C-50-00

1

$47.99

In stock

5

GRAPHIC 3 (LH)

F4D-6417D-20-00

1

$57.99

In stock

5

GRAPHIC 3 (LH)

F4D-6417D-40-00

1

$47.99

In stock

6

GRAPHIC 3 (RH)

F4D-6417D-30-00

1

$63.99

In stock

6

GRAPHIC 3 (RH)

F4D-6417D-50-00

1

$47.99

In stock

7

GRAPHIC 4 (LH)

F4D-6417E-20-00

1

$44.99

In stock

7

GRAPHIC 5

F4D-6417E-41-00

1
Out of stock

8

GRAPHIC 4 (RH)

F4D-6417E-30-00

1

$44.99

In stock

8

GRAPHIC 4 (RH)

F4D-6417E-50-00

1

$44.99

In stock

9

GRAPHIC 5

F4D-6417F-00-00

1

$26.99

In stock

9

GRAPHIC 5

F4D-6417F-10-00

1

$29.99

In stock

10

GRAPHIC 6 (LH)

F2F-6417G-80-00

1

$143.99

In stock

10

GRAPHIC 6 (LH)

F4D-6417G-40-00

1

$11.99

In stock

11

GRAPHIC 6 (RH)

F2F-6417G-90-00

1

$143.99

In stock

11

GRAPHIC 6 (RH)

F4D-6417G-50-00

1

$11.99

In stock

12

EMBLEM, TUNING FORK

GM6-6411H-00-00

1

$24.49

In stock

13

TOOL SET

EU0-65986-03-00

1

$37.49

In stock

14

BAG, VINYL

EU0-65901-03-00

1

$14.49

In stock

15

BAG

GM6-65987-02-00

1

$31.99

In stock
