2016 Yamaha Super JET (SJ700BR) Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2016 Yamaha Super JET (SJ700BR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

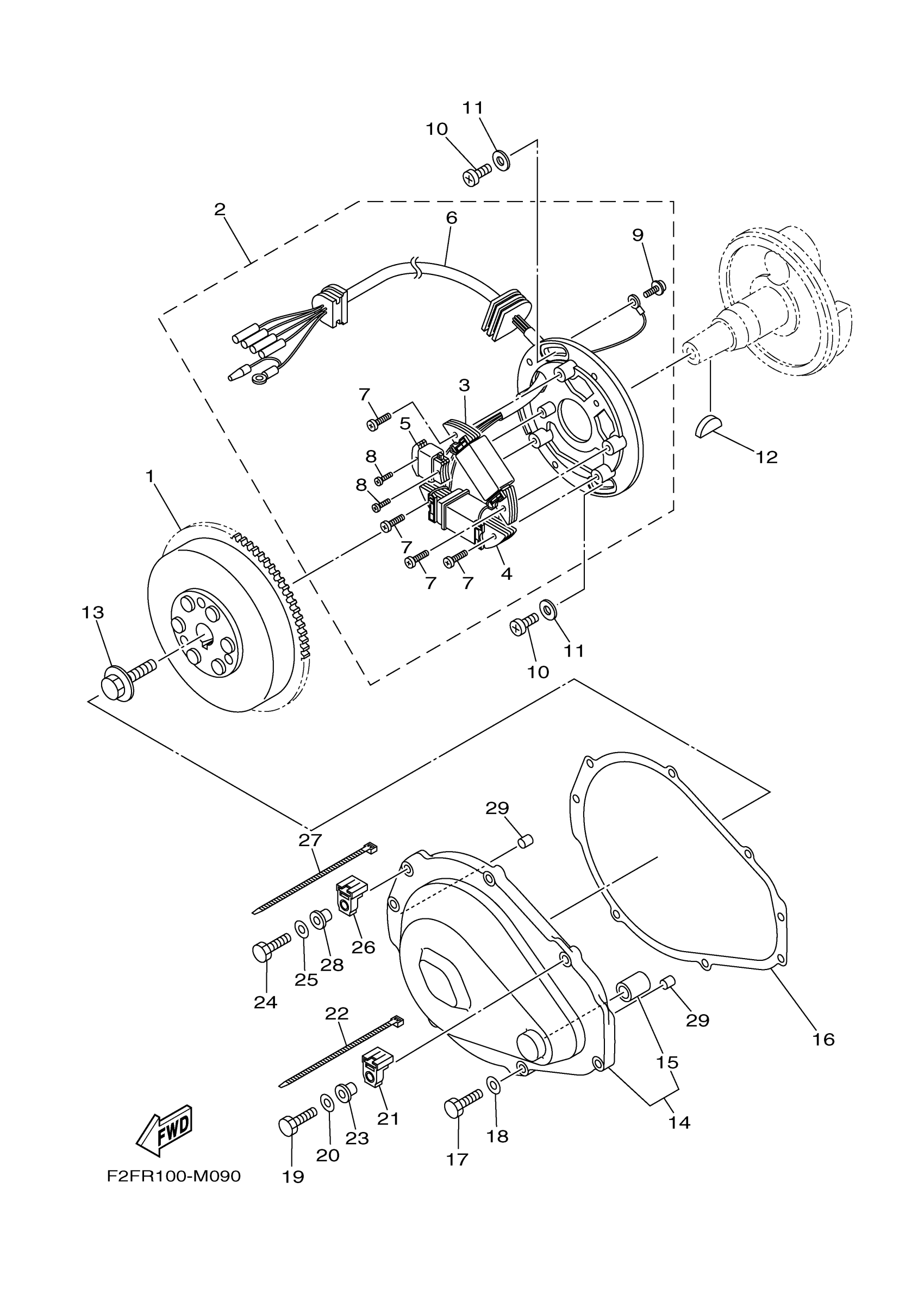

2016 Yamaha Super JET (SJ700BR) Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROTOR ASSY

62T-85550-01-00

1
Out of stock

2

BASE ASSY

6R8-85560-11-00

1
Out of stock

3

COIL, CHARGE

62T-85520-01-00

1

$160.99

In stock

4

. COIL, LIGHTING

62T-85533-00-00

1

$172.99

In stock

5

. COIL, PULSER

6M6-85580-00-00

1

$171.99

In stock

6

LEAD WIRE ASY

6R8-85515-10-00

1
Out of stock

7

. SCREW, WITH WASHER

97902-05125-00

1

$3.84

In stock

8

. SCREW, WITH WASHER

97902-04122-00

1

$6.46

In stock

9

SCREW, PAN HEAD (713)

98580-04008-00

1

$4.54

In stock

10

SCREW, PAN HEAD

98580-06016-00

1

$2.90

In stock

11

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

12

KEY, WOODRUFF

90280-05001-00

1

$10.68

In stock

13

BOLT

90109-10M44-00

1

$21.37

In stock

14

COVER, FLYWHEEL

6M6-81337-00-8S

1

$144.49

In stock

15

. BUSH, SOLID

90380-12M29-00

1
Out of stock

16

. GASKET, HOLE COVER

6M6-81365-A0-00

1

$33.40

In stock

17

BOLT

90101-06M27-00

1

$2.90

In stock

18

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

19

BOLT(J52)

97080-06035-00

—

$4.49

In stock

20

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

21

BRACKET

6AA-85542-00-00

1

$2.31

In stock

22

CLAMP

90465-13M97-00

1

$3.46

In stock

23

COLLAR

90387-06M05-00

1

$7.12

In stock

24

BOLT(J52)

97080-06035-00

—

$4.49

In stock

25

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

26

BRACKET

6AA-85542-00-00

1

$2.31

In stock

27

CLAMP

90465-13M97-00

1

$3.46

In stock

28

COLLAR

90387-06M05-00

1

$7.12

In stock

29

PIN, DOWEL (614)

93606-12019-00

—
Out of stock
