2016 Yamaha Super JET (SJ700BR) Engine Hatch Diagram

← All diagrams

Find the part on the Engine Hatch diagram for your 2016 Yamaha Super JET (SJ700BR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

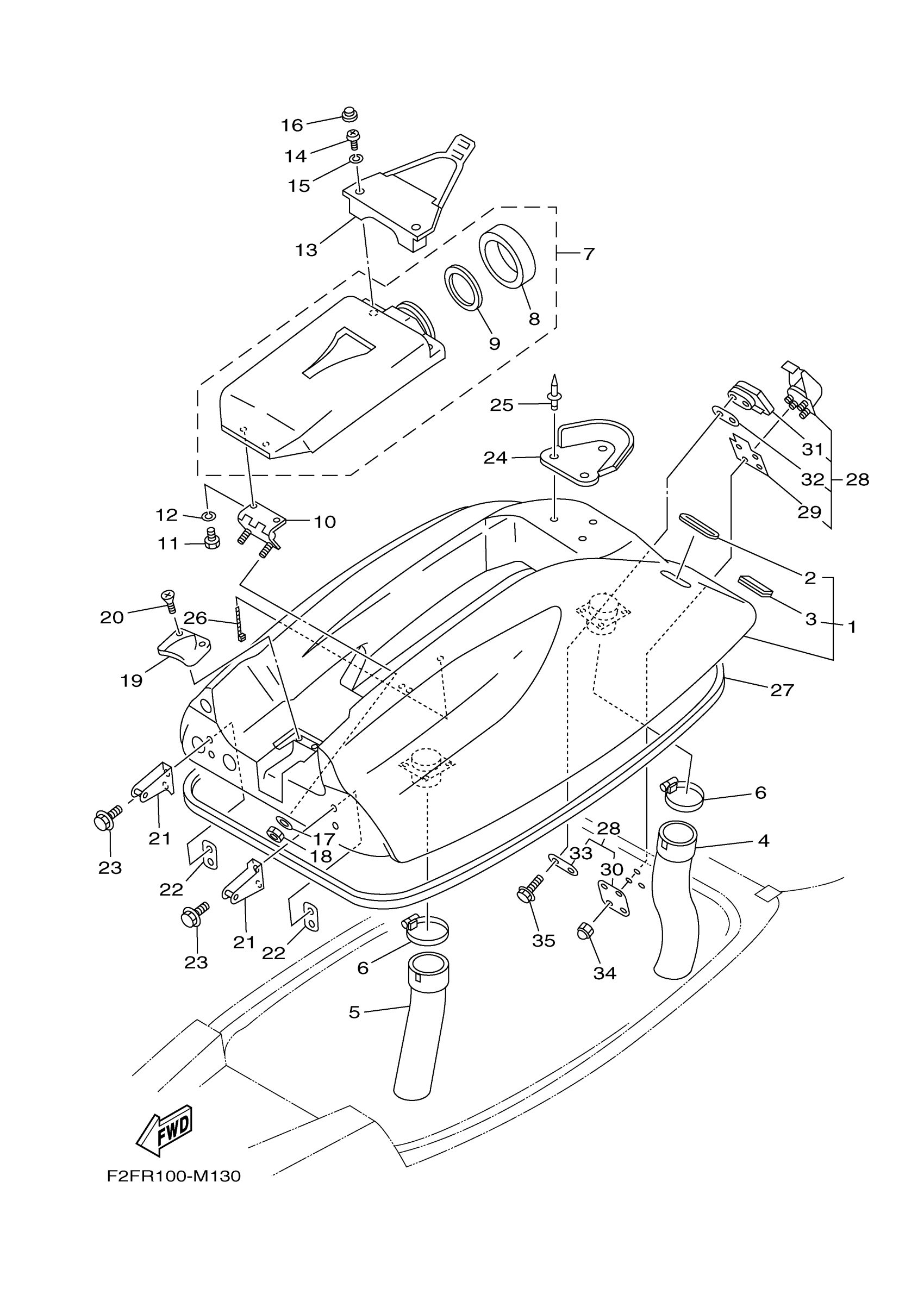

2016 Yamaha Super JET (SJ700BR) Engine Hatch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ENGINE HATCH COMP.

F4D-6516A-00-P1

1

$1,985.49

In stock

2

. TRIM,HATCH 2

FX1-65116-10-00

1

$3.95

In stock

3

. TRIM 1

GM6-6516C-00-00

1

$3.69

In stock

4

HOSE,VENTILATOR 1

GM6-6213F-00-00

1

$119.98

In stock

5

HOSE, VENTILATOR 2

EW2-62137-00-00

1

$48.49

In stock

6

1

$15.89

In stock

7

CASE ASSY 1

F2F-6591A-00-00

1

$92.49

In stock

8

. CAP, CASE

EW2-65912-00-00

1

$23.99

In stock

9

. PACKING, CASE

EW2-65913-00-00

1

$6.00

In stock

10

HINGE, LID

FX1-6517D-00-00

1
Out of stock

11

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

1

$1.35

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

BAND,CASE

FX1-6591K-00-00

1

$103.49

In stock

14

SCREW, PAN HEAD

98580-06016-00

1

$2.90

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

CAP

FX1-6514F-00-00

1

$10.49

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

NUT, SELF-LOCKING

95720-06300-00

1

$1.85

In stock

19

PLATE, HATCH (FL1)

A00-62858-02-00

1

$9.22

In stock

20

—

$1.82

In stock

21

STOPPER HATCH 2

GM6-65136-00-00

1

$24.99

In stock

22

PLATE, STOPPER HATCH 2

EW2-65137-00-00

1

$18.49

In stock

23

BOLT, WITH WASHER

90119-06900-00

1

$4.15

In stock

24

DAMPER, POLE

FX1-6514B-00-00

1

$105.99

In stock

25

RIVET (EU0)

90267-48938-00

1

$5.08

In stock

26

CLAMP

90464-20258-00

—

$4.38

In stock

27

PACKING

GM6-62664-01-00

1

$170.62

In stock

28

HATCH LOCK ASSY

EW2-62840-11-00

1
Out of stock

29

. PACKING, HATCH LOCK

EW2-62845-10-00

1

$6.92

In stock

30

. PLATE, HATCH LOCK

EW2-62846-00-00

1

$5.54

In stock

31

. HOOK, HATCH LOCK

EW2-62843-00-00

1

$23.99

In stock

32

. PACKING, HOOK

EW2-62847-00-00

1

$4.62

In stock

33

. PLATE, HOOK

EW2-62848-00-00

1

$4.62

In stock

34

NUT, FLANGE

95720-05300-00

1

$1.38

In stock

35

BOLT WITH WASHER (EW2)

90119-05923-00

—

$7.26

In stock
