2016 Yamaha Super JET (SJ700BR) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 2016 Yamaha Super JET (SJ700BR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

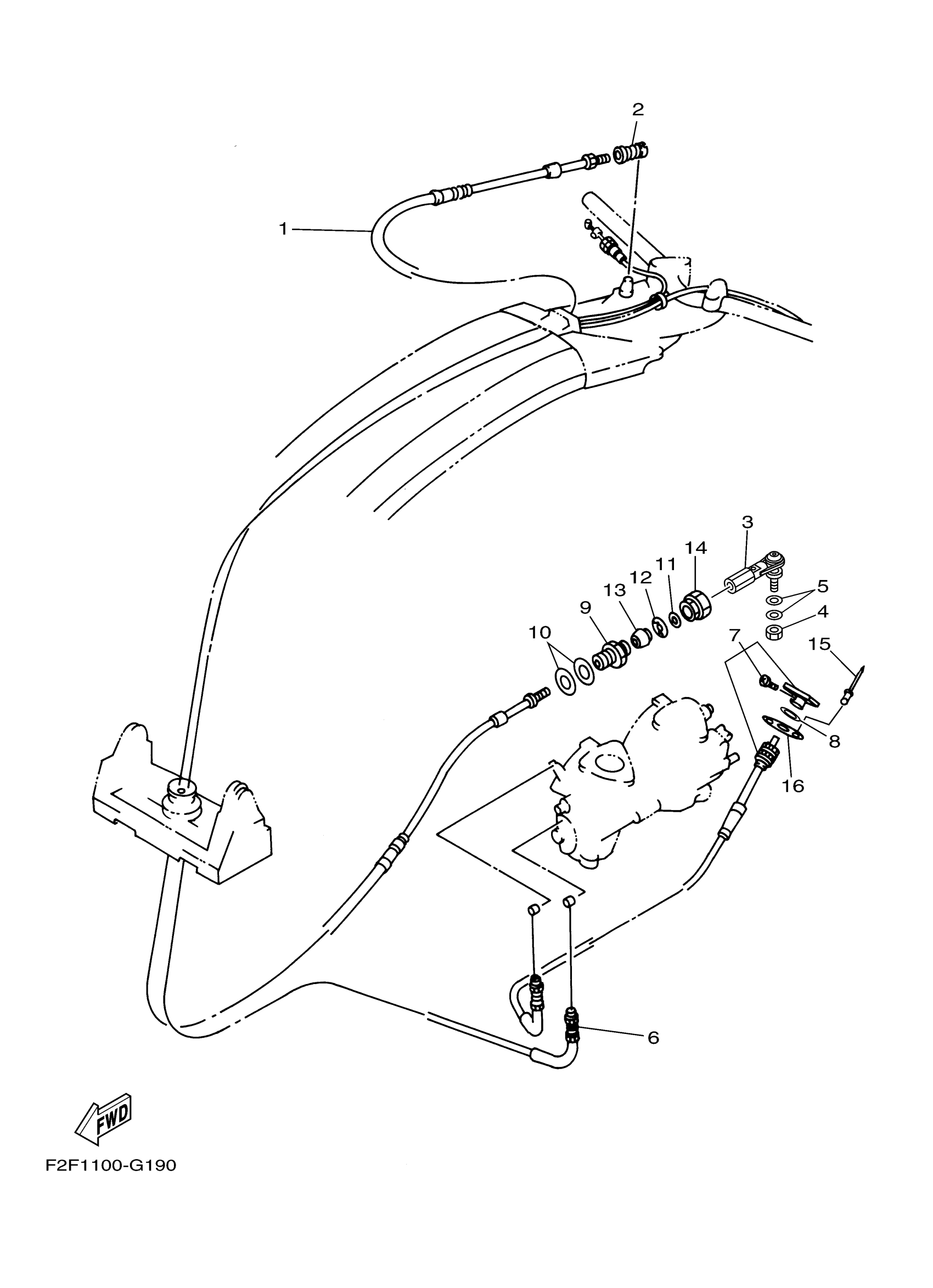

2016 Yamaha Super JET (SJ700BR) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

F2F-61481-00-00

1

$197.99

In stock

2

SHAFT,JOINT BALL

EU0-61461-30-00

1

$45.13

In stock

3

STUD, JOINT BALL

F2F-61461-00-00

1

$109.99

In stock

4

NUT(650)

95380-06700-00

1

$6.17

In stock

5

WASHER, PLATE

90201-06906-00

1

$3.23

In stock

6

CABLE, THROTTLE

GM6-67252-00-00

1

$115.23

In stock

7

CABLE, CHOKE

GM6-67242-00-00

1

$120.99

In stock

8

WASHER, PLATE

90201-11008-00

1

$5.69

In stock

9

BODY,CABLE CONNECTOR

EU0-61436-00-00

1

$9.22

In stock

10

. PACKING (C)

EU0-61438-00-00

1

$8.45

In stock

11

. WASHER 30

EU0-61446-00-00

1

$4.62

In stock

12

. STOPPER

EU0-61486-00-00

1

$5.93

In stock

13

. SEAL, PIPE 30

EU0-61435-00-00

1

$8.70

In stock

14

. CAP

EU0-62694-00-00

1

$14.49

In stock

15

RIVET, BLIND(FX1)

90267-40945-00

—

$6.32

In stock

16

WASHER(FX1)

90209-12920-00

—

$19.25

In stock
