2015 Yamaha Super Jet (SJ700BP) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 2015 Yamaha Super Jet (SJ700BP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

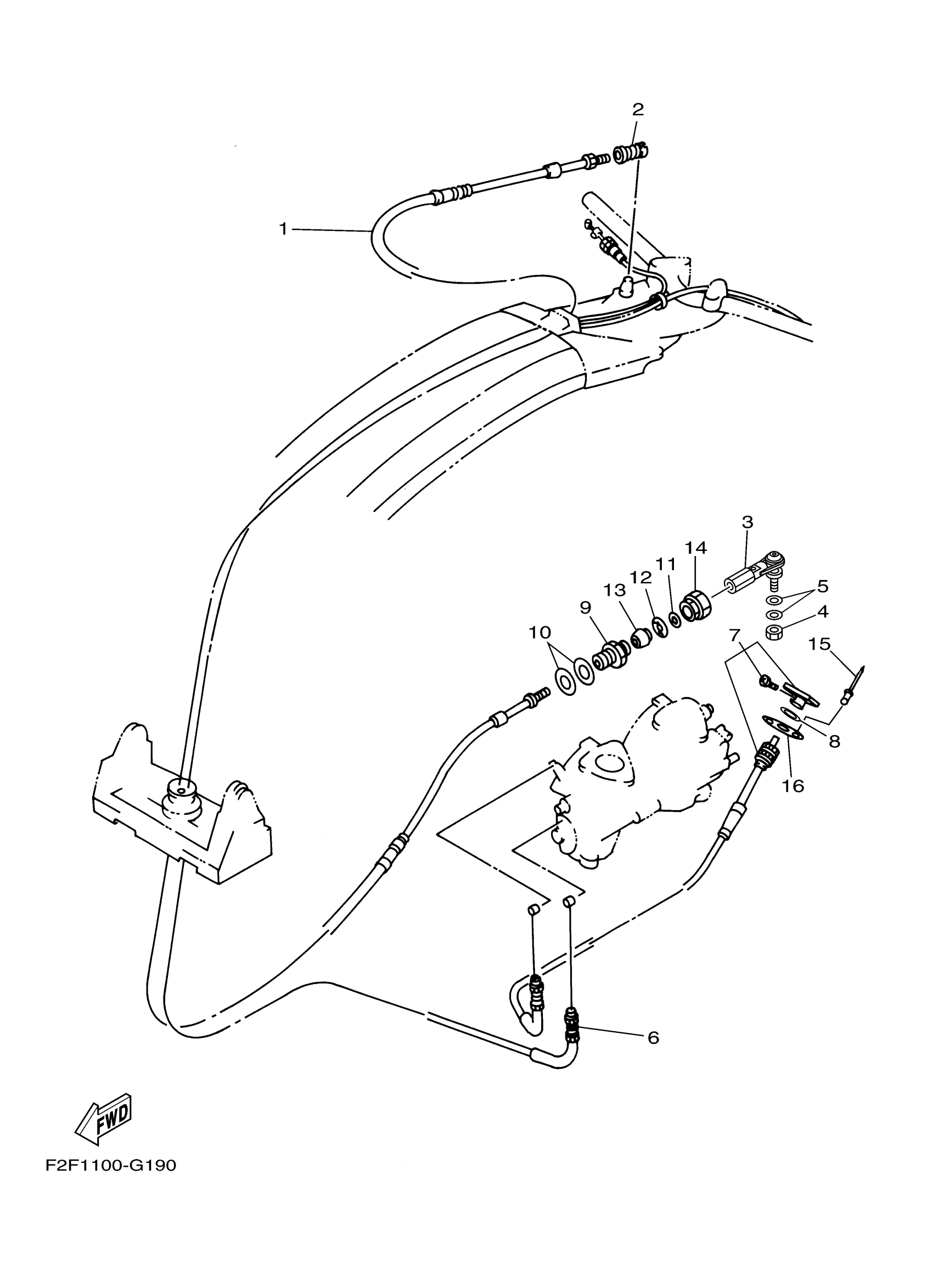

2015 Yamaha Super Jet (SJ700BP) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

F2F-61481-00-00

1
Out of stock

2

SHAFT,JOINT BALL

EU0-61461-30-00

1
Out of stock

3

STUD, JOINT BALL

F2F-61461-00-00

1
Out of stock

4

NUT(650)

95380-06700-00

1
Out of stock

5

WASHER, PLATE

90201-06906-00

1
Out of stock

6

CABLE, THROTTLE

GM6-67252-00-00

1
Out of stock

7

CABLE, CHOKE

GM6-67242-00-00

1
Out of stock

8

WASHER, PLATE

90201-11008-00

1
Out of stock

9

BODY,CABLE CONNECTOR

EU0-61436-00-00

1
Out of stock

10

. PACKING (C)

EU0-61438-00-00

1
Out of stock

11

. WASHER 30

EU0-61446-00-00

1
Out of stock

12

. STOPPER

EU0-61486-00-00

1
Out of stock

13

. SEAL, PIPE 30

EU0-61435-00-00

1
Out of stock

14

. CAP

EU0-62694-00-00

1
Out of stock

15

RIVET, BLIND(FX1)

90267-40945-00

—
Out of stock

16

WASHER(FX1)

90209-12920-00

—
Out of stock
