2013 Yamaha Super Jet (SJ700BM) Intake Diagram

← All diagrams

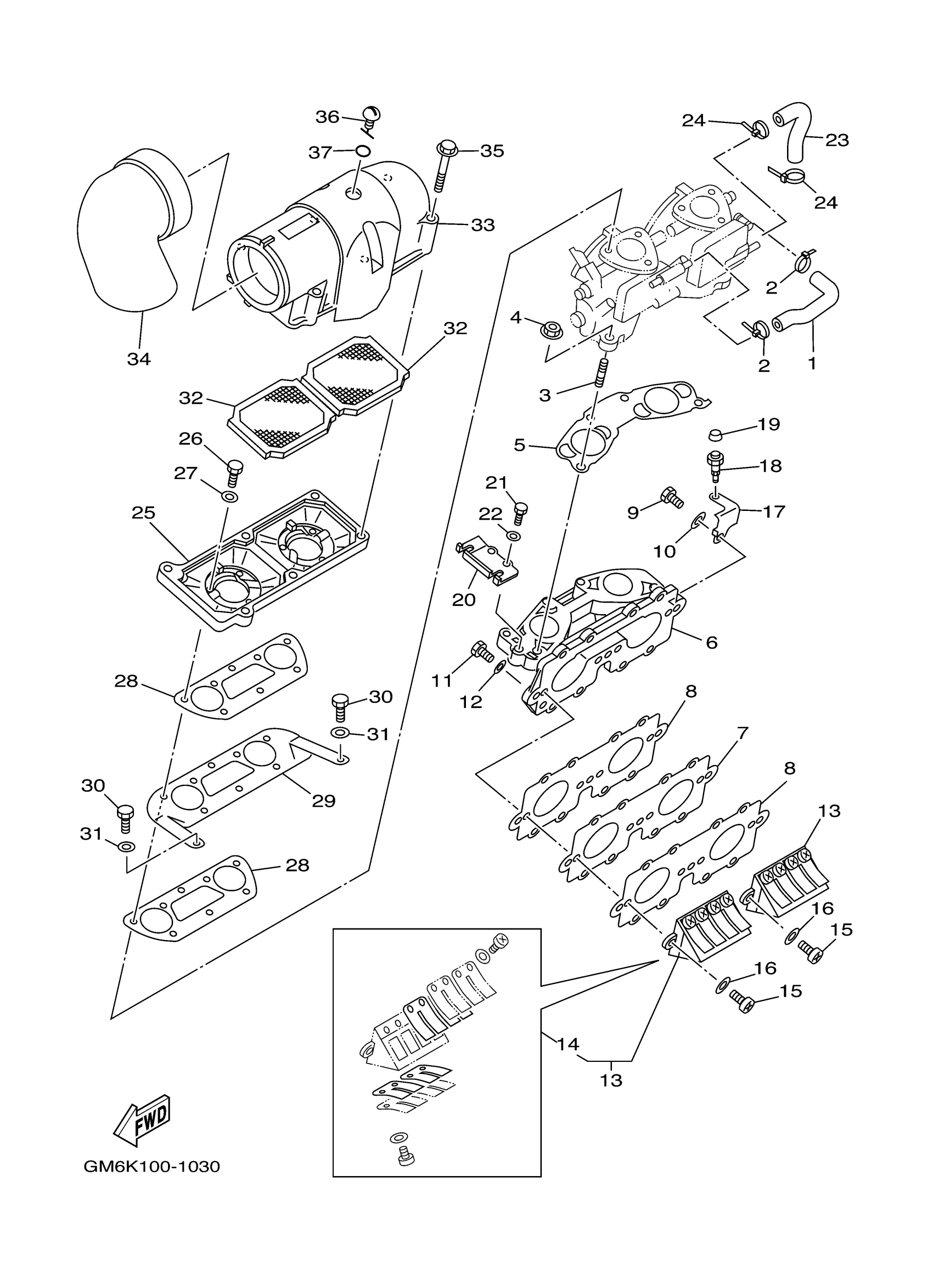

Find the part on the Intake diagram for your 2013 Yamaha Super Jet (SJ700BM), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2013 Yamaha Super Jet (SJ700BM) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, FUEL 1

6BA-24311-00-00

1
Out of stock

2

CLAMP

90464-36005-00

1
Out of stock

3

BOLT, STUD

90116-08M60-00

1
Out of stock

4

NUT

90179-08M15-00

1
Out of stock

5

. GASKET, MANIFOLD

62T-13556-00-00

1
Out of stock

6

MANIFOLD, INTAKE

62T-13555-00-00

1
Out of stock

7

. PLATE,REED VALVE

62T-13624-00-00

1
Out of stock

8

. GASKET

62T-13566-00-00

1
Out of stock

9

BOLT(3RV)

97014-06035-00

1
Out of stock

10

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

11

BOLT(62Y)

97013-06025-00

1
Out of stock

12

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

13

REED VALVE ASSY

62T-13610-00-00

1
Out of stock

14

. REED SET

62T-W0004-00-00

1
Out of stock

15

SCREW, PAN HEAD(6B0)

97885-05016-00

1
Out of stock

16

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

17

PLATE

62T-14243-01-00

1
Out of stock

18

NIPPLE, GREASE

61L-5169A-00-00

1
Out of stock

19

CAP, GREASE NIPPLE

663-45119-01-00

—
Out of stock

20

PLATE

62T-14527-02-00

1
Out of stock

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—
Out of stock

22

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

23

PIPE 4

62T-24314-01-00

1
Out of stock

24

CLAMP

90464-36005-00

1
Out of stock

25

COVER, CARBURETOR 2

62T-14284-10-8S

1
Out of stock

26

BOLT(62Y)

97013-06020-00

—
Out of stock

27

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

28

. GASKET, AIR COOLER COVER 1

62T-13674-00-00

1
Out of stock

29

PLATE

62T-14255-00-00

1
Out of stock

30

BOLT (661)

97013-06012-00

—
Out of stock

31

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

32

ELEMENT, AIR CLEANER

62T-14451-00-00

1
Out of stock

33

COVER, CARBURETOR 1

62T-14283-01-00

1
Out of stock

34

PIPE

62T-14419-00-00

1
Out of stock

35

BOLT, WITH WASHER

90119-05M02-00

1
Out of stock

36

GROMMET

62T-14435-00-00

1
Out of stock

37

. O-RING

93210-13M63-00

1
Out of stock
