2007 Yamaha Superjet (SJ700BF) Graphics Diagram

← All diagrams

Find the part on the Graphics diagram for your 2007 Yamaha Superjet (SJ700BF), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

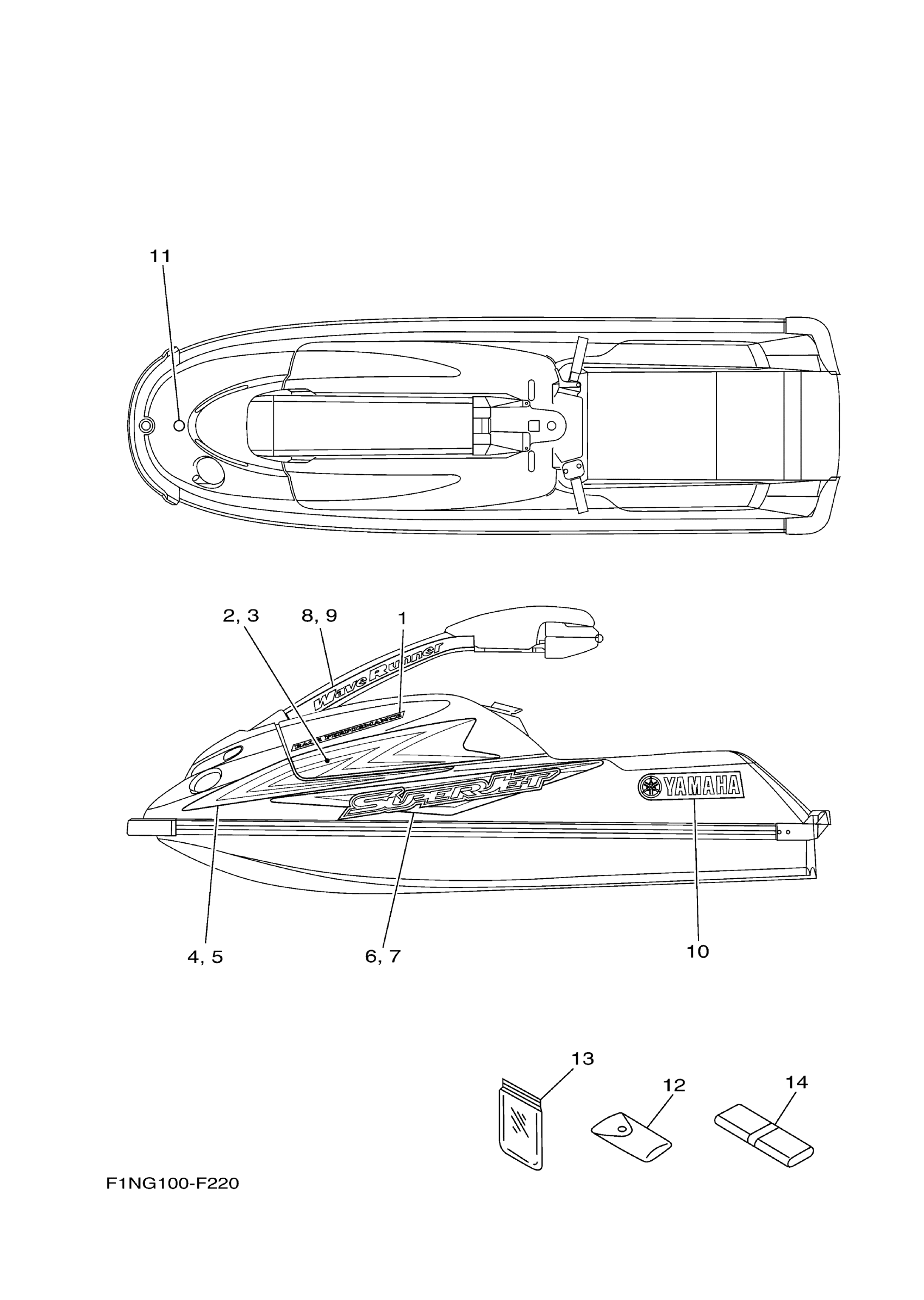

2007 Yamaha Superjet (SJ700BF) Graphics Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRAPHIC 1

F1N-6417B-20-00

1

$81.99

In stock

2

GRAPHIC 2

F1N-6417C-50-00

1
Out of stock

3

GRAPHIC 2

F1N-6417C-60-00

1

$135.99

In stock

4

GRAPHIC 3

F1N-6417D-50-00

1

$135.99

In stock

5

GRAPHIC 3

F1N-6417D-60-00

1

$135.99

In stock

6

GRAPHIC 4

F1N-6417E-50-00

1

$153.99

In stock

7

GRAPHIC 4

F1N-6417E-60-00

1

$153.99

In stock

8

GRAPHIC 5

F1N-6417F-50-00

1

$62.99

In stock

9

GRAPHIC 5

F1N-6417F-60-00

1

$62.99

In stock

10

MARK, YAMAHA A

F1N-64114-10-00

1
Out of stock

11

EMBLEM, TUNING FORK

GM6-6411H-00-00

1

$24.49

In stock

12

TOOL SET

EU0-65986-13-00

1
Out of stock

13

BAG, VINYL

EU0-65901-03-00

1

$14.49

In stock

14

BAG

GM6-65987-02-00

1

$31.99

In stock
