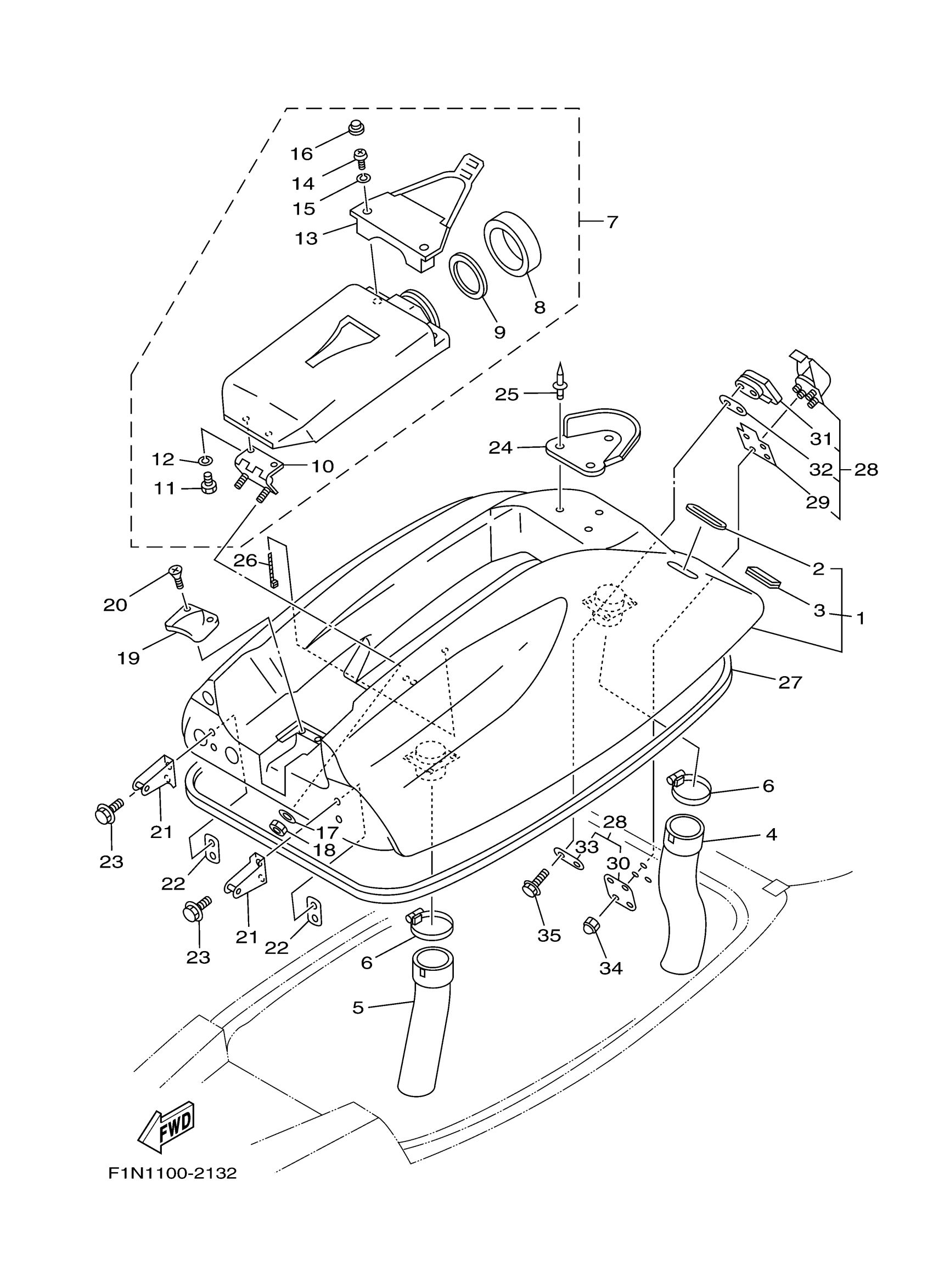

Yamaha SJ700BE (SuperJet) F1ND 2006 ENGINE HATCH Diagram

#

Description
Price

1

ENGINE HATCH COMP. (YAMAHA BLACK) (BLACK COAT 1)

GM6-6516A-10-33

$1,670.57

2

. TRIM,HATCH 2

FX1-65116-10-00

$3.79

3

. TRIM 1

GM6-6516C-00-00

$3.53

4

HOSE,VENTILATOR 1

GM6-6213F-00-00

$114.69

5

HOSE, VENTILATOR 2

EW2-62137-00-00

Unavailable

6

BAND, HOSE 68 (FJ0)(TAIWAN)

90601-16875-00

$15.19

7

CASE,ASSY 1

FX1-6591A-10-00

Unavailable

8

. CAP, CASE

EW2-65912-00-00

$18.23

9

. PACKING, CASE

EW2-65913-00-00

$5.74

10

HINGE, LID

FX1-6517D-00-00

Unavailable

11

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.29

12

WASHER, SPRING

92995-06100-00

$2.87

13

BAND,CASE

FX1-6591K-00-00

$99.99

14

SCREW, PAN HEAD

98580-06016-00

$2.78

15

WASHER, SPRING

92995-06100-00

$2.87

16

CAP

FX1-6514F-00-00

$10.28

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

NUT, SELF-LOCKING

95720-06300-00

$1.76

19

PLATE, HATCH (FL1)

A00-62858-02-00

$8.81

20

YBS81-516 SCREW,O.HEAD TAPPING

97780-50316-00

Unavailable

21

STOPPER HATCH 2

GM6-65136-00-00

$24.25

22

PLATE, STOPPER HATCH 2

EW2-65137-00-00

$14.05

23

BOLT, WITH WASHER

90119-06900-00

$3.97

24

DAMPER, POLE

FX1-6514B-00-00

$101.46

25

RIVET (EU0)

90267-48938-00

$4.85

26

CLAMP

90464-20258-00

Unavailable

27

PACKING

GM6-62664-01-00

$163.72

28

HATCH LOCK ASSY

EW2-62840-11-00

Unavailable

29

. PACKING, HATCH LOCK

EW2-62845-10-00

$6.62

30

. PLATE, HATCH LOCK

EW2-62846-00-00

$5.29

31

. HOOK, HATCH LOCK

EW2-62843-00-00

$23.51

32

. PACKING, HOOK

EW2-62847-00-00

$4.41

33

. PLATE, HOOK

EW2-62848-00-00

$4.41

34

NUT, FLANGE

95720-05300-00

$1.32

35

BOLT WITH WASHER (EW2)

90119-05923-00

Unavailable
