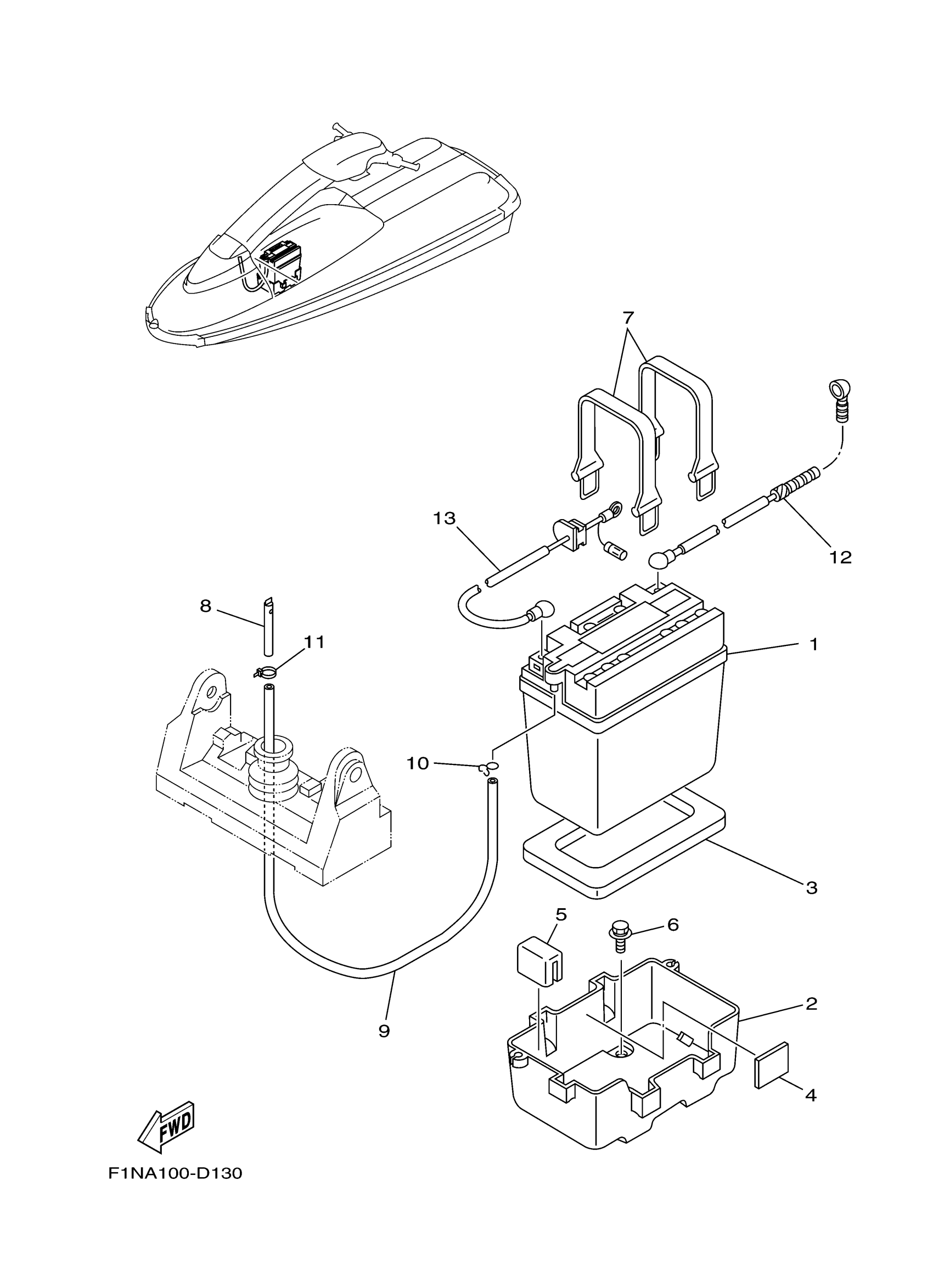

Yamaha SJ700BD (SuperJet) F1NA 2005 ELECTRICAL 2 Diagram

#

Description
Price

1

BATTERY ASSY (YB16CL-B)

BTY-YB16C-00-00

Unavailable

2

CASE, BATTERY

EW2-68211-00-00

$38.49

3

PAD, BATTERY 1

EU0-68221-00-00

$31.80

4

PAD, BATTERY 2

EU0-68221-30-00

$46.95

5

PAD, BATTERY

EW2-68221-00-00

$14.38

6

BOLT WITH WASHER (EW2)

90119-06920-00

$4.55

7

BAND,BATTERY

EU0-68218-04-00

$45.44

8

PIPE, VENTILATION 1

EW2-62149-00-00

$7.27

9

HOSE

90699-50085-00

$24.98

10

CLIP

90467-08M10-00

Unavailable

11

CLAMP

90465-10098-00

$1.68

12

WIRE, LEAD

64V-82117-00-00

$68.69

13

WIRE, LEAD

6R7-82117-11-00

$71.09
