2005 Yamaha Superjet (SJ700BD) Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 2005 Yamaha Superjet (SJ700BD), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

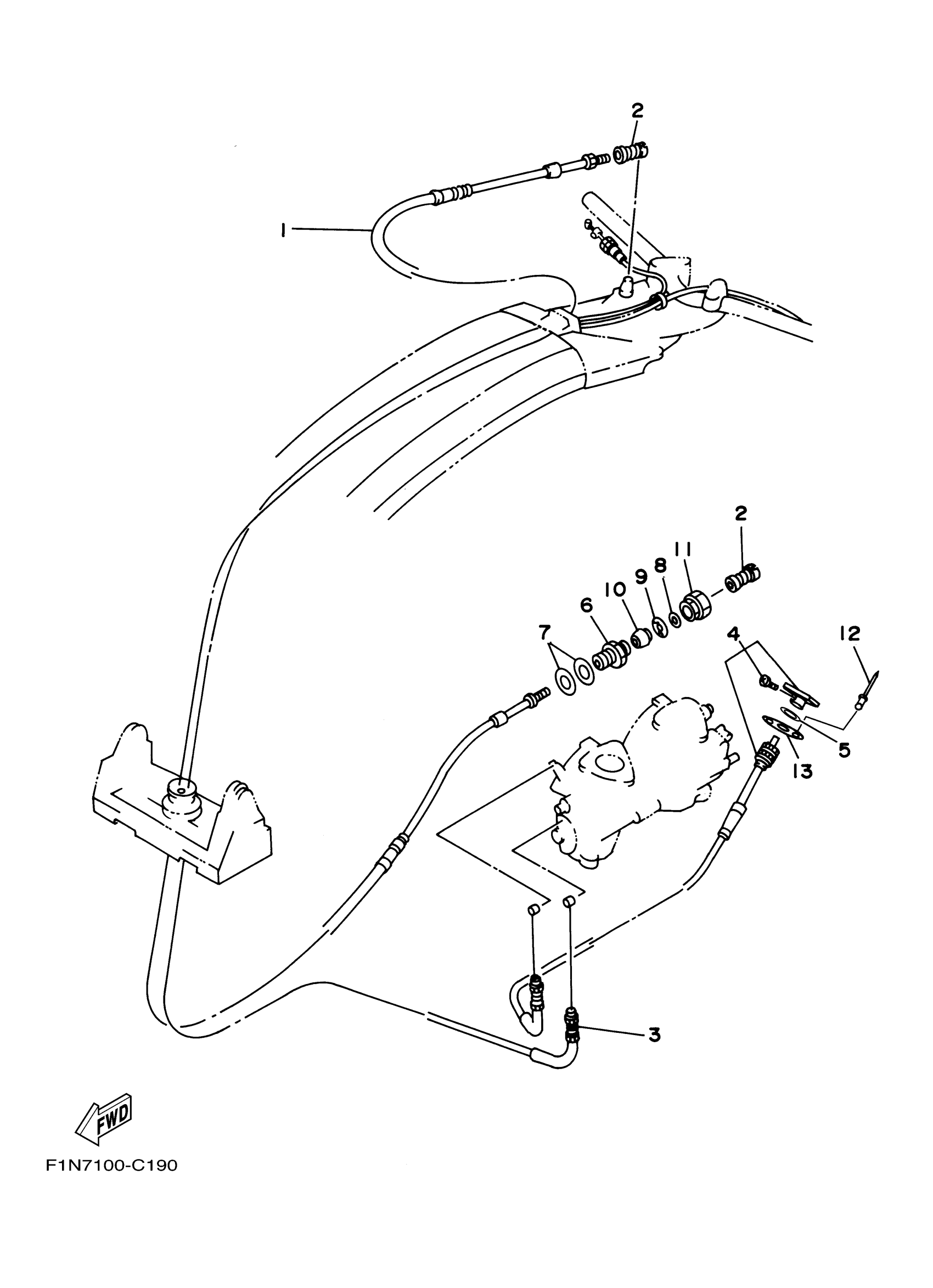

2005 Yamaha Superjet (SJ700BD) Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE, STEERING

GM6-61481-00-00

1

$159.58

In stock

2

SHAFT,JOINT BALL

EU0-61461-30-00

1

$45.13

In stock

3

CABLE, THROTTLE

GM6-67252-00-00

1

$115.23

In stock

4

CABLE, CHOKE

GM6-67242-00-00

1

$120.99

In stock

5

WASHER, PLATE

90201-11008-00

1

$5.69

In stock

6

BODY,CABLE CONNECTOR

EU0-61436-00-00

1

$9.22

In stock

7

. PACKING (C)

EU0-61438-00-00

1

$8.45

In stock

8

. WASHER 30

EU0-61446-00-00

1

$4.62

In stock

9

. STOPPER

EU0-61486-00-00

1

$5.93

In stock

10

. SEAL, PIPE 30

EU0-61435-00-00

1

$8.70

In stock

11

. CAP

EU0-62694-00-00

1

$14.49

In stock

12

RIVET, BLIND(FX1)

90267-40945-00

—

$6.32

In stock

13

WASHER(FX1)

90209-12920-00

—

$19.25

In stock
