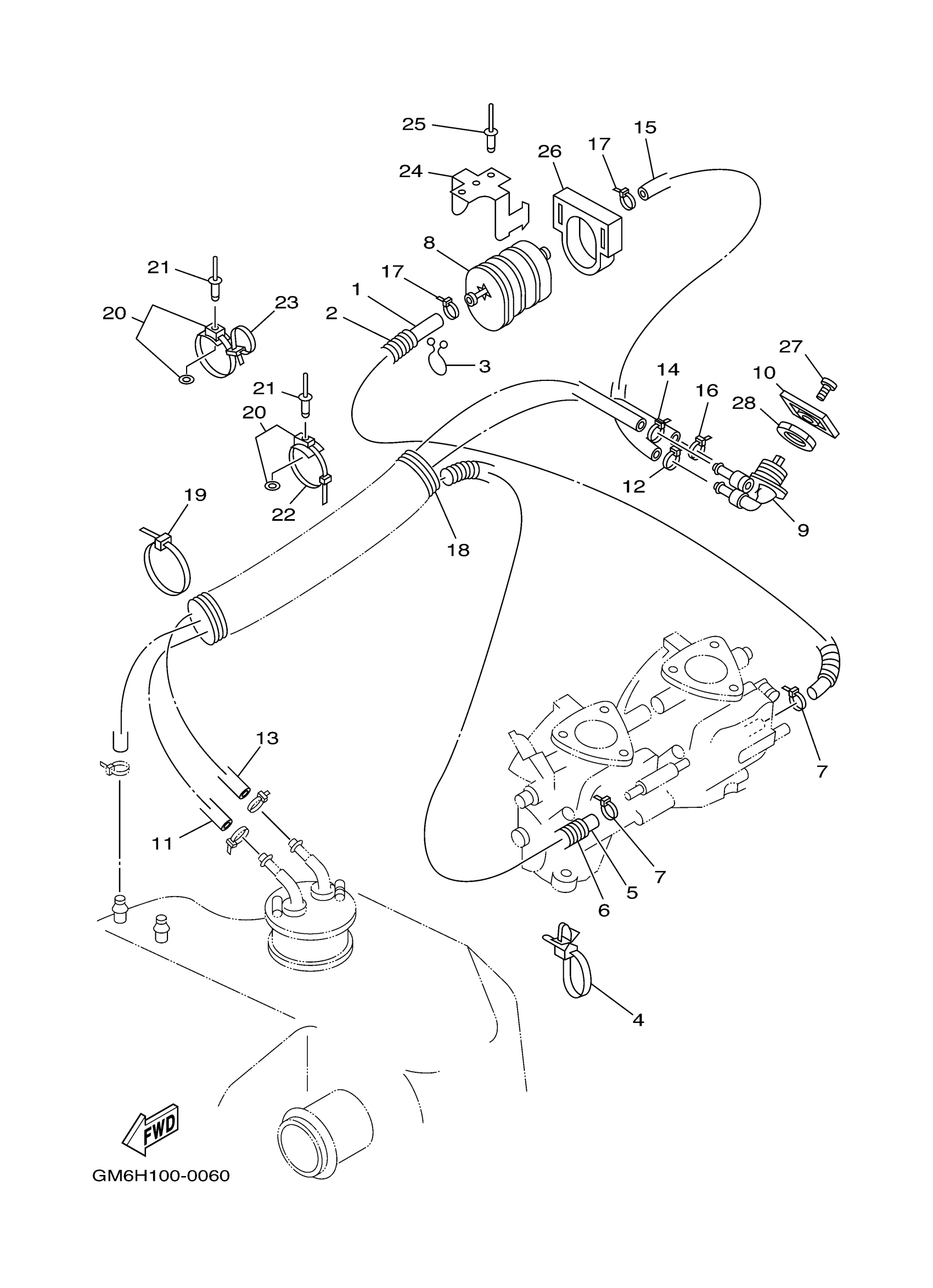

Yamaha SJ700BB (SUPER JET) F1N4 2003 FUEL Diagram

#

Description
Price

1

HOSE (L400)

90445-10M43-00

$5.96

2

TUBE

EU0-67731-00-00

Unavailable

3

CLAMP

90465-18147-00

$5.39

4

CLAMP(62T)

90465-12M56-00

$6.64

5

HOSE (L1700)

90445-10M87-00

Unavailable

6

HOSE(64U)

90446-14M64-00

Unavailable

7

CLAMP

90465-10098-00

$1.68

8

FILTER ASSY

6K8-24560-21-00

$28.64

9

FUEL COCK ASSY 1

6K8-24500-03-00

Unavailable

10

LEVER, COCK

6R7-24524-00-00

$7.03

11

HOSE (L1040)

90445-10MA9-00

$56.27

12

CLAMP

90465-10098-00

$1.68

13

HOSE (L1040)

90445-10MA9-00

$56.27

14

CLAMP

90465-10098-00

$1.68

15

HOSE (L400)

90445-10M43-00

$5.96

16

CLAMP

90465-10098-00

$1.68

17

CLAMP

90465-10098-00

$1.68

18

TUBE,2

GM6-6773E-00-00

$11.35

19

BAND (EU0)

90601-20009-00

$6.36

20

CLAMP COMP (EU0)

90600-91736-00

Unavailable

21

RIVET, BLIND

90267-48802-00

$1.98

22

BAND (EU0)

90601-20009-00

$6.36

23

NYLON CLIP 1(GD0)

90601-20016-00

Unavailable

24

BRACKET, FUEL FILTER

FN8-67816-00-00

$16.99

25

RIVET, BLIND

90267-48802-00

$1.98

26

HOLDER

EU0-67817-00-00

$13.33

27

SCREW, BIND

98980-04008-00

$3.05

28

NUT, HEXAGON (1E6)

90170-22187-00

Unavailable
